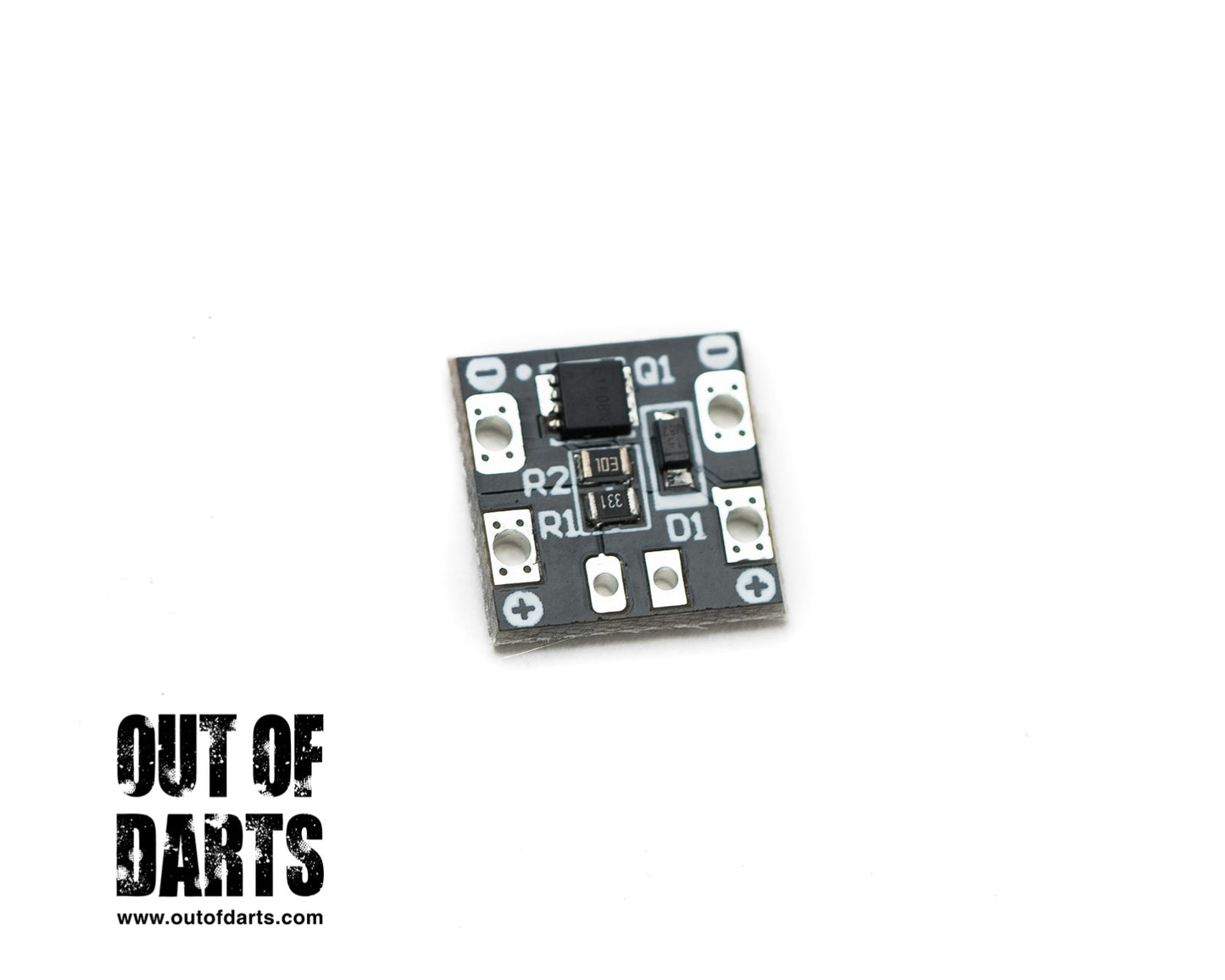

Value MOSFET Mini Board
Value MOSFET Mini Board
The Out of Darts Value MOSFET board offers a lot of bang for your buck!
*This Product is not compatible with PWM boards.
*A note about motor and MOSFET ratings; Our community often overestimates motor current ratings, as many of these are done on paper. Stall current is extremely brief. Because of this, we have rated each of these MOSFET products by the number of motors they can support. We warranty them for this use, rather than giving specific ratings.
FEATURES:
• Designed by Out of Darts
• For use in all build types
• Compatible with all cages I sell
• Compatible with Jupiter
SPECS:
• Rated for any pair (2) of 130-sized motors we sell.
• Heavier 2oz copper
• XT-60 solder on connector for easier swapping of cages, wheels, etc.
• Dimensions: 13 x 13MM
ADDITIONAL LINKS:
• Optional switch terminal wiring (allows for plug on board connection)
Share
Value MOSFET Mini Board
It’s super tiny, and it does what it says.
It's smaller than a dime! You can cram this in anywhere. You can short it by wiring wrong. Connect battery and motor as marked. Only connect the positive switch signal on the Motor side. NEVER CONNECT A SWITCH SIGNAL ON THE BATTERY SIDE! It will blow the board. Positive into the switch, positive out of the switch to the Value MOSFET on the side pad closest to Motor connection. That's it
Converted my son's rival gun to a 4s lipo, velocity is insane, it leaves drywall marks :)
Stalled out the motors with a jammed dart and blew up the MOSFET. Glad that this was the failure point though.
