Stryfe 2s Performance Mod Kit
Stryfe 2s Performance Mod Kit
The Stryfe Performance Mod Kit includes all the parts you'll need to modify your Stryfe.
Battery, charger, and LiPo alarm are strongly recommended; we have a LiPo Starter Kit available that will be linked down below. Compatible LiPo batteries will also be linked down below. LiPo Batteries can only be shipped by ground to the continental USA. All packages containing LiPo Batteries have longer delivery times. For more information visit our FAQ page.
Switch mounting plate offers a convenient way to mount your rev switch inside the blaster. Simply glue this in place and you're good to go!
Please note: This kit does not include the Stryfe Battery Cover but there is a link down below if you would like to add one to your order.
• Easy mounting of your rev trigger with our custom switch plate
• Simply glue in place with minimal interior shell trimming required
• Just add a LiPo, alarm and charger and you're good to go!
FPS RATINGS / STANDARD DEVIATION / DART TYPE
• 39mm - 162 / 5 / AF Pro Short
• 39mm - 180 / 6 / AF Pro Full Length
• 40mm - 155 / 3.8 / AF Pro Short
• 40mm - 177 / 4.7 / AF Pro Full Length
• 41mm - 143 / 2 / AF Pro Short
• 41mm - 182 / 3 / AF Pro Full Length
• 42mm - 111 / 4.9 / AF Pro Short
• 42mm - 155 / 8.1 / AF Pro Full Length
• 2x - Fang ReVAMPed 130 2s Neo Motors
• 1x - Daybreak Flywheels
• 1x - 3D Daybreak Cage
• 1x - 21A Genuine Omron Microswitch
• 1x - Stryfe Switch Mounting Plate
• 1x - 16AWG Red/Black silicone hobby wire
• 1x - XT-60 Nylon Connector Pair
• 1x - Precut small heat shrink
• 2x - Precut large heat shrink
• 2x - 3D Printed Motor Cage Spacers
• 4x - Flywheel cage screws
• Graphene 2s 950mAh LiPo
• LiPo Starter Pack
• Stryfe Battery Cover

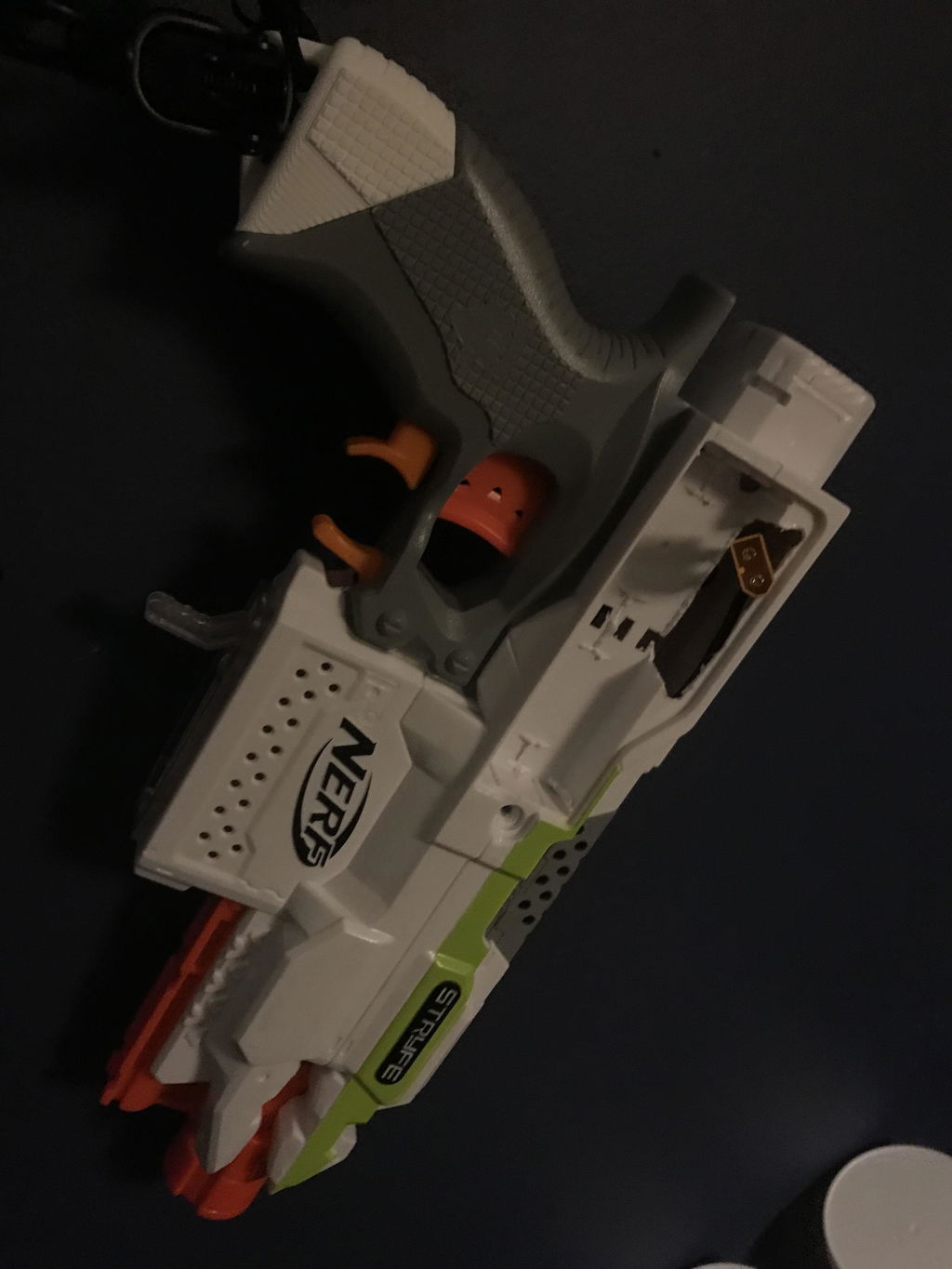

I got the 42mm kit with the battery package. Includes high quality parts for upgrading the blaster. No instructions included so you'll have to find a YouTube how-to video. It's not an easy process. You need soldering skill and you've really got to know how to get everything aligned properly (I apparently don't) or it'll just jam up and destroy darts so buyer beware.
Absolutely perfect, kit had everything you need and more
This kit worked well, not a crazy amount of shell trimming needed, I had to trim my switch plate a little because I soldered the wires angled slightly down. I ended up just trimming out a big hole in the top of the battery tray to fit the xt-60 better, but it requires some gymnastics to get the battery to fit with the normal battery door, I recommend getting the bigger door even for the smaller battery but it’s not needed. You don’t need to use the rev trigger spring if you prefer a lighter trigger.
I ordered this kit with the battery included option and the charging/safety kit. This was my first time ever modding a nerf blaster and this kit couldn’t have made it easier. Everything I could have needed for this conversion was included and made it super easy (the micro switch plate and the plastic motor guards included were life savers), I also ordered the expanded wire channel separately to make things a little easier on myself. I did however buy a LED volt meter separate and installed it in conjunction with this kit and the location I chose and the way I chose to route the wires left me wishing there was just a tiny bit more hobby wire and heat shrink included, but that was on me. If you install the kit how it is without an extra LED volt meter, or at least put it in a better location than I did, then the wire and heat shrink included is more than enough to get the job done. I also wish the kit had the option to choose the CNC daybreak cage combo instead of the 3D printed one for those who want the option because I would have loved that, but the 3D one is great and I’ve had no complaints or problems. I would definitely reccomend this kit to anyone looking to mod their Stryfe.
This kit was easy to install and seriously hypes the blaster's performance. I put it in two of my Styfes so visitors wouldn't feel like the playing field was skewed. At CQB distances it actually makes having an optic worth more than style points.
