Neutron High Rate of Fire Compact Solenoid

Neutron High Rate of Fire Compact Solenoid

$30.00 USD
$30.00 USD $30.00 USD
Sale Sold out
Style

PRODUCT DESCRIPTION:
Bring your custom blasters rate of fire up to ludicrous speeds with our new custom solenoid with up to 40 Darts per Second!  This compact solenoid was designed by Eli Wu for High reliability and maximum rate of fire.  The standard operating speeds offer about 10 darts per second on 3s and up to 18 on 4s, but where this part really shines is when it is used in conjunction with a full bridge circuit or with a Zener and Flyback diode and upgraded return spring for up to 40 darts per second!

FEATURES:
• Up to 40 Darts per Second (additional circuitry required)!
• 10 DPS on 3s, 18 DPS on 4s
• Smallest and most powerful blaster-specific solenoid
• Maximum voltage tested for 40hz is 32V

SPECS:
• 26mm stroke length

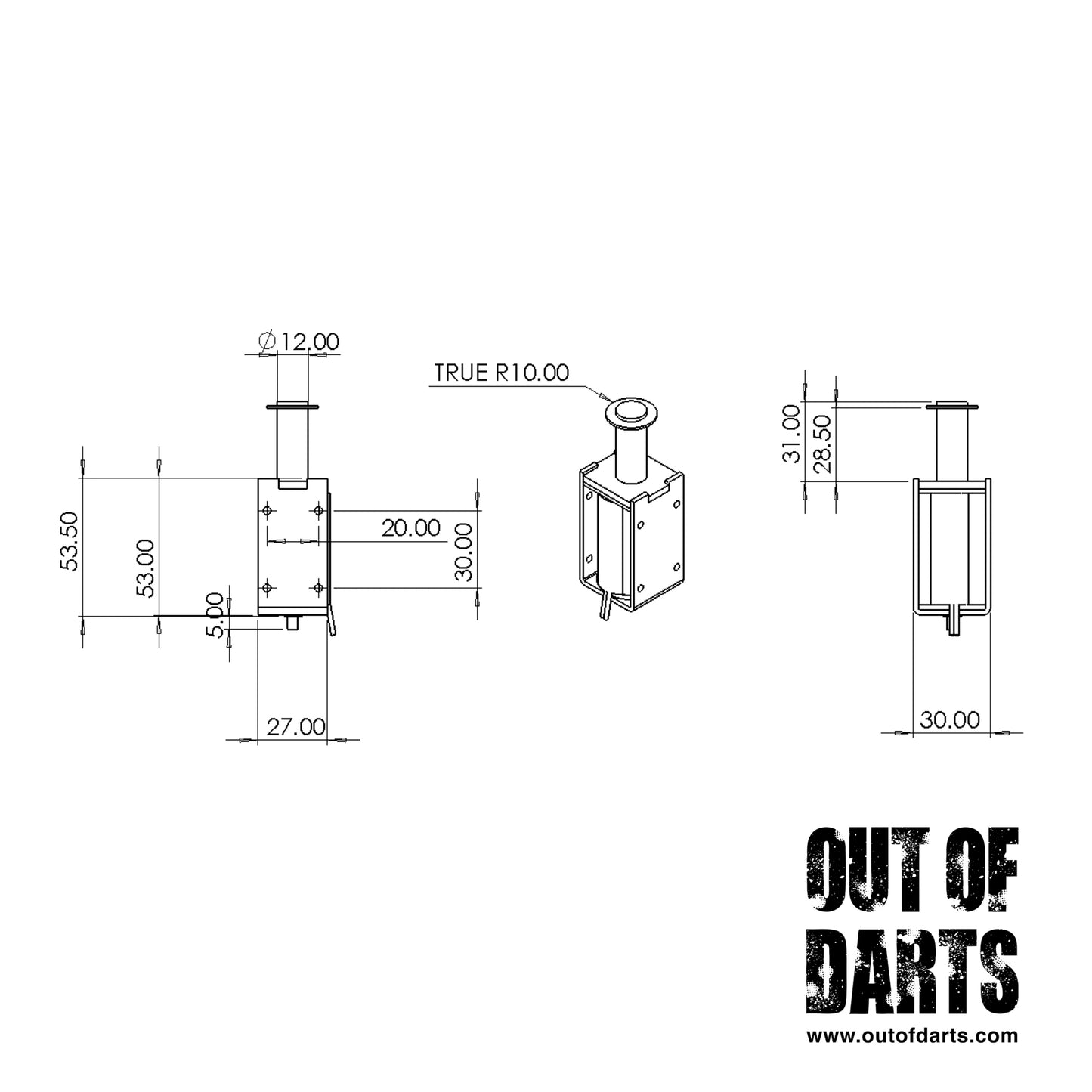

• Dimensions: 53.5x27x30mm body size
• Weight: 7.5oz weight
• 12V DC
• 2.3Ohm
• Core length 125mm
• Rod end 6-32 threaded

MORE INFO:
• Eli has used a DC-DC boost converter designed for 25A burst and ~10A averaged. An H-bridge works, but the zener method is just significantly cheaper/easier to design

• STEP file

View full details

Customer Reviews

Based on 8 reviews
100%
(8)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Anonymous
Eli-te

Well done! As an added benefit helps balance the blaster when using a heavier cage setup that normally would be muzzle biased. Can't wait to get my foam flinging paws on a Momentum!!!!!!!!

V
VBM B.
Amazing!

Wonderful design, great performance, lots of uses, this will be perfect for my new design.

D
David P.
Considerations for blaster design

For full size flywheels, you will not get the full advertised darts per second if the solenoid must extend fully even with a zener and flyback diode in series and with a double sprung option. The advertised darts per second is only really achievable with smaller flywheel designs where the solenoid does not extend fully. I achieved about 13 Darts per second in my testing with a brushless gryphon, with flywheels larger than daybreaks.

b
brian b.
neutron solenoid

ordered this for my hummingbird 2 build. i like the smaller size, worked great out of the box. im happy with it

T
Teddy B.
Great power, rate of fire, and stroke length

This made making a new blaster a possibity, hopefully it will be done soon.
