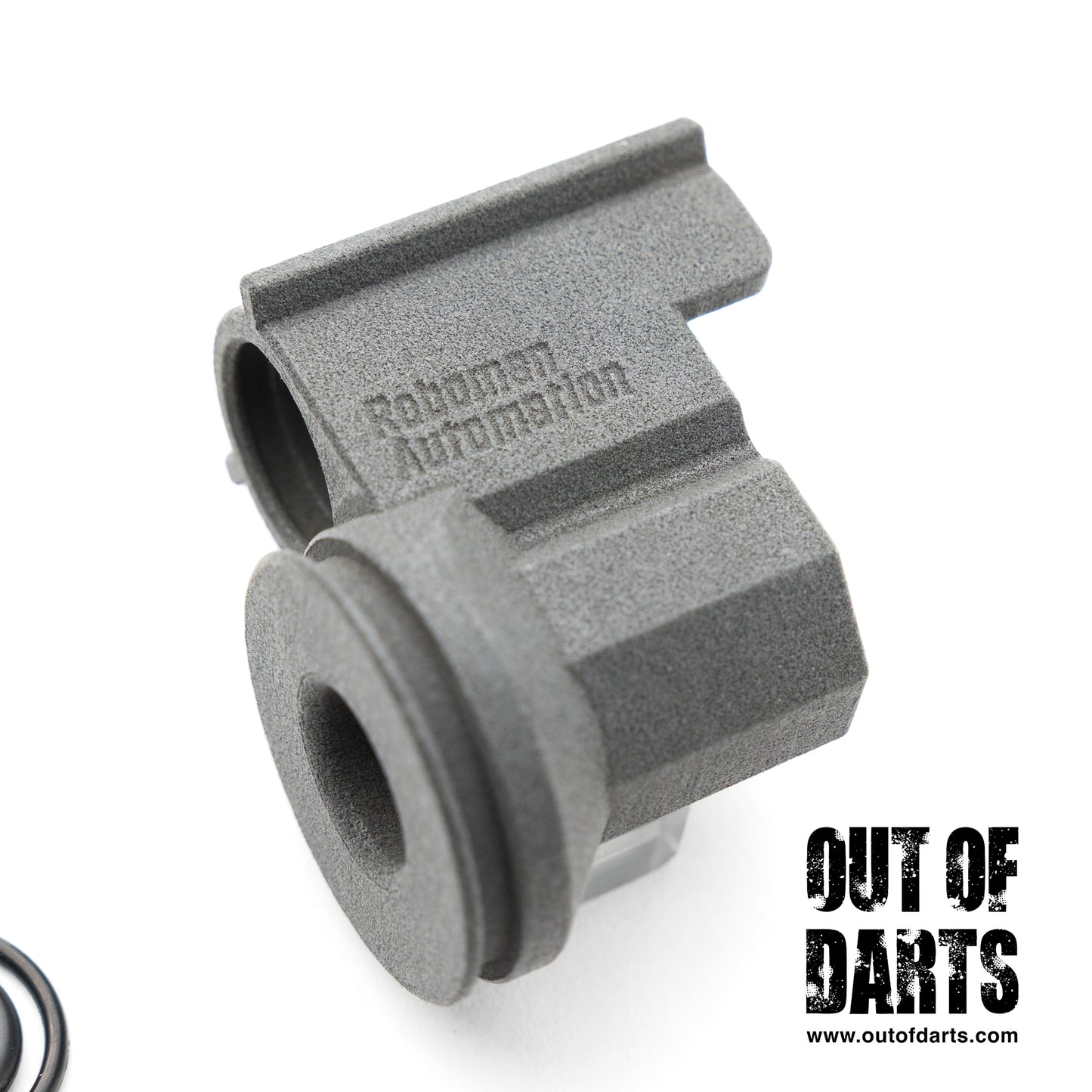

The Roboman Automations SLS Nylon Lynx Turnaround + Ram Set is a high-quality plunger + turnaround upgrade from the standard FDM/FFF 3D-printed turnarounds for the Orion Blasters Lynx and its derivatives, Minx and Lonx. Featuring updated O-ring groove geometry and a fixed O-ring gland, these precision parts improve the functionality and reliability of your Lynx without the need for adjustment or tuning.
FEATURES: • Upgrade Lynx Turnaround + Ram Set • Improved turnaround O-ring grooves • Fixed ram O-ring gland provides a tool-free seal • 3D-Printed in SLS Nylon by Roboman Automations • Compatible with Lynx, Minx, and Lonx blasters

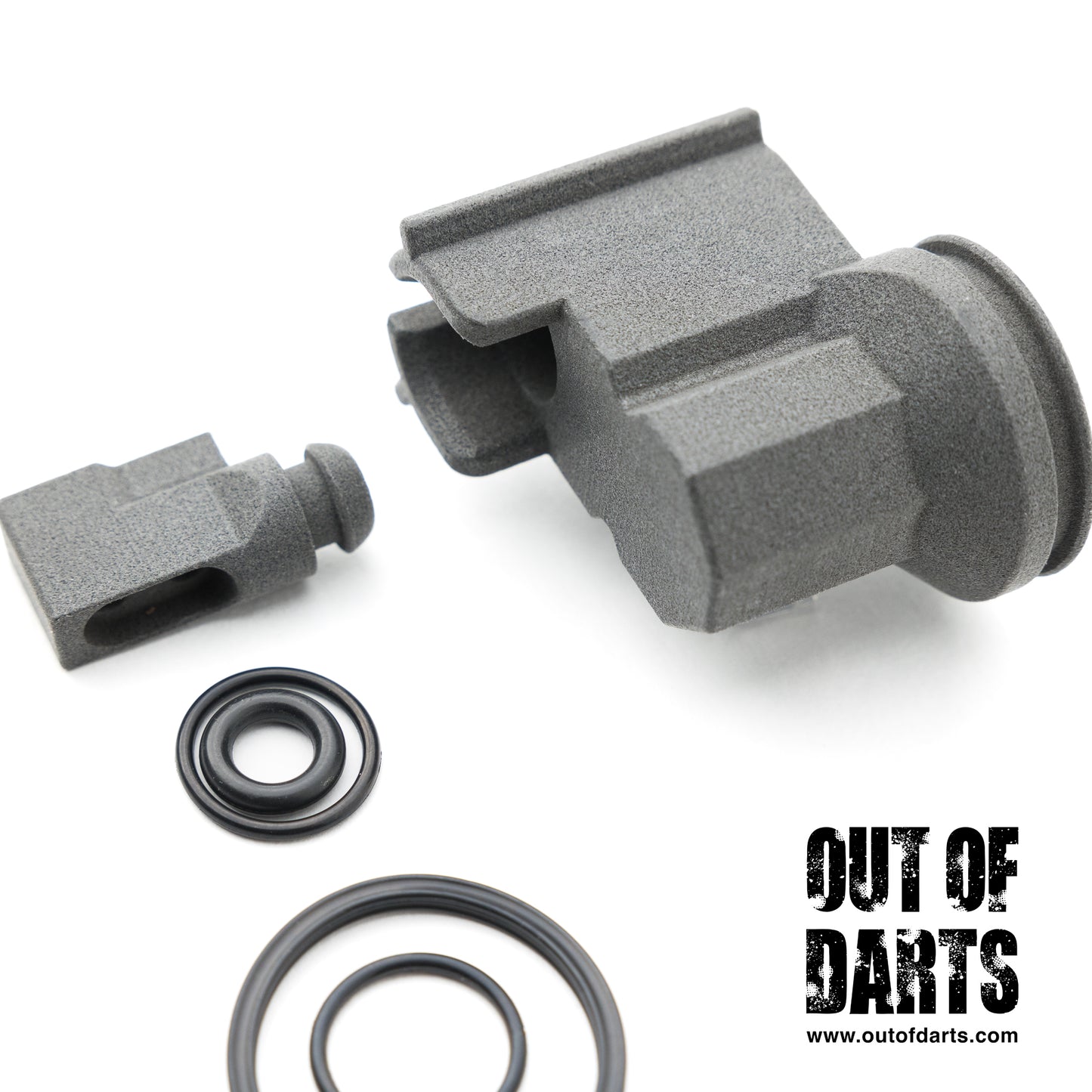

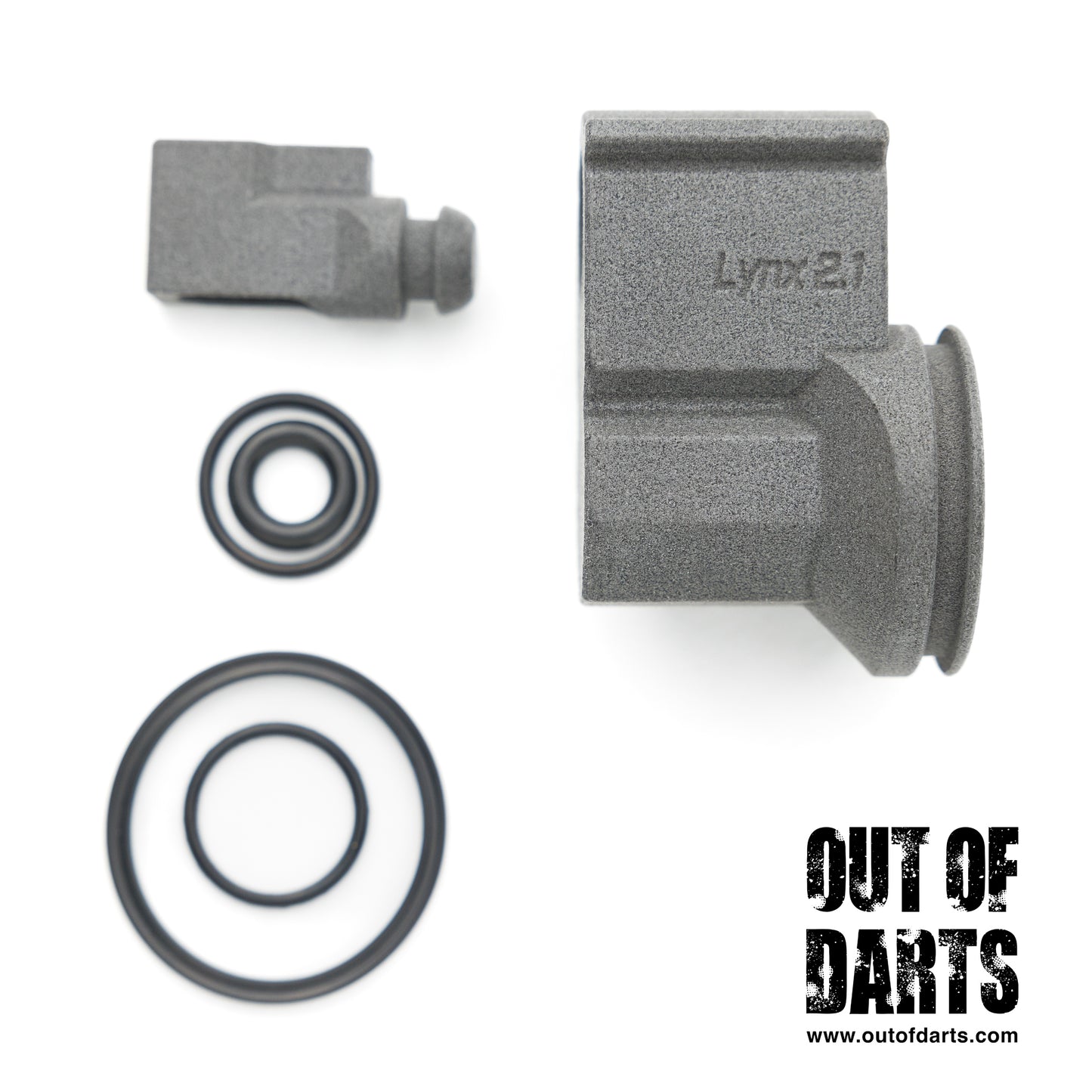

INCLUDES: • 1 SLS Nylon Turnaround in your choice of version • 1 SLS Nylon Ram* • 1 Dash-123 X-ring • 2 Dash 016 O-rings • 1 7.5 x 3.0mm O-ring

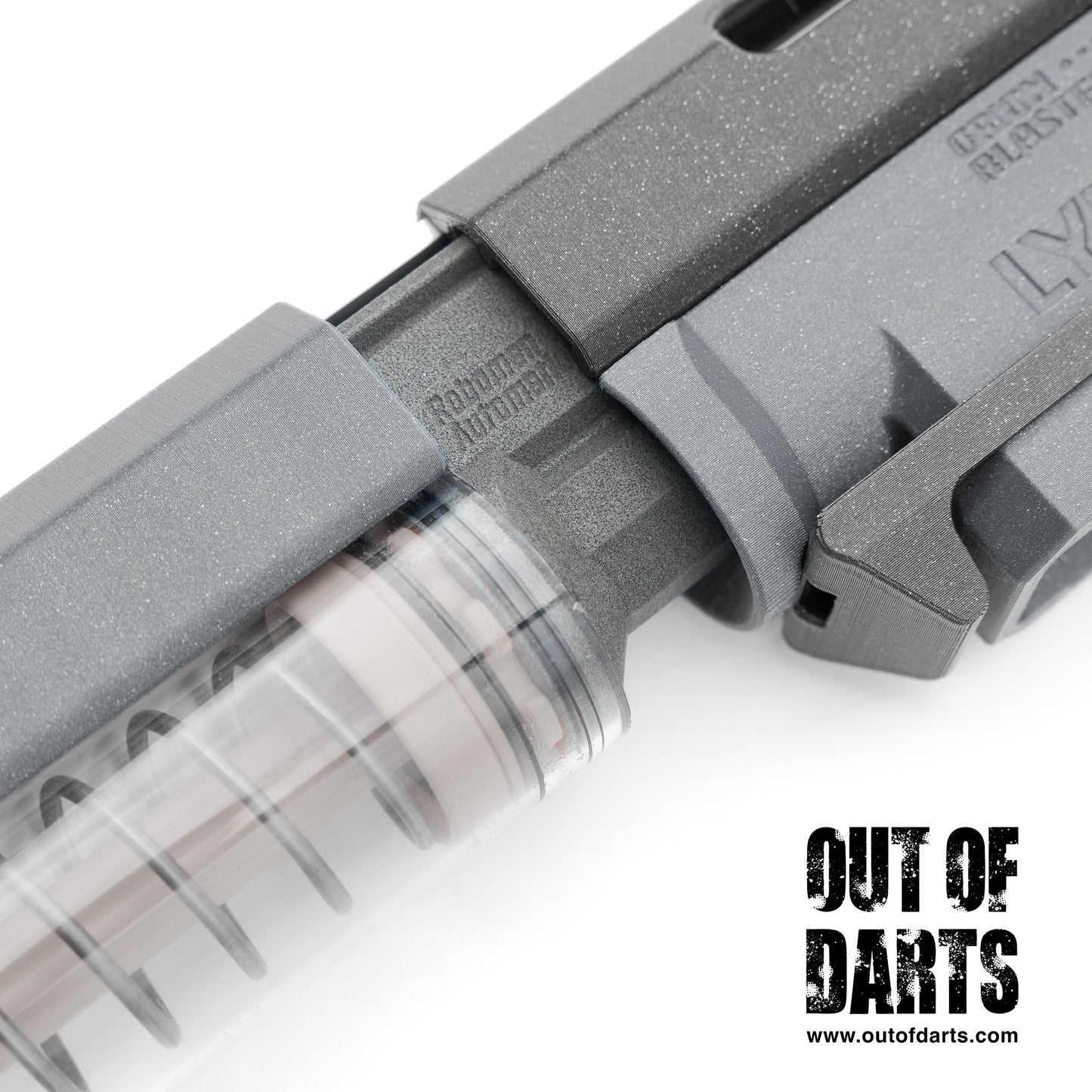

*Installation of the Nylon ram uses the stock ram screws; new screws are not included.
Notes on Installation: Plunger tube installation requires significant X-ring compression. You may need a small blunt probe, stylus, or spudger to gently work the X-ring into the tube. Make sure you do not press on the x-ring with sharp objects, or it may tear during installation. Barrel installation can also be a challenge. We find that it's easiest to press down firmly on the barrel with the turnaround resting on a firm, flat surface. Gentle taps with a soft-faced mallet may be necessary, but take care to avoid side-loading the parts.
As someone who is new to the hobby, and to tuning 3D printed blasters, I wasn’t sure I was getting a good enough seal on my Lynx with the parts that came stock with my blaster. I decided to upgrade my turnaround so I could be sure that I was getting it right. One thing to note, as a newbie: the o-ring going into the breach requires frequent lubrication, otherwise the friction significants interrupts the prime.
