Mighty Shrub SMILEY Hardware Kit

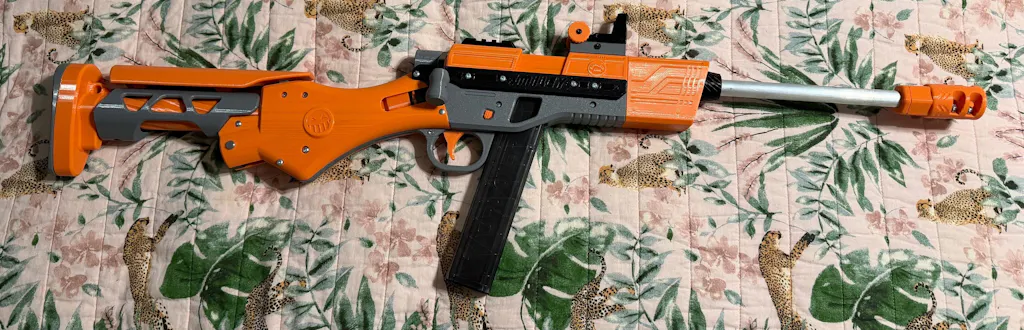

The SMILEY is a 3D-printed bolt-action springer designed by Mighty Shrub, heavily remixed from the yet-to-be-released MHP Wrenfield MK-3. Featuring a slim-angled "Nightingale" magwell and plunger-in-grip design, this blaster packs quite a bit of power in its compact form factor. Additionally, the Smiley features toolless spring and barrel swaps for customizable FPS on the go.

This hardware kit includes everything you need to print the 3D parts and assemble this blaster yourself with Sillybutt's O-ring breech remix (3D files available below).

FEATURES:
• SMILEY Hardware Kit
• Compact 3D-printed bolt-action springer
• Designed by Mighty Shrub
• Designed in collaboration with MrHeathPants
• Unique plunger-in-grip design
• Swappable springs and barrels
• Compatible with slim-angled "Nightingale" magazines

INCLUDES:
Everything you need to print and assemble this blaster, including:
• 1 Spring of your choice
• 1 0.509 x 12in aluminum barrel
• 1 M8 Socket Head Screw + Nylock Nut*
• 1 Takedown Pin
• 2 Dash 012 O-rings**
• M3.5 Thread-Forming Screws
• 2mL Slug Slym

*CNC-machined bolt handle is optional, but highly recommended for durability
**This kit currently features an O-ring breech seal. For the original brass breech design, brass tubing is sold separately.

PERFORMANCE:
Average FPS (Standard Deviation) with the 0.509 x 12in barrel*
• 131 (17) FPS with the 1.83 spring
• 150 (12) FPS with the 1.91 spring
• 188 (6) FPS with the 2.03 spring
• 205 (6) FPS with the 2.16 spring
• 220 (7) FPS with the 2.20 spring

*No spacers were used. Click here for a complete list of tested performance averages.

SPECS:
• Material: Varies
• Dimensions:
     Assembled: 900 x 130 x 40mm
• Weight: 204g
• Recommended Age: 14+
• SKU: HWK MTS SMILEY

LINKS:
• SMILEY 3D Files
• O-ring Breech Files
• Nightingale Mags
• Recommended Darts
• Brass Barrel Tubing
• More Smiley Mods + Accessories
