Mighty Shrub SMILEY Hardware Kit

Mighty Shrub SMILEY Hardware Kit

Regular price $62.99 USD
Regular price Sale price $62.99 USD
Sale Sold out
Shipping calculated at checkout.

LEAD TIME 5-7 BUSINESS DAYS

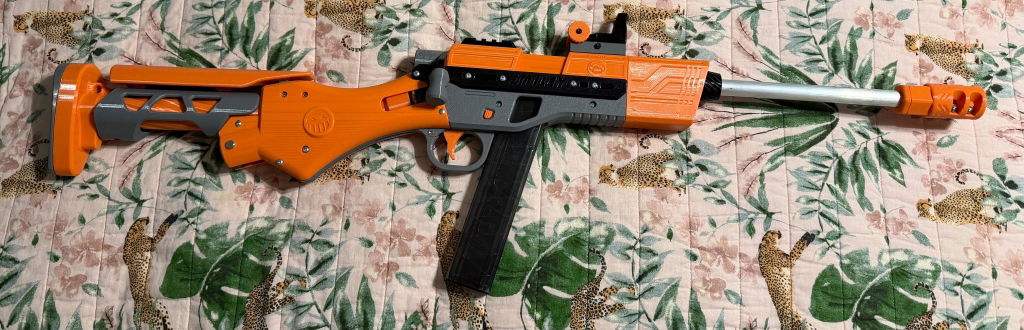

The SMILEY is a 3D-printed bolt-action springer designed by Mighty Shrub, heavily remixed from the yet-to-be-released MHP Wrenfield MK-3. Featuring a slim-angled "Nightingale" magwell and plunger-in-grip design, this blaster packs quite a bit of power in its compact form factor. Additionally, the Smiley features toolless spring and barrel swaps for customizable FPS on the go.

This updated hardware kit includes everything you need to print the 3D parts and assemble this blaster yourself with an O-ring breech seal (3D files available below). Additionally, all kits now include a Machined 13mm barrel and premium CNC-milled Bolt handle.

FEATURES:
• SMILEY Hardware Kit
• Compact 3D-printed bolt-action springer

• Designed by Mighty Shrub
• Designed in collaboration with MrHeathPants
• Unique plunger-in-grip design

• Swappable springs and barrels
• Compatible with slim-angled "Nightingale" magazines

INCLUDES:
Everything you need to print and assemble this blaster, including:
• 1 2.03 x 140mm spring
• 1 13 x 300mm aluminum barrel
• 1 CNC-milled + anodized bolt handle
• 1 M8 Socket Head Screw + Nylock Nut*
• 1 Takedown Pin
• 2 Dash 012 O-rings**
• M3.5 Thread-Forming Screws
• 2mL Slug Slym

*CNC-machined bolt handle is optional, but highly recommended for durability
**This kit currently features an O-ring breech seal. For the original brass breech design, brass tubing is sold separately.

PERFORMANCE:
Average FPS (Standard Deviation) with the 0.509 x 12in barrel*
• 131 (17) FPS with the 1.83 spring
• 150 (12) FPS with the 1.91 spring
• 188 (6) FPS with the 2.03 spring
• 205 (6) FPS with the 2.16 spring
• 220 (7) FPS with the 2.20 spring

*No spacers were used. Click here for a complete list of tested performance averages.

SPECS:
• Material: Varies
• Dimensions:
     Assembled: 900 x 130 x 40mm
• Weight: 204g
• Recommended Age: 14+
• SKU: HWK MTS SMILEY

LINKS:
3D Files
• SMILEY 3D Files
• O-ring Breech Files

Products
• SMILEY Springs
• Nightingale Mags
• Recommended Darts
• More Smiley Mods + Accessories

View full details
  • 5 stars: 8 (80%)
  • 4 stars: 2 (20%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
M
Matthew M.
Great kit

Great kit and an easy build. Do watch the video before printing your parts - not everything comes from the original model.

K
Kyle
Great Kit

Had no issues when assembling the blaster with the hardware kit. I got within the posted FPS average for the 2.16x140mm (205 FPS) and 2.20x140mm (220 FPS) springs. As others have mention the spring retention pin is about 1/16th of an inch too short, but it is long enough to be functional and stay in the blaster. You can get a 3/16" x 1 9/16" clevis pin if you want it to sit flush on the other side.

A
Albert L.
Good Hardware Kit

Pretty much all the hardware you need to assemble this blaster. The pin that holds the spring works fine for me; as theres no chance of it coming off besides using the head part of it to remove the spring. You can put in a longer take own pin and print out a cotter pin to secure it.

A
Arcturus
print problem

for some reason the internal parts, the orange ones, printed weird, with weird layer lines, anybody have any clue why? I haven't tested mine yet, but I shot someone else's, and it is great!

A
Anonymous
Absolute Monster

Shoots fast and accurate, feels great in the hand and works as intended. Could not be happier with this monster of a blaster.

D
Daniel

Great

A
Anonymous
Greatest blaster ever

Shoots very fast and accurate great magazine choice and would recommend having venom pro as sidearm

S
Stephen
No idea!

Sometimes I get these review suggestions in my email and they never list what the actual product. And then it's like a 50/50 shot that it actually posts. I'm sure the product was of acceptable or exceptional quality.

n
noah t.

Works great, everything works as intended

N
Noah

Awesome kit, although the pin for the spring cap is a tad bit short.
