Sillybutts Battle Axe Hardware Kit
Sillybutts Battle Axe Hardware Kit

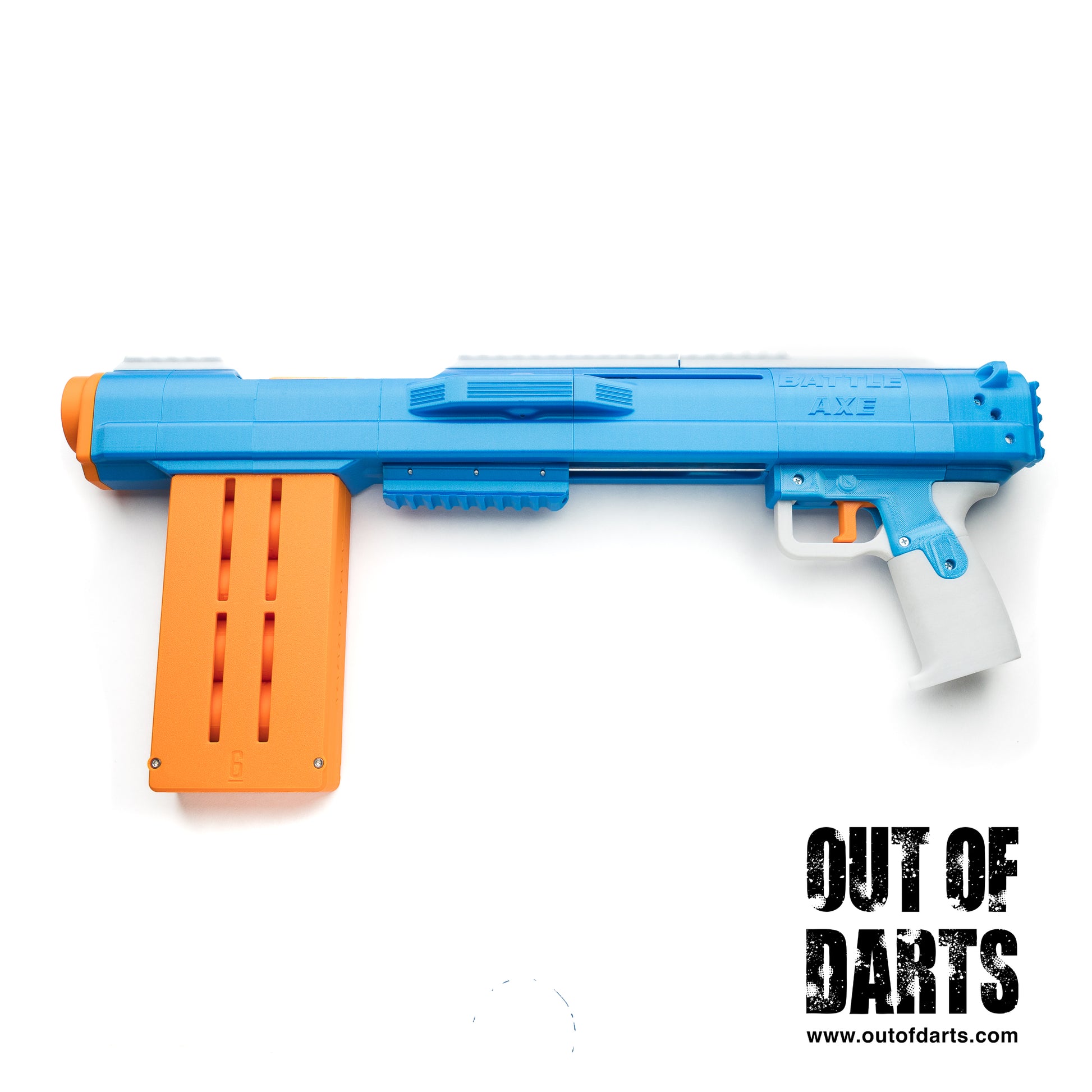

The Sillybutts Battle Axe is a pump-action shotgun blaster using Sillybutts' new versatile and durable 3D-printed Silly Shell standard. Featuring a bearing-assisted priming block, this springer primary has the smoothest pump-action prime of any shell-fed blaster so far! Additionally, the 6-round internal shell magazine allows the blaster to adapt to the ammo needs of any game or play style.

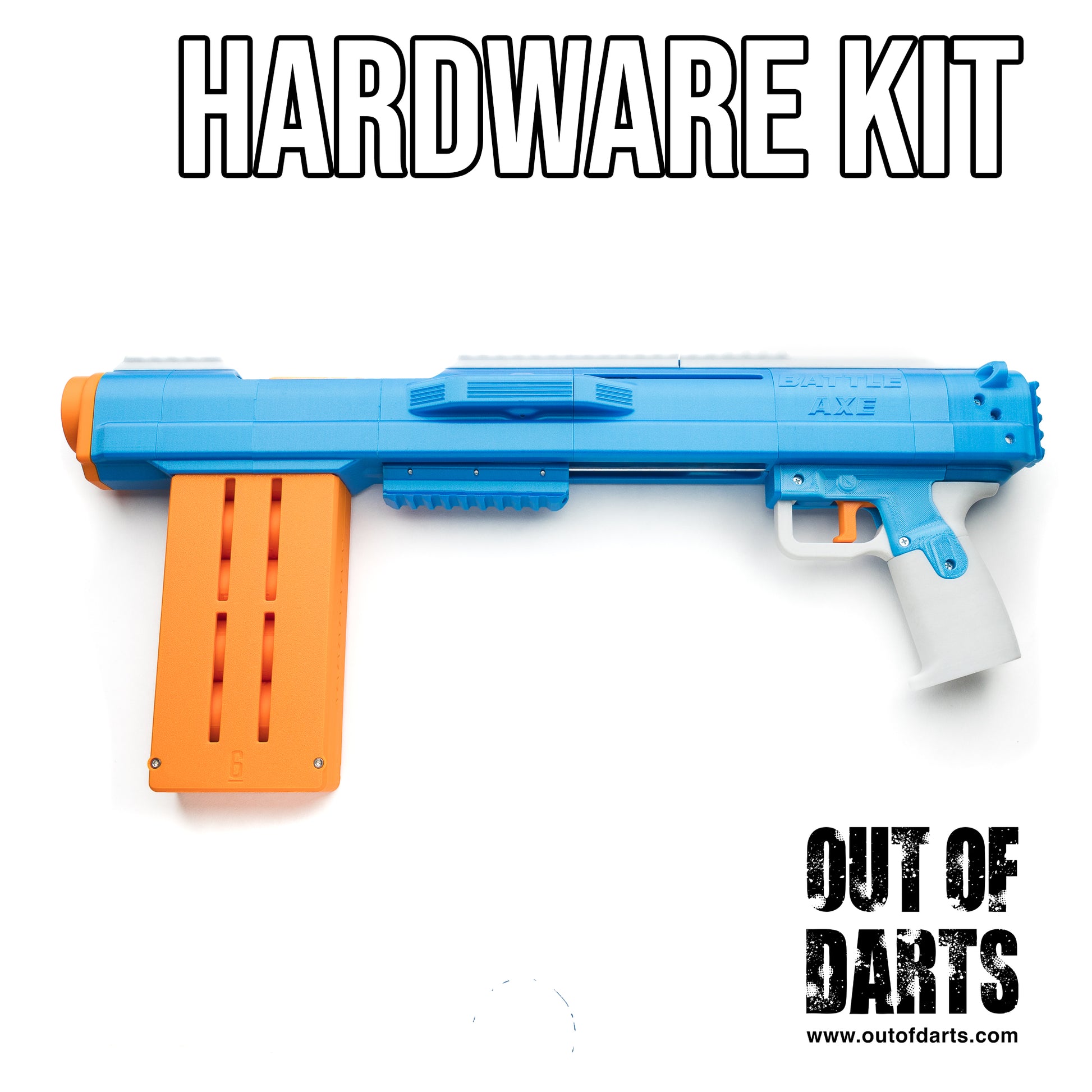

This hardware kit includes everything you need to print the 3D parts and assemble this blaster yourself (3D files available below).
FEATURES:
• Sillybutts Battle Axe
• Pump-action shell-fed blaster
• Bearing-assisted prime
• Internal 6-round Silly Shell magazine

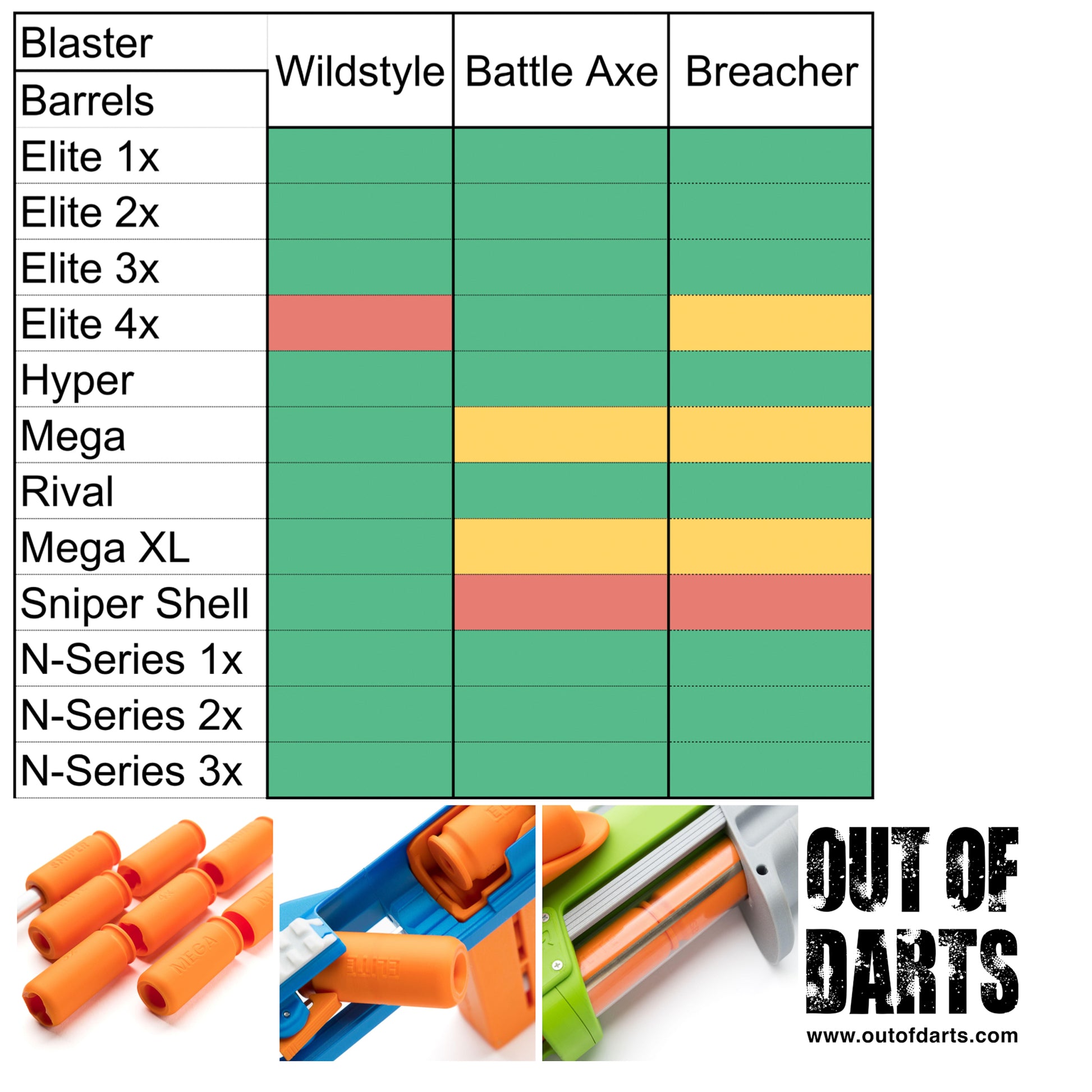

• Compatible with most Sillybutts Silly Shells
• Limited compatibility with longer ammo types and bottle-nose shell
• Not Compatible with sniper shell (metal barrel)
• Premium CNC aluminum bars

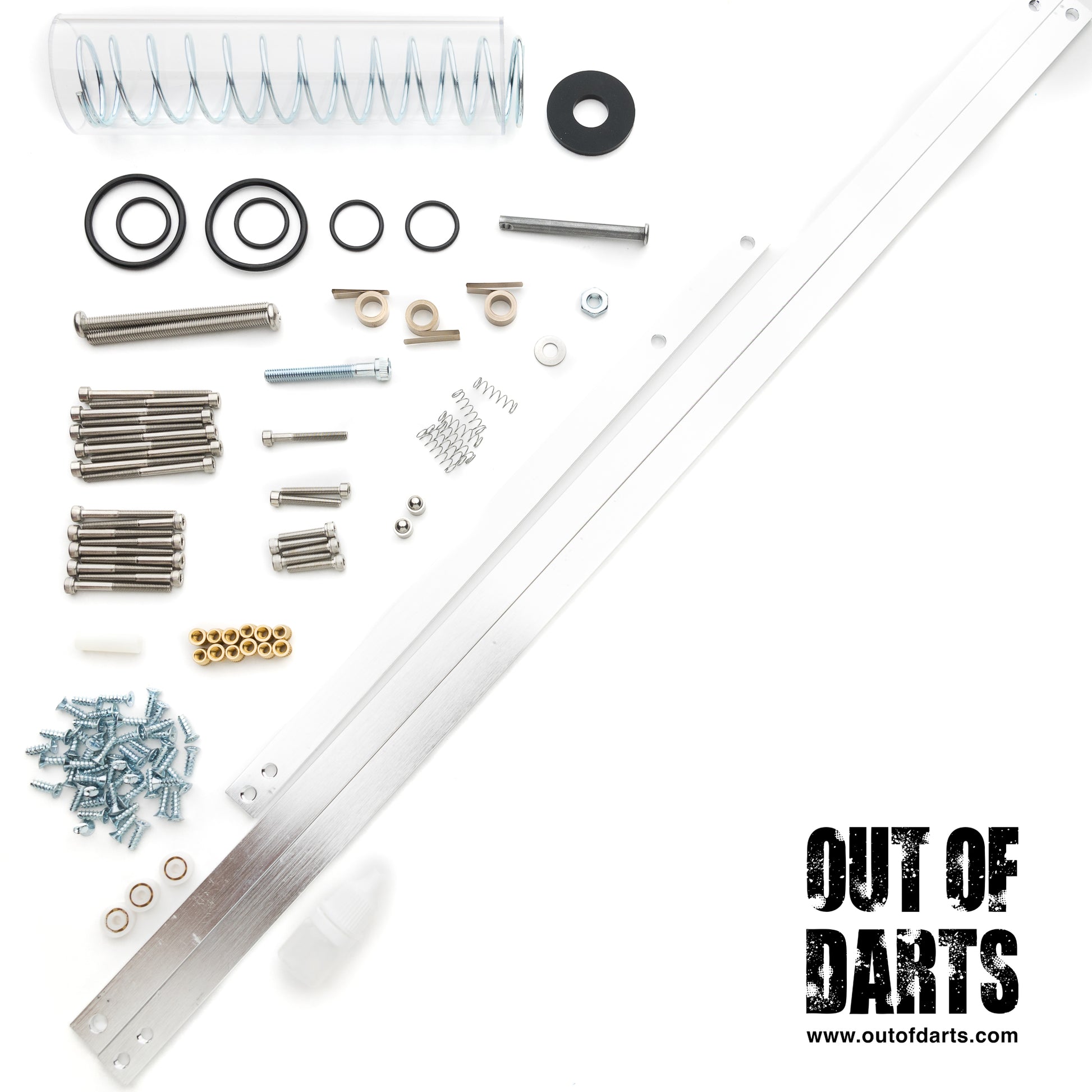

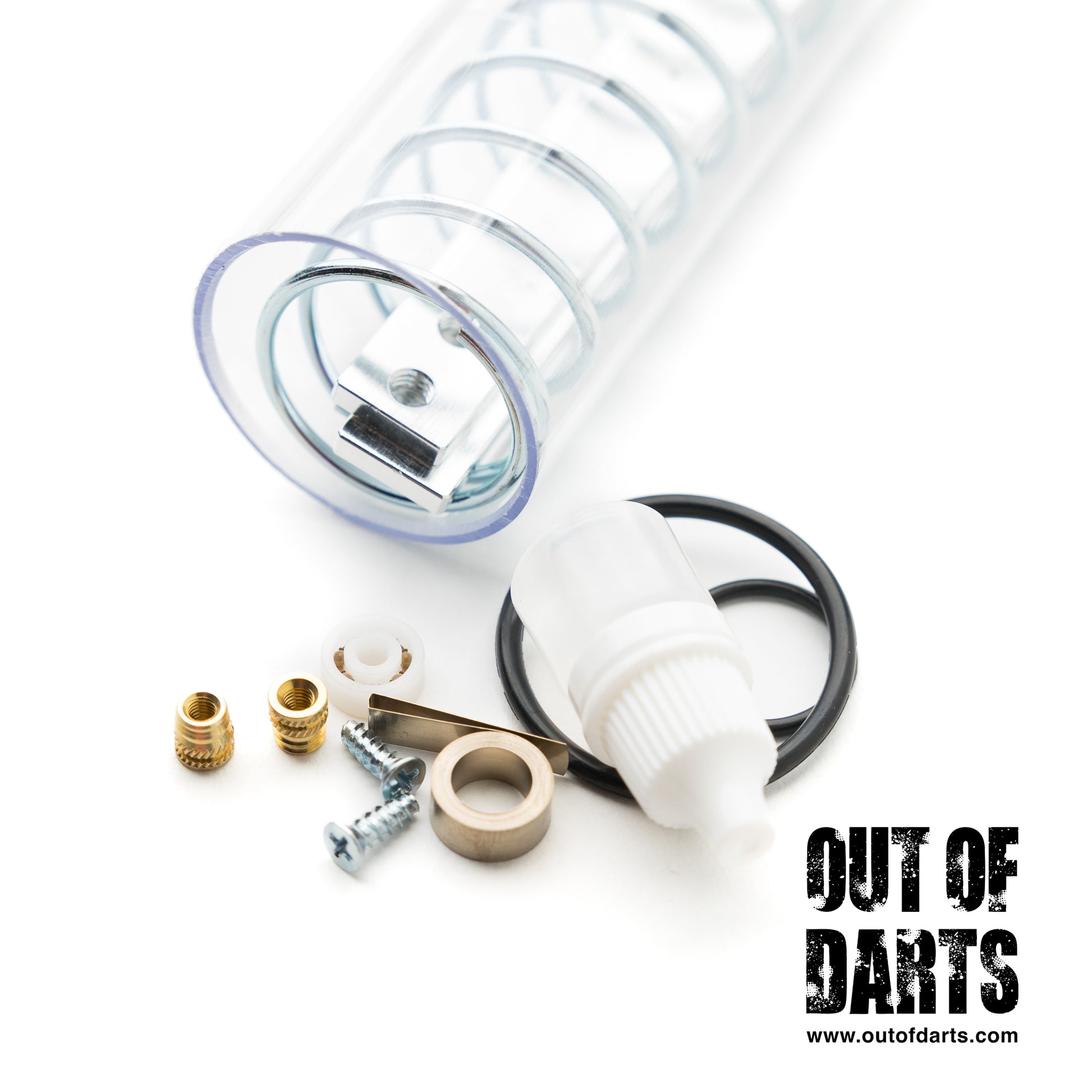

INCLUDES:
Everything you need to print and assemble this blaster yourself!
• 1 Main Spring of your choice
• 1 5.72in Plunger Tube
• 2 • Premium CNC aluminum bars
• 1 TC4 Bar
• 4 016 O-Rings
• 2 123 O-Rings
• 1 Shock Pad
• 1 #10-32 Socket Head Screw
• 1 #10 Washer
• 1 #4 x 0.75in Nylon Spacer
• 4 Constant Force "Drum" Springs (updated 11/29/24)
• 3 623 POM Bearings
• 50 #4 x 0.375in Thread-Forming Flat Head Screws
• 12 M3 Heat-Set Inserts
• 5 M3 x 16mm Socket Head Screws
• 2 M3 x 20mm Socket Head Screws
• 1 M3 x 25mm Socket Head Screw
• 9 M3 x 30mm Socket Head Screws
• 11 M3 x 40mm Socket Head Screws
• 6 9657K644 "Lynx Trigger" Springs
• 1 0.1875 x 1.8125in Takedown Pin
• 2 #10-32 x 2.5in Pan Head Screws
• 2 Ball Detents
• 1 Slug Slym (2mL Bottle)
PERFORMANCE:
Average FPS (Standard Deviation)
• 20-shot average coming soon!
SPECS:
• Material:
• Dimensions:
• Weight:
• SKU: HWK SIL BATTLE AXE
LINKS:
• 3D files
• Assembly Guide PDF
• Silly Shells
• More Battle Axe Compatible Mods + Accessories
• More Silly Shell-Fed Blasters
• Designer's website
Share






Awesome blaster! Fires eight darts at a time. Assembly is somewhat complicated do not recommend for first built, and I highly recommend using a drill. Lots of hex bolts which take years to install by hand. Really cool look, and you don't need a stock(don't waste precious filament lol). I used the high spring. If you are printing your own, note that the top picatinny have supports built in which are super difficult to remove. I didn't bother and just left the blaster without and it functions fine. They don't serve a backbone purpose unlike the harrier and seagull rails do. For those like me, who want to fire eight half length darts at a time here is what I will say. It goes about 100fps, so useful as a support role but unless you like getting hit up close in small rounds with 300fps blasters do not recommend. Has very little range, but the darts get a very good spread. it makes it rain. The prime weight is difficult with heavy spring. Somewhat compatable withn the spring thunder shell catcher. Overall good blaster, lots of filament needed though once you print shells.
This thing is so awesome and the it was pretty easy to assemble especially with the video by out of Darts. 10/10 reccomend.
Fast to ship, great customer service.
Excellent service. Fantastic product.
