Lynx Threaded Breech Turnaround (2.0 + 2.1 options)
Lynx Threaded Breech Turnaround (2.0 + 2.1 options)

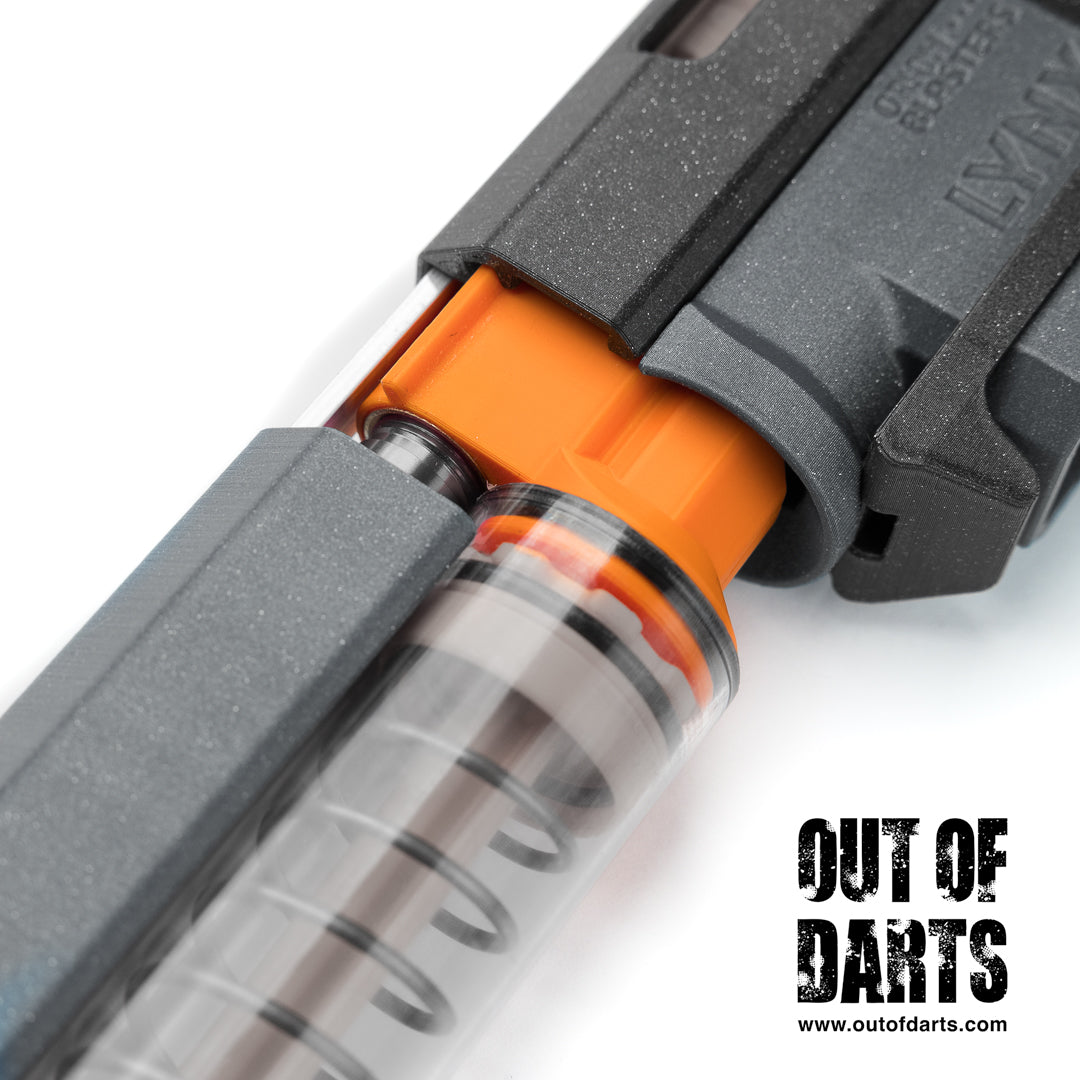

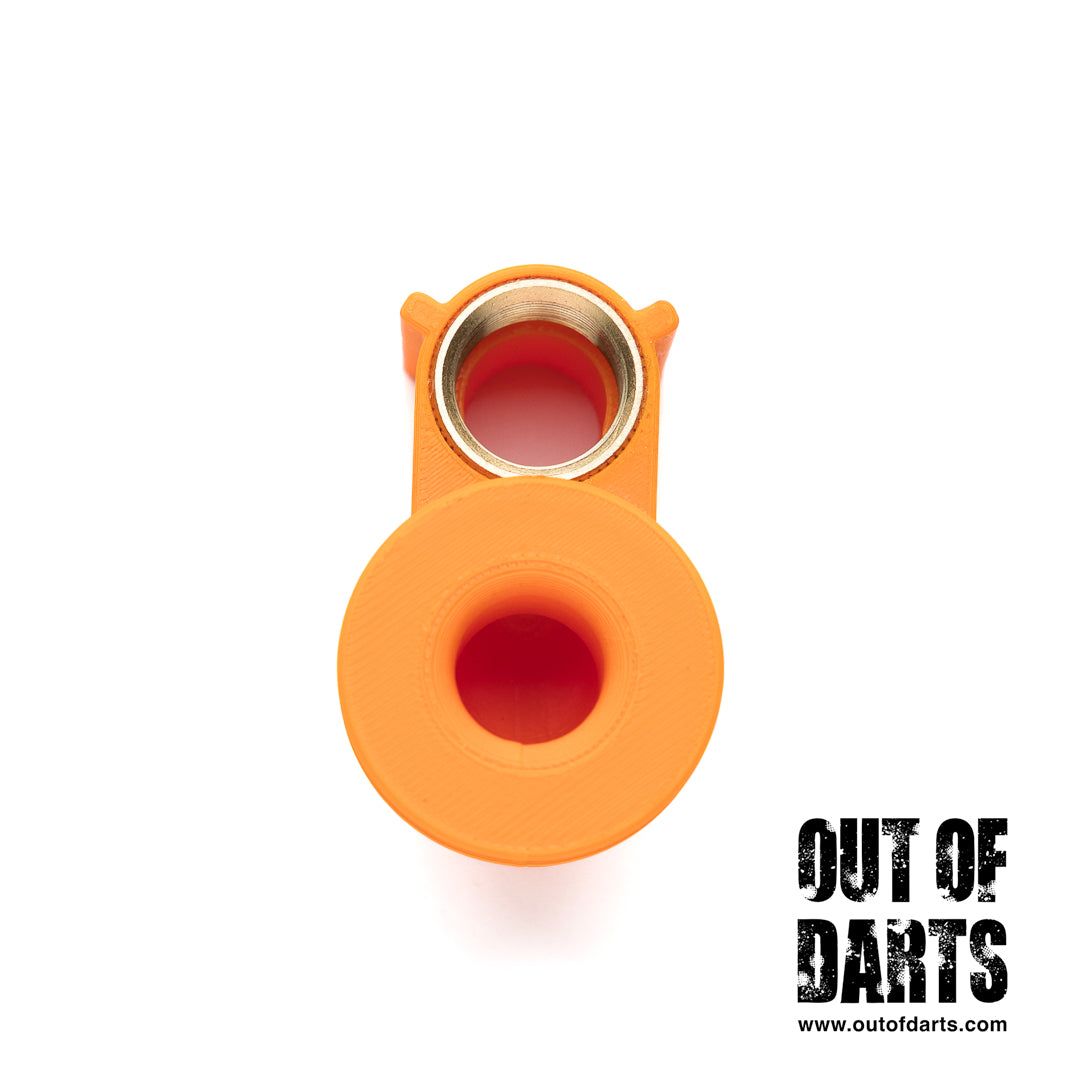

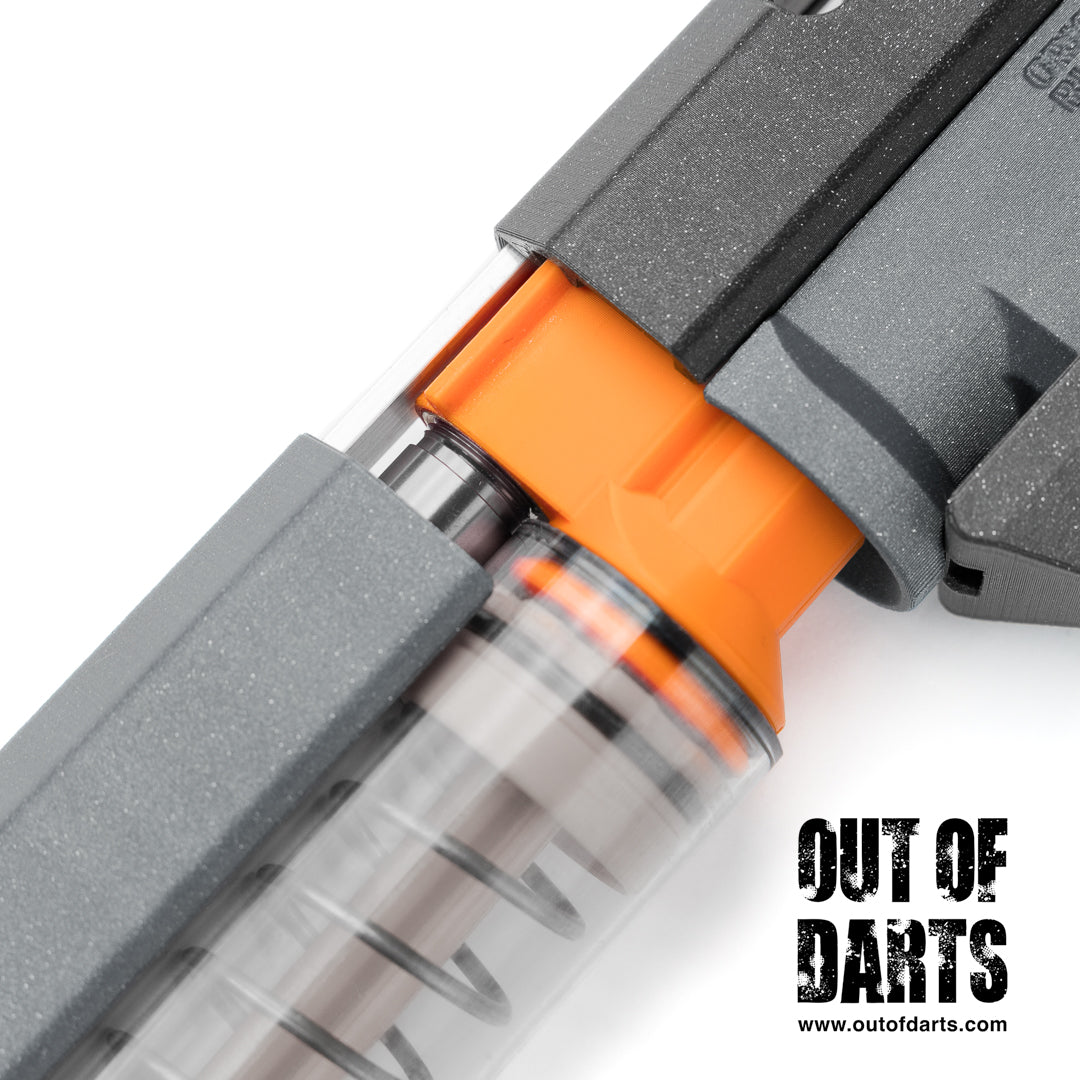

The Lynx Threaded Breech Turnaround is a replacement breech part designed to allow the Lynx and its derivatives to accept 16mm threaded-breech barrels. Featuring a brass threaded insert in place of the barrel-retaining O-rings, this drop-in turnaround installs toollessly and makes among the easiest springers to tune and service even easier.
The threaded breech is compatible with all currently available M16 x 1mm threaded-breech barrels, including ones from Worker, Kuryaka, XYL, and Phantom Tech.
FEATURES:
• Lynx Threaded Breech Turnaround
• Quickly swap barrels toollessly
• No thumbscrews required!
• Easy springer tuning made even easier
• Easy, toolless upgrade part
• Accepts Worker and Kuryaka threaded-breech barrels
• Also accepts other M16 x 1mm threaded-breech barrels
• Compatible with Orion Blasters Lynx, DanPistol, and other springers
INCLUDES:
• 1 Lynx Threaded Breech Turnaround in OOD Orange*

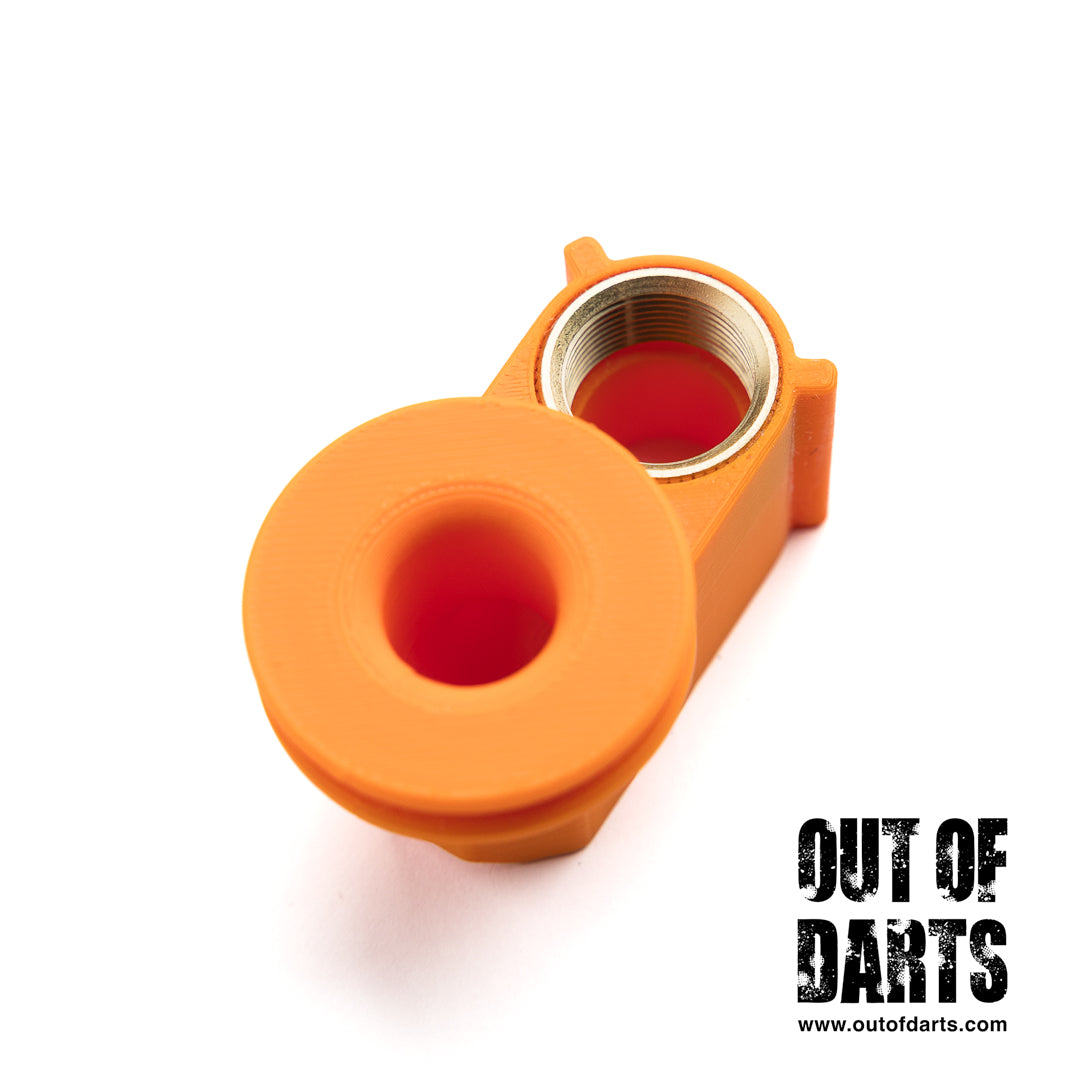

• 1 M16 x 1mm Brass Heat-Set Insert (pre-installed)
*This mod part uses the blaster's stock hardware. Replacement O-rings and other hardware linked below. Because this is an internal part, color is not selectable.
SPECS:
• Material: 3D-Printed PLA Plastic, Brass
• Dimensions: 48.4mm x 25.4mm x 25mm
• Weight: 29.2g
• SKU: 3D LUK ORB LYNX THREADED TURNAROUND
LINKS:
• Threaded-Breech Barrels
• Replacement 123 O-Rings
• Replacement Takedown Pins
• More Lynx Mods + Accessories
• More Threaded Breech Parts
Share

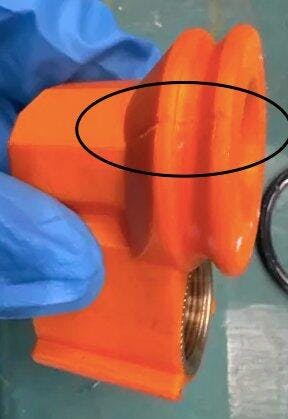

I bought the Turnaround for my Hijinx, the initial one I received was missing the heatset. But OOD was quick to replace it and I received a replacement. While it did work I was getting sealing issues due to a print seam issue on the boring groove consistent between the two prints I received, I was able to fix this by using teflon tape, but OOD definitely needs to fix this issue if more people are to buy this item confidently. Aside from the print seam issue this is a great product.
