Versatile Single Stage MOSFET Board
Versatile Single Stage MOSFET Board

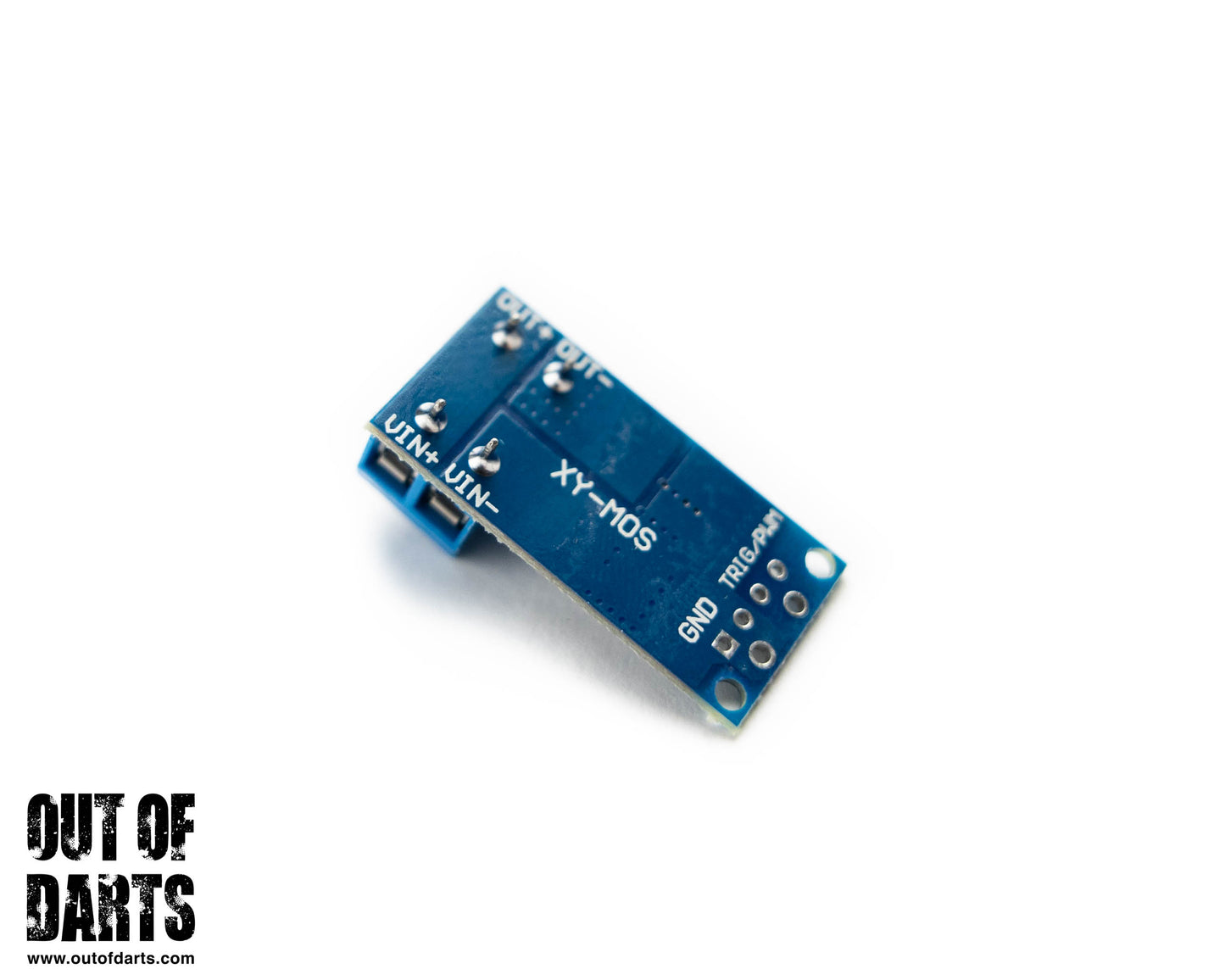

The Versatile Single Stage MOSFET board offers a switch platform for your Nerfing needs! This board is a bit larger than our mini mosfet board but is our only MOSFET that can be used with a PWM signal reliably and is compatible with any pair of standard flywheel motors we offer.
The TRIG/PWM signal should lead to your switch and then to your battery positive. This will switch the MOSFET on by sending positive current to the gate on the MOSFET (see wiring photo on last image)
*This Product is compatible with a PWM signal from an Arduino or similar microcontroller.
*A note about motor and MOSFET ratings; Our community often overestimates motor current ratings, as many of these are done on paper. The stall current is extremely brief. Because of this, we have rated each of these MOSFET products by the number of motors they can support. We warranty them for this use rather than giving specific ratings.
FEATURES:
• For use in all build types
SPECS:
• Rated for any pair (2) of 130 or 180-sized motors we sell.
• Dimensions: 17W x 34L x 14MM
ADDITIONAL LINKS:
Share
My mom bought me the demolisher mod kit, they said that they didnt have the board, and that these would work instead. THEY DONT, and even if they do, there is no clear way on how to even solder stuff onto the board. And there is no videos online on how to solder flywheels onto the board either. I was very excited to mod my modulus ECS-10, but im highly disappointed and extremely mad with these boards
We're sorry you've had a poor experience with the spring. Upgrade springs will certainly have heavier priming weight. This is unavoidable when upgrading a heavier spring.
The board has worked flawlessly once OOD reminded me that the power connects to one side of the trigger switch... (Dumb mistake on my side).
I have to thank Luke for taking the time to go over the wiring and figure out my error when I couldn't get it to work initially.
Incredible customer service and a great board!
This thing is great, barely any soldering to get it up and running, thanks to its **** terminals. And despite the height of them, this thing fits anywhere! (it fit perfectly down in the grip of my Stampede)
It packs a punch too, handles being the kill switch for my 7Kg+stock springed Stampede just fine.
Versatile Single Stage MOSFET Board
Thanks for placing an order with us! I noticed that you left a one star review on Versatile Single Stage MOSFET Board Would you mind giving us a bit more information about the issue you were having with the product? We would be happy to offer advice or a replacement on the item you were having an issue with in the event that you received a defective product.
Looking forward to hearing from you!
Simple to connect and use, works well. Was confused when motors spun up without the trigger signal. Found out I had reversed the battery connections (forgot i had a reverse colored pigtail). Board still worked fine after that.
