Piston Pump Springs
Piston Pump Springs

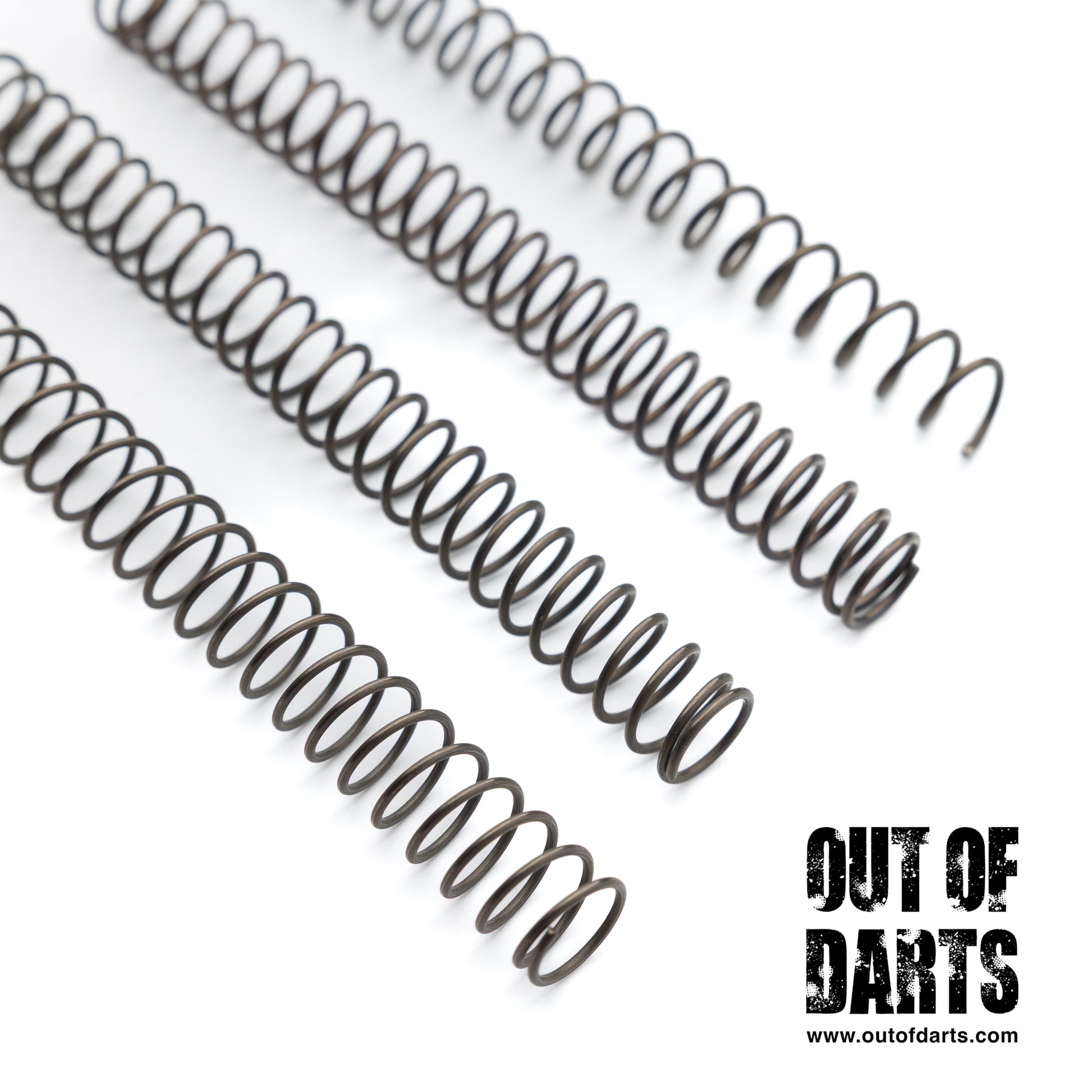

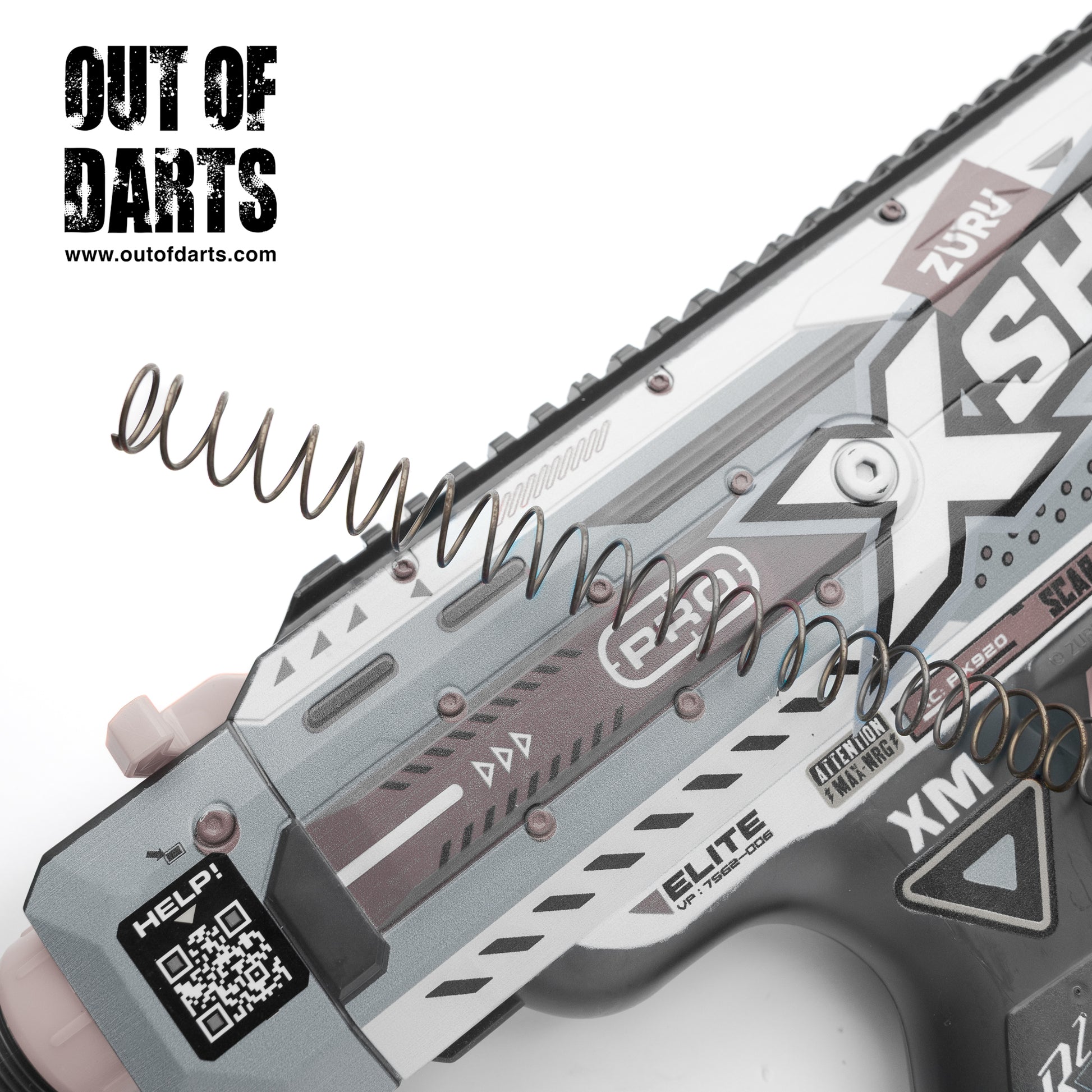

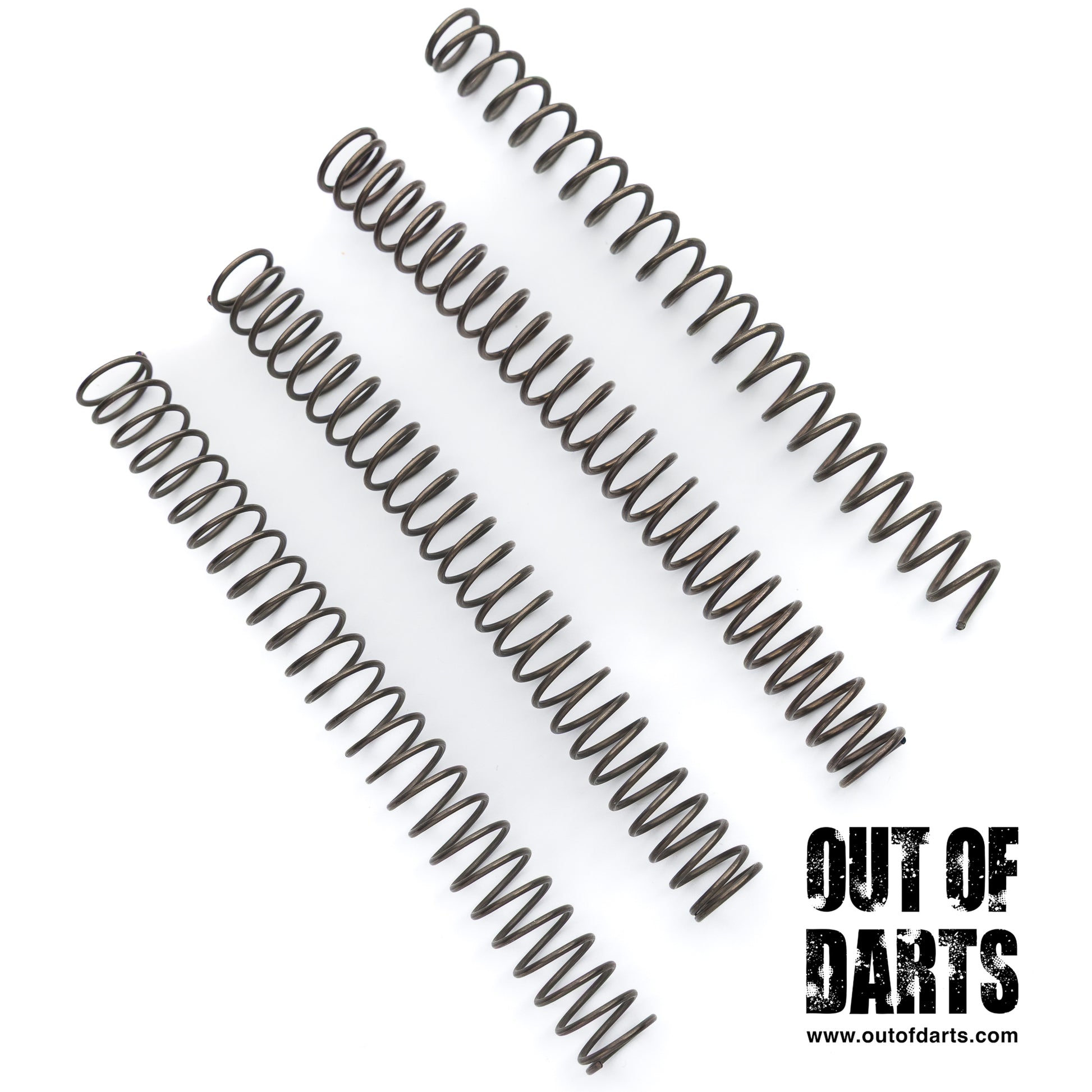

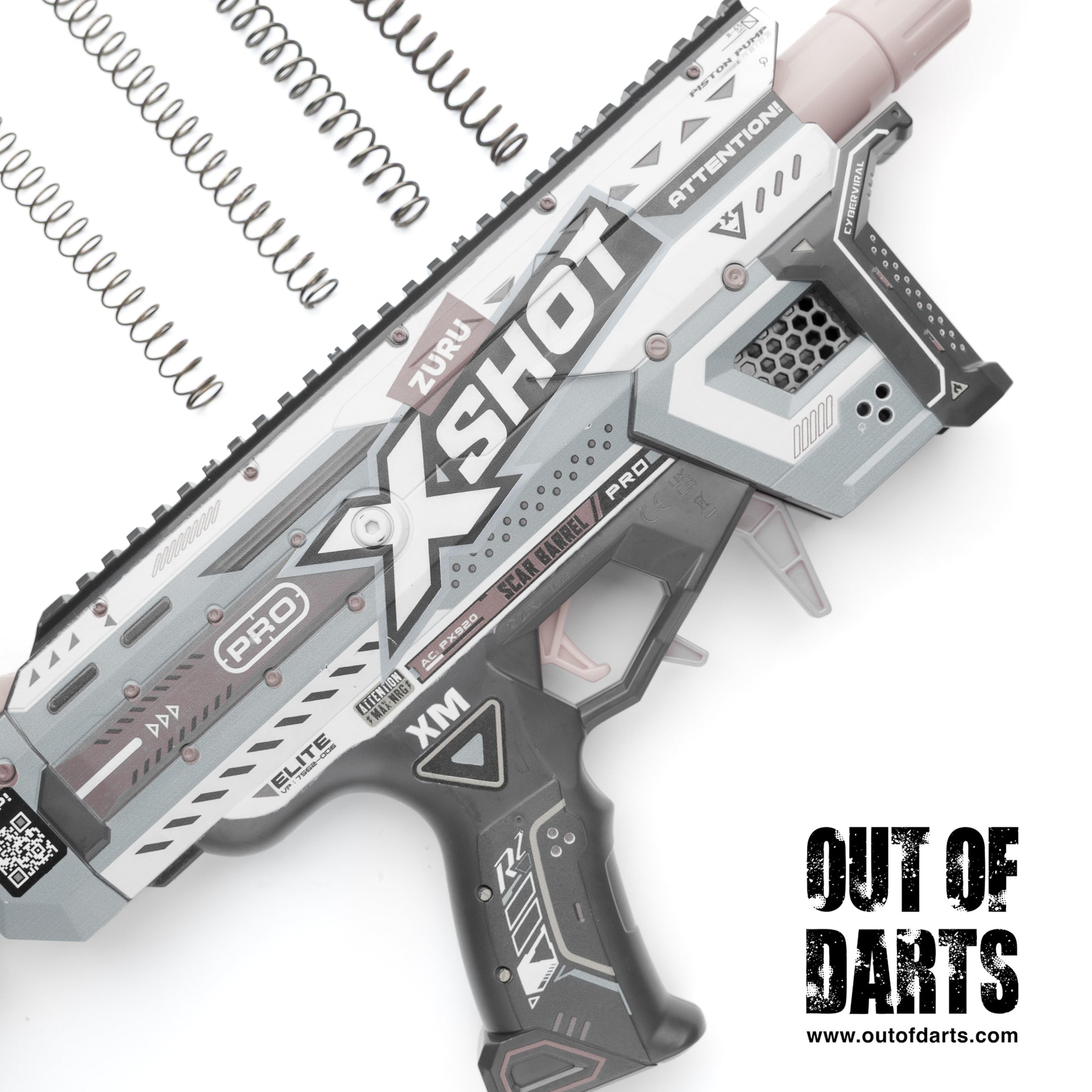

These springs are all the current compatible springs available to tune the performance of the X Shot Pro-Series Motorized Piston Pump AEB. This selection of springs offers a broad range of options, allowing you to fine-tune your blaster for various game types. While the stock blaster achieves upward of 160 FPS, these springs can be easily swapped out to fine-tune your blaster's velocity.
FEATURES:
• Piston Pump Springs
• Fine-tune the performance of your AEB
• Full spring tuning sets available!
• Lower the FPS of your Piston Pump
• More spring options on the way!
INCLUDES:
• 1 Spring of your choice
or
• 1 set of 5 springs for a discount!
PERFORMANCE:
Average FPS (Standard Deviation) with the 12.9 x 225mm barrel

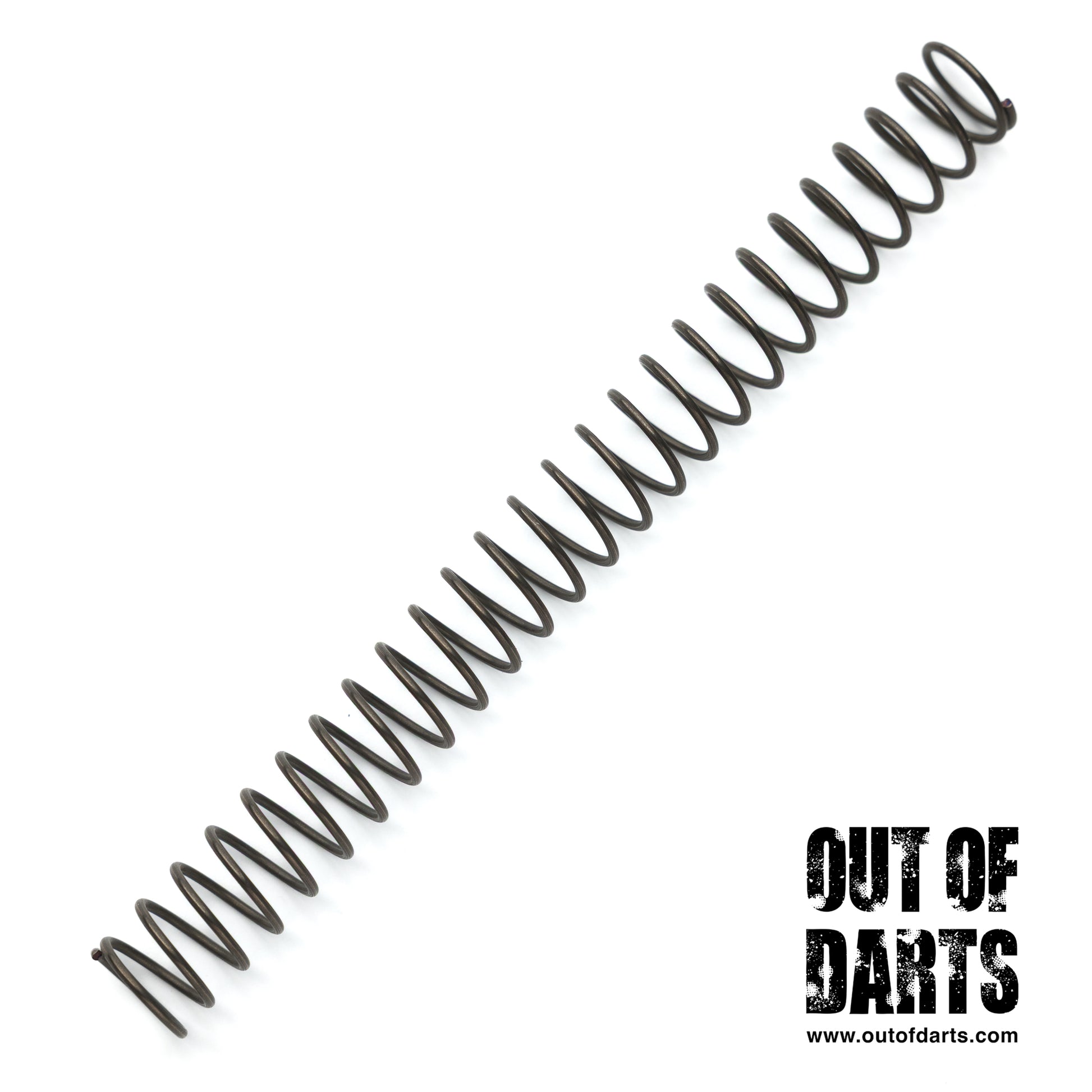

• 53 (20) FPS with a 1.40 x 160mm spring
• 80 (17) FPS with a 1.50 x 160mm spring
• 118 (10) FPS with a 1.57 x 160mm spring (coming soon)
• 141 (8) FPS with a 1.65 x 160mm spring
• 164 (4) FPS with the stock 1.7 x 160mm spring
• 183 (3) FPS with a 1.78 x 160mm spring
Check our full spreadsheet of chronograph statistics!
SPECS:
• Material: USA-made spring-tempered steel
• Type: Compression Spring
• Dimensions:
Spring Gauge: 1.40-1.83mm
Length: 160mm
Outer Diameter: 16mm
Coils: 27
• Squared: at least one end
• Weight: Varies
• SKU: Varies
LINKS:
• Aluminum Barrels
• More X-Shot AEB Mods + Accessories
• More Springs
Share

My friend told me there used to be a 203 fps spring but it seems to not be here
Hi, We've discontinued this spring as it was causing damage to some blasters.
The 203 spring was perfect... The performance beats my expectation, can't wait for a restock to get a few more for my other builds
After firing one mag I could hear the spring was too strong for the blaster, then I took out the spring to see that it bent at a 45 degree angle. Put the original spring back and it worked fine.
Hello,
I'm sorry to hear one of our Springs caused you issues. Please send us an email at orders@outofdarts.com so that we can resolve this.
Piston Pump Springs
Was a little skeptical after reading some of the reviews for the 213 springs. But after using the 203 spring at two different events I can say that it works great! A little rate of fire dropoff, but that is to be expected. Mine hits at around 195-198 with the classic long EX BCAR 2.
