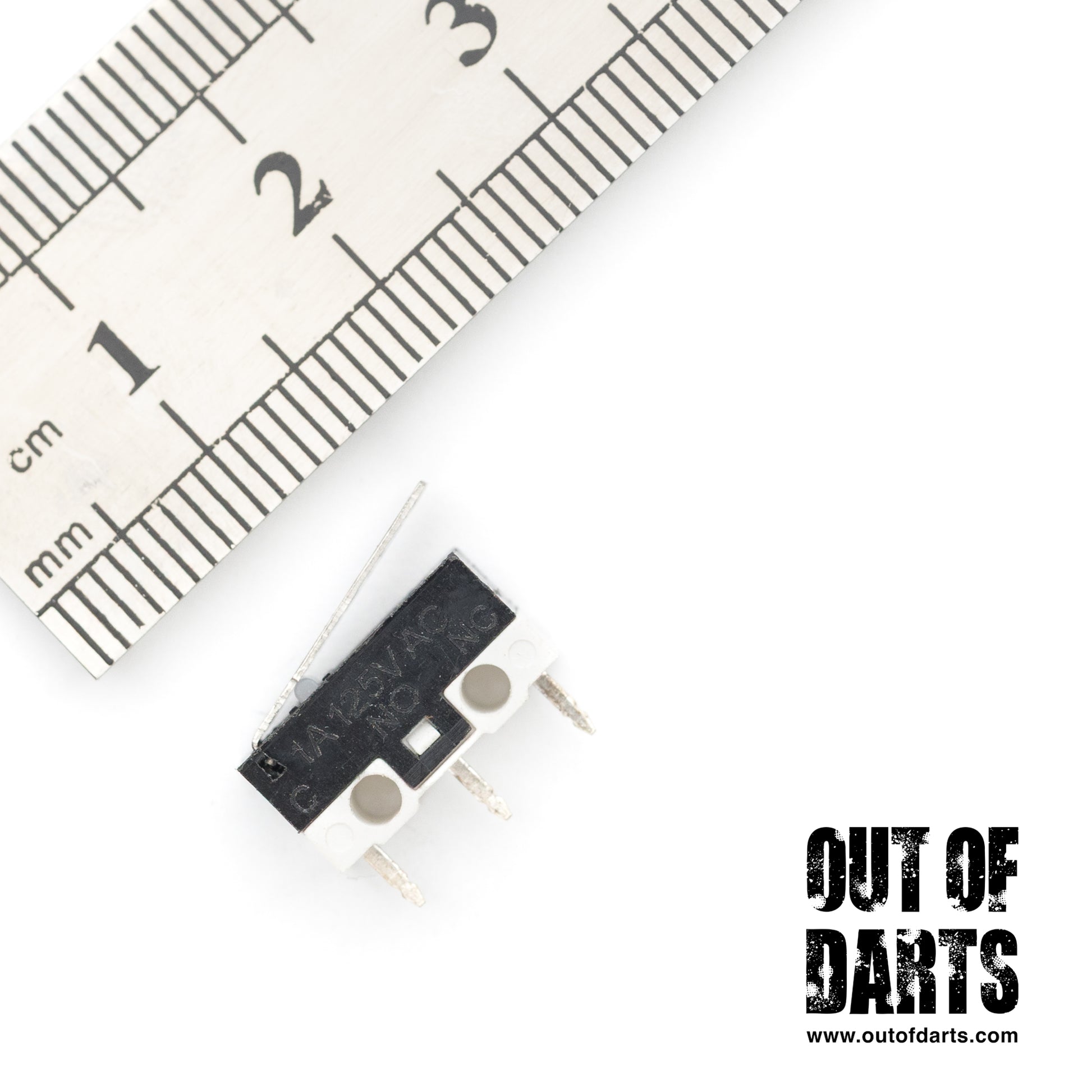

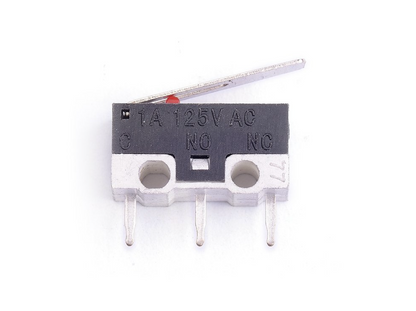

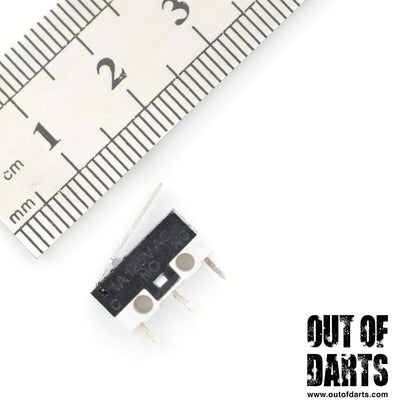

This 1A Mini Microswitch is an ultra-subminiature momentary switch designed for low-current use. Featuring a Single-Pole Double-Throw action and small solder terminals in a low-profile form factor, this switch is best for MOSFET flywheeler builds where space is at a premium or for limit switches in select AEBs. Available in a lever actuator variety to suit your modding needs.
Having trouble finding what you're looking for?E-mail us!
FEATURES: • 1A Mini Microswitch • Ultra-subminiature snap action switch • The smallest switch we carry • Single-Pole Double-Throw • for MOSFET flywheeler builds or AEB limit switches • Lever option only
INCLUDES: • 1 1A Switch
SPECS: • Type: Ulra-subminiature Snap Action • Terminals: SPDT • Current: Up to 1A continuous • Voltage: Up to 3S (12V) • Wiring: up to 22 AWG • Cycles: 1,000 • Materials: Silver-plated copper-zinc, PET/PBT • Dimensions: 12 x 6 x 6mm • Weight: 0.64g • SKU: SWITCH LEVER 1A MICRO
