Eli Wu Flywheel MOSFET Motor-Spanning Board

Eli Wu Flywheel MOSFET Motor-Spanning Board

$13.25 USD
$13.25 USD
Sale Sold out
Options

BACK IN STOCK! New design by Eli Wu.

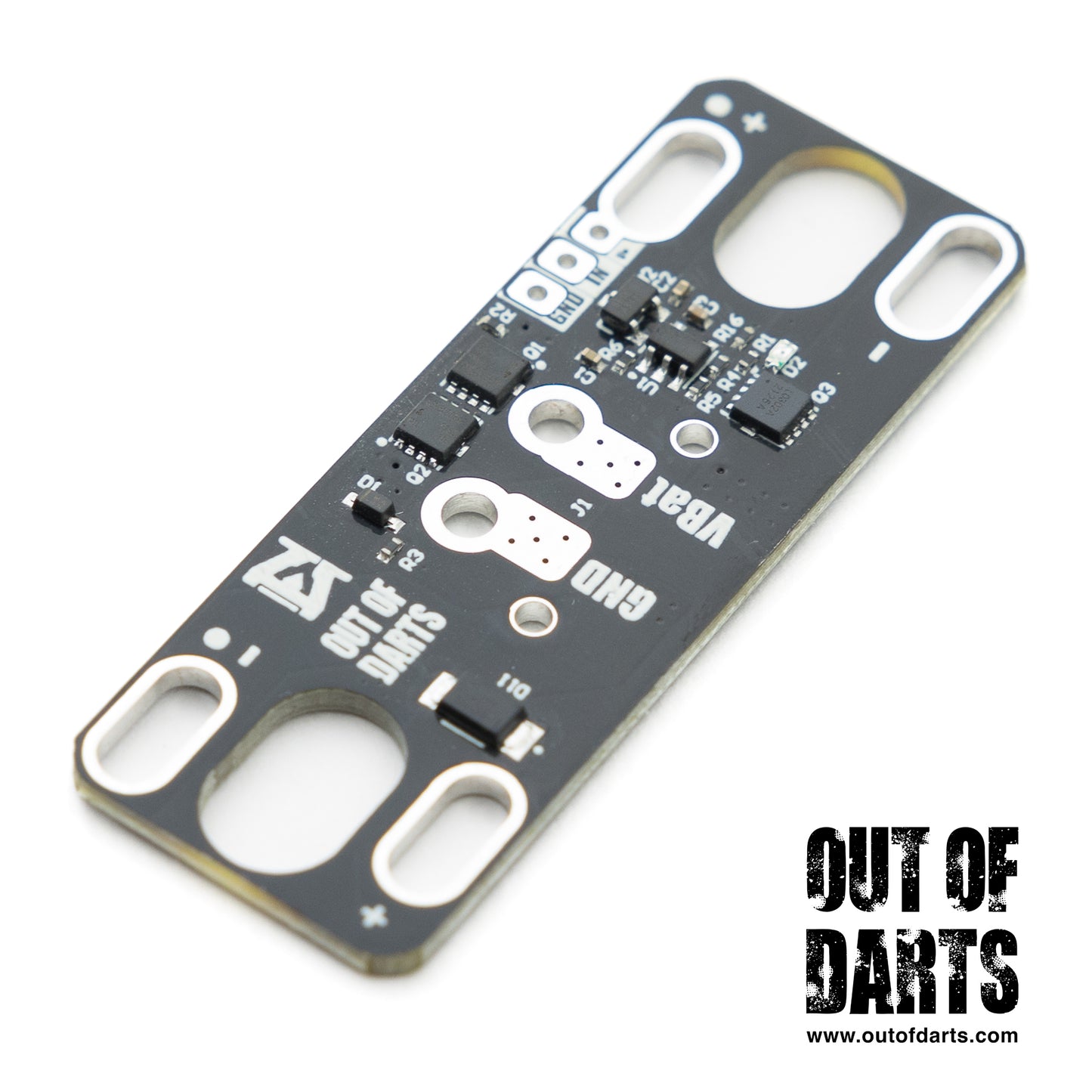

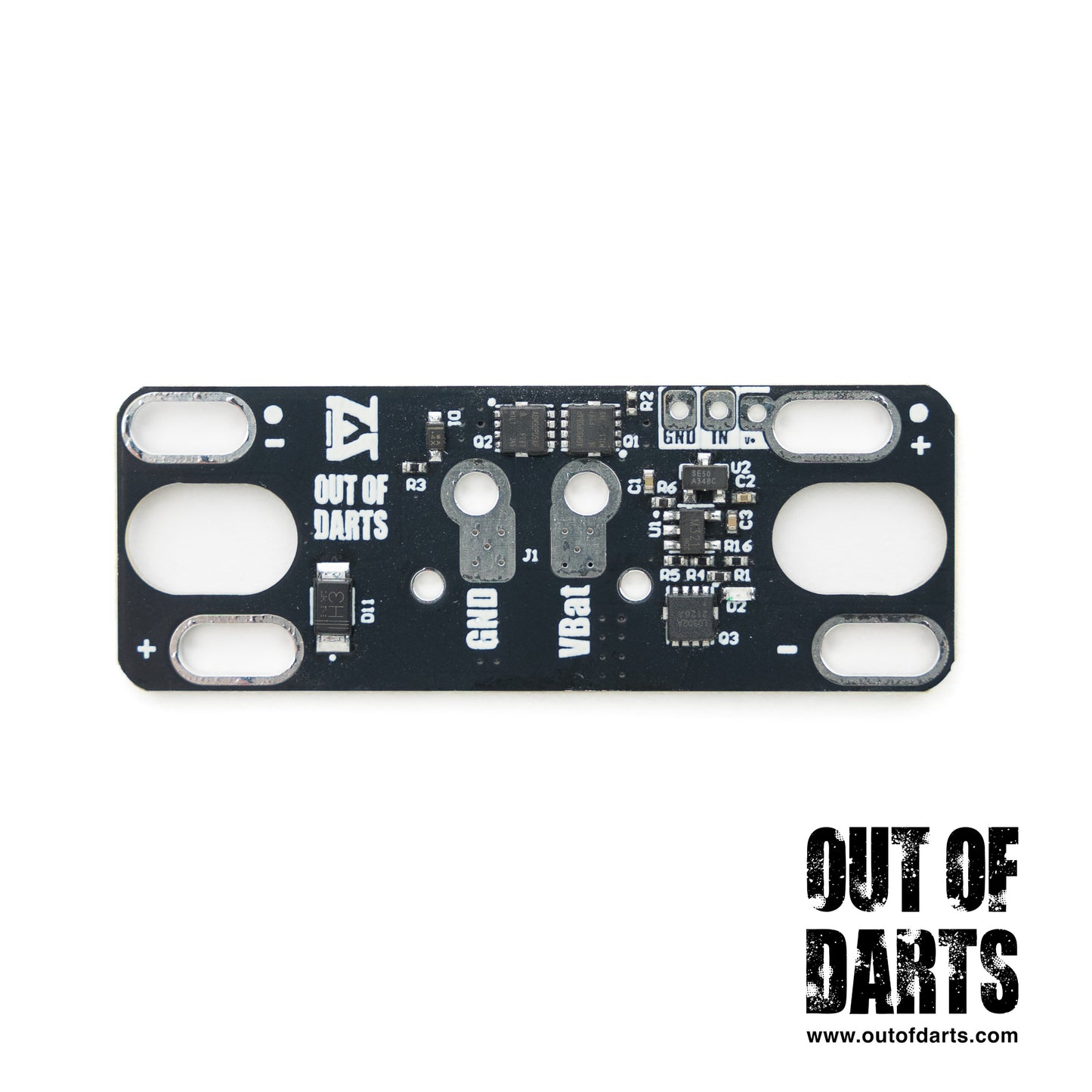

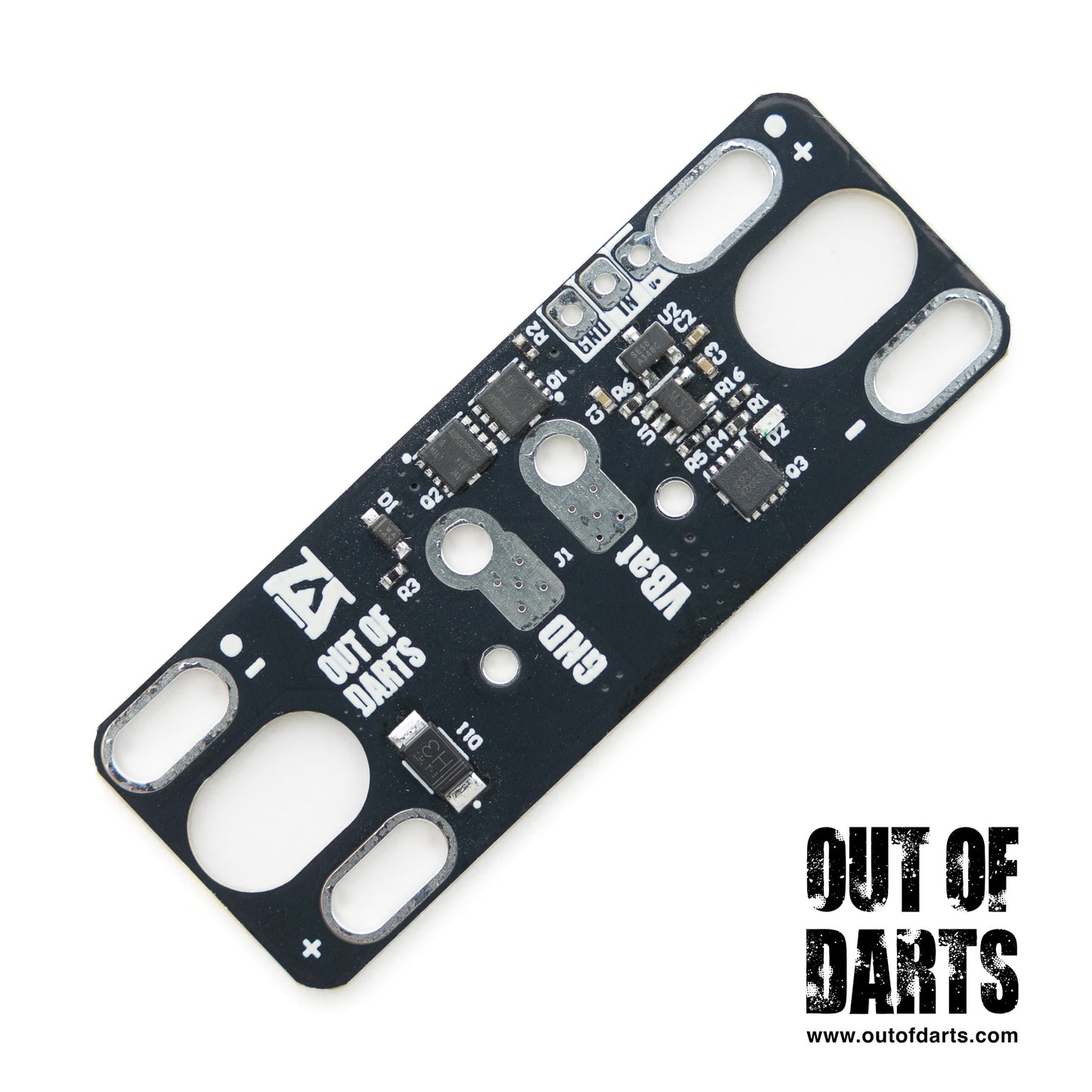

The Eli Wu MOSFET motor spanning board is a redesigned span board PCB that's built to make stock flywheel blasters as easy to mod as possible! There's no need to replace your rev switch; the MOSFET isolates it from the higher voltage components! The board features an optional XT-60U board connector and standard solder terminals, allowing greater flexibility when rewiring your blaster.

FEATURES:
• MOSFET Span Board
• Designed by Eli Wu for Out of Darts
• Solder to motors directly, then to stock switch and battery terminal
• For use in most flywheel dart blasters

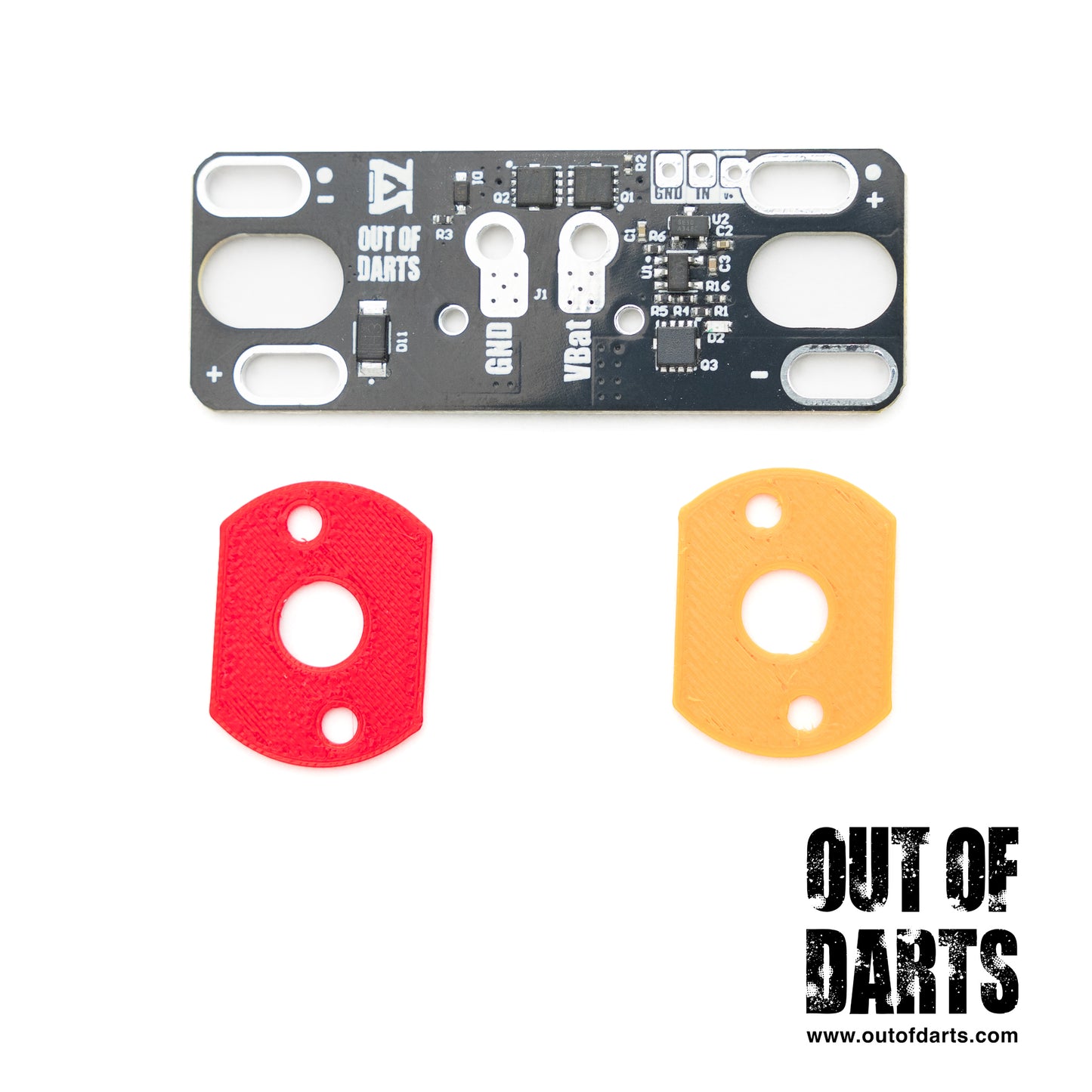

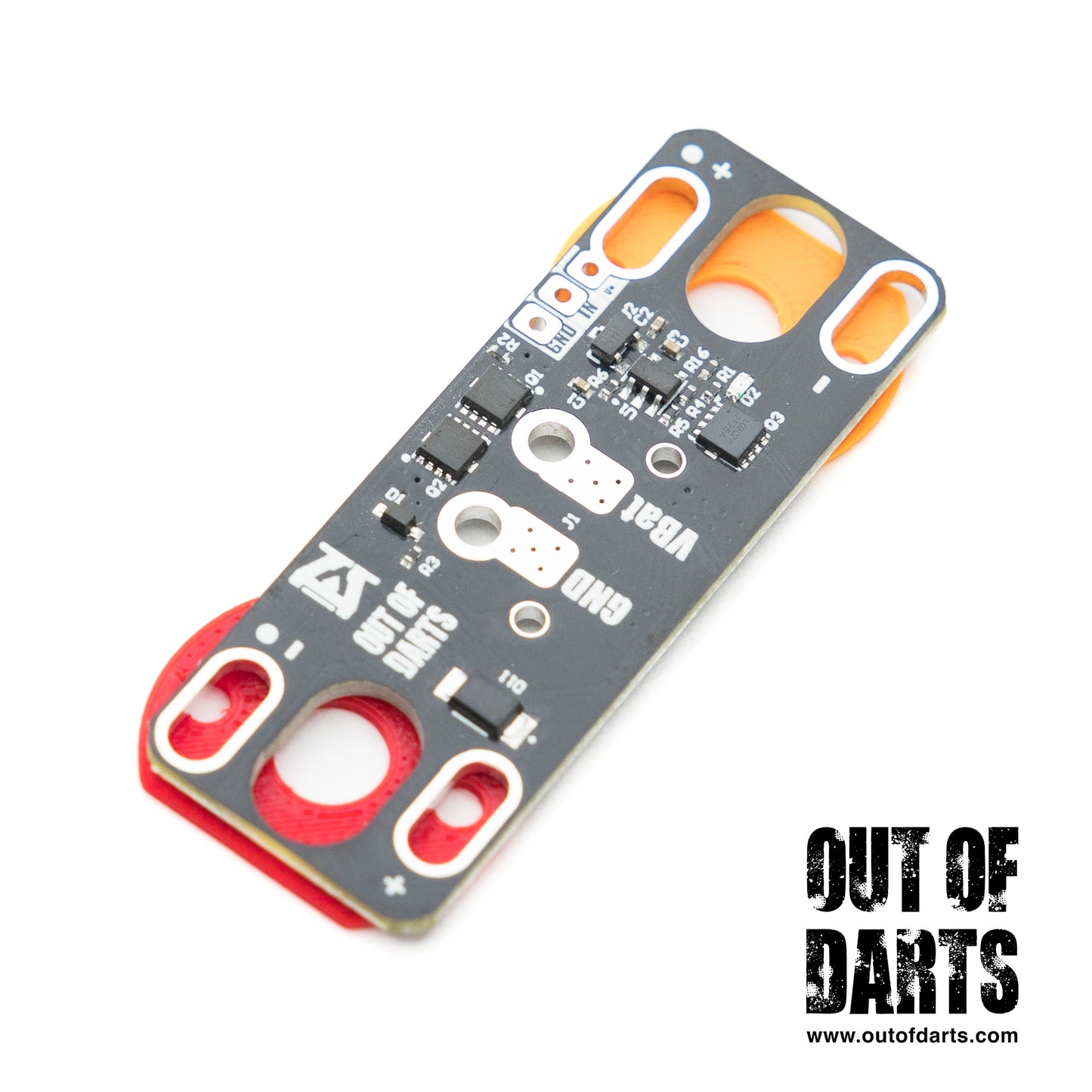

• Includes 3D printed spacers to prevent shorts

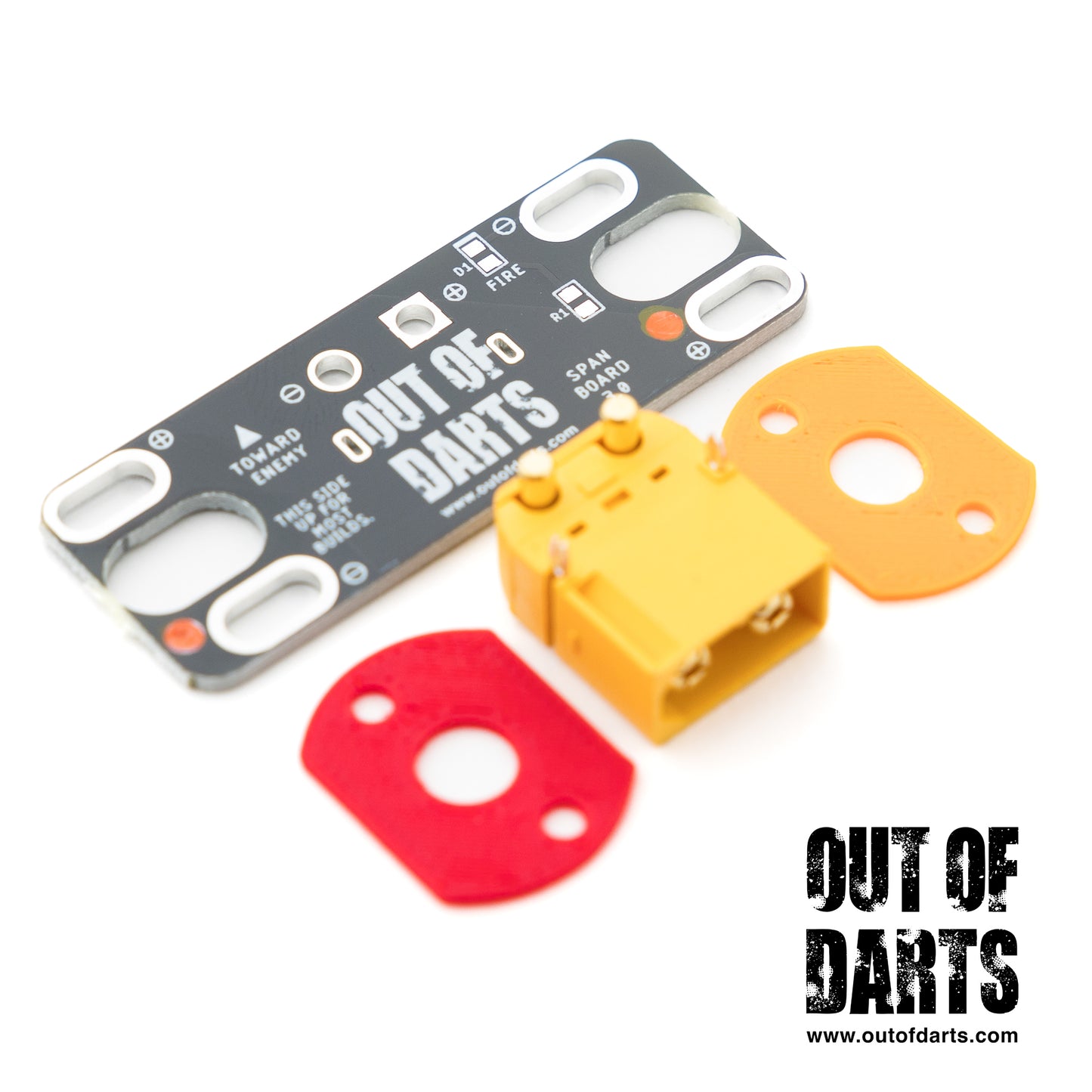

• Optional XT60U makes cage swapping and maintenance easier
• Compatible with all standard flywheel cages
• Not compatible with canted/tilted cages
• Not compatible with PWM boards

Note: When installing, match red dots on your motors to the dots on the board.

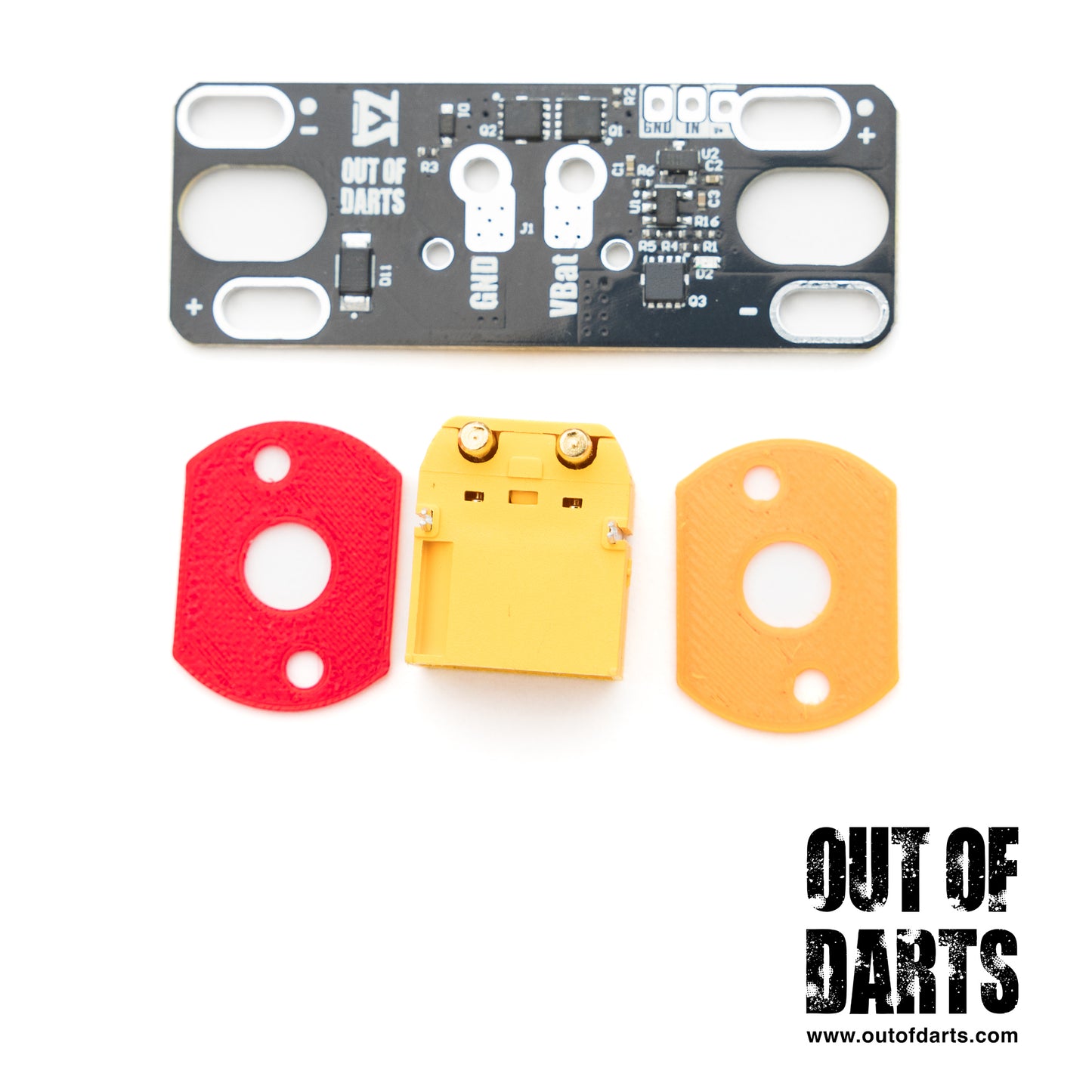

INCLUDES:
• 1 MOSFET Span Board*
• 2 3D-printed motor spacers
• 1 XT60U board connector (optional)

*Due to design changes, the new MOSFET span boards may appear different to photos shown.

SPECS:
• Material: Printed Circuit Board
• Rating: 1 pair (2) 130-sized brushed motors*
• Compatible Crush: 37-44mm (shaft-to-shaft)
• Dimensions:
• Weight:

*A note about motor and MOSFET ratings; Our community often overestimates motor current ratings, as many of these are done on paper. Stall current is extremely brief. Because of this, we have rated each of these MOSFET products by the number of motors they can support. We warranty them for this use, rather than giving specific ratings.

LINKS:
• Pre-soldered XT-60 battery connectors
• Optional switch terminal wiring (allows for plug on board connection)
• Standard Span Board
• More Boards + Electronics

View full details

Customer Reviews

Based on 8 reviews
50%
(4)
50%
(4)
0%
(0)
0%
(0)
0%
(0)
M
Matthew G.
A great beginner product.

It makes soldering easy but comes at the cost of worse conductivity and space, which makes it hard to fit in most platforms.

N
Neil
Did not fit in Modulus ECS 10

Another review here said this worked in the Modulus ECS 10, the only way I feel that working is but cutting the shell because it does not fit mine

User picture
B
Brell C.
A Greeat Time Saver that Protects your Blaster

Love this Mosfet board! Makes soldering easier and works as a mosfet to protect your circuits. Doesn’t work on certain crush alignments when using daybreak cages due to the position of the motor leads/posts compared to the holes in the board for the motor leads/posts. Aside from that, great mod part that works very well and is a huge time saver!!!

B
Billie C.W.J.
High hopes

Was not able to make work. To be fair, I’m not a good solderererer. I took it back off and totally reworked the whole system with new high powered switches and 16g wires and ended up putting the board in a pile for a possible future build

J
Joon T.O.
Very satisfied, I like very much!

If you are going to use high current motor, you should use this board. You can use space very efficient. I llike this very much.
