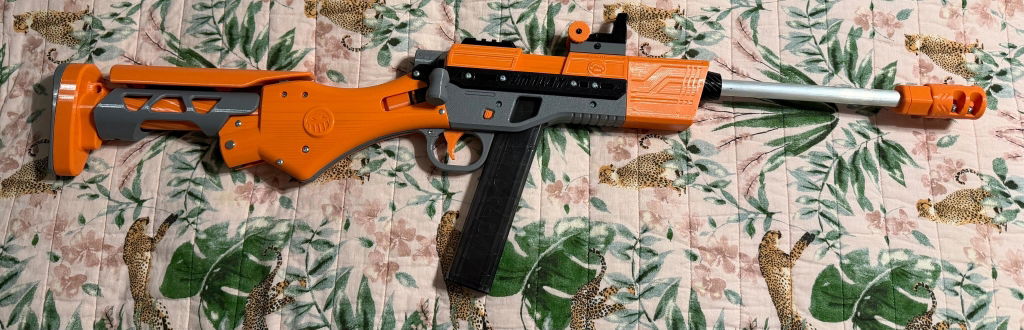

The SMILEY is a 3D-printed bolt-action springer designed by Mighty Shrub, heavily remixed from the yet-to-be-released MHP Wrenfield MK-3. Featuring a slim-angled "Nightingale" magwell and plunger-in-grip design, this blaster packs quite a bit of power in its compact form factor. Additionally, the Smiley features toolless spring and barrel swaps for customizable FPS on the go.
This hardware kit includes everything you need to print the 3D parts and assemble this blaster yourself with Sillybutt's O-ring breech remix (3D files available below).
FEATURES: • SMILEY Hardware Kit • Compact 3D-printed bolt-action springer • Designed by Mighty Shrub • Designed in collaboration with MrHeathPants • Unique plunger-in-grip design • Swappable springs and barrels • Compatible with slim-angled "Nightingale" magazines
INCLUDES: Everything you need to print and assemble this blaster, including: • 1 Spring of your choice • 1 0.509 x 12in aluminum barrel • 1 M8 Socket Head Screw + Nylock Nut* • 1 Takedown Pin • 2 Dash 012 O-rings** • M3.5 Thread-Forming Screws • 2mL Slug Slym
*CNC-machined bolt handle is optional, but highly recommended for durability **This kit currently features an O-ring breech seal. For the original brass breech design, brass tubing is sold separately.
PERFORMANCE: Average FPS (Standard Deviation) with the 0.509 x 12in barrel* • 131 (17) FPS with the 1.83 spring • 150 (12) FPS with the 1.91 spring • 188 (6) FPS with the 2.03 spring • 205 (6) FPS with the 2.16 spring • 220 (7) FPS with the 2.20 spring
*No spacers were used. Clickherefor a complete list of tested performance averages.
for some reason the internal parts, the orange ones, printed weird, with weird layer lines, anybody have any clue why? I haven't tested mine yet, but I shot someone else's, and it is great!
A
Anonymous
Absolute Monster
Shoots fast and accurate, feels great in the hand and works as intended. Could not be happier with this monster of a blaster.
D
Daniel
Great
A
Anonymous
Greatest blaster ever
Shoots very fast and accurate great magazine choice and would recommend having venom pro as sidearm
K
Kyle
Great Kit
Had no issues when assembling the blaster with the hardware kit. I got within the posted FPS average for the 2.16x140mm (205 FPS) and 2.20x140mm (220 FPS) springs. As others have mention the spring retention pin is about 1/16th of an inch too short, but it is long enough to be functional and stay in the blaster. You can get a 3/16" x 1 9/16" clevis pin if you want it to sit flush on the other side.
