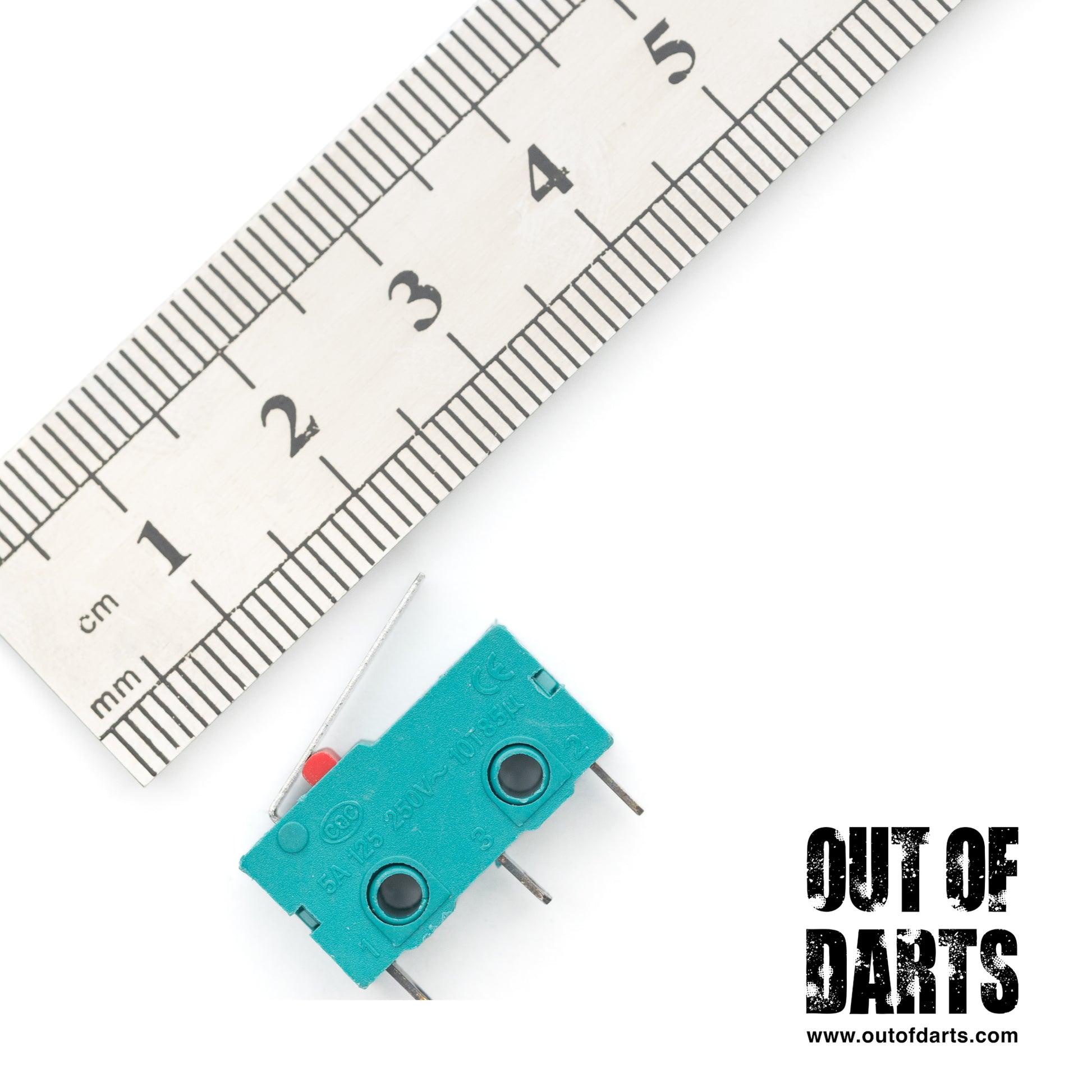

Worker 10A Lever Microswitch

These 10A microswitches are subminiature momentary switches Worker sourced for their Dominator full-auto kit. Designed for medium-current use, with a Single-Pole Double-Throw action and large solder terminals, this switch is easy to solder into small electric blaster circuits without requiring a MOSFET.

Having trouble finding what you’re looking for? Email us!

FEATURES:
• Worker 10A Microswitch
• Subminiature snap action switch
• Single-Pole Double-Throw
• Easy to solder
• No MOSFETs required!*
• Lever option only
• Compatible with most 130 hobby motors*

*Some 180 motors may require a MOSFET or 21A switch for best operation

INCLUDES:
• 1 Worker 10A Switch

SPECS:
• Type: Subminiature Snap Action
• Terminals: SPDT
• Current: Up to 10A continuous
• Voltage: Over 4S (16V)
• Wiring: up to 16 AWG
• Cycles: 6,000
• Materials: Silver-plated copper-zinc, PET/PBT
• Dimensions: 20 x 15 x 6.45mm
• Weight: 2.08g
• SKU: SWITCH LEVER 10A GREEN
