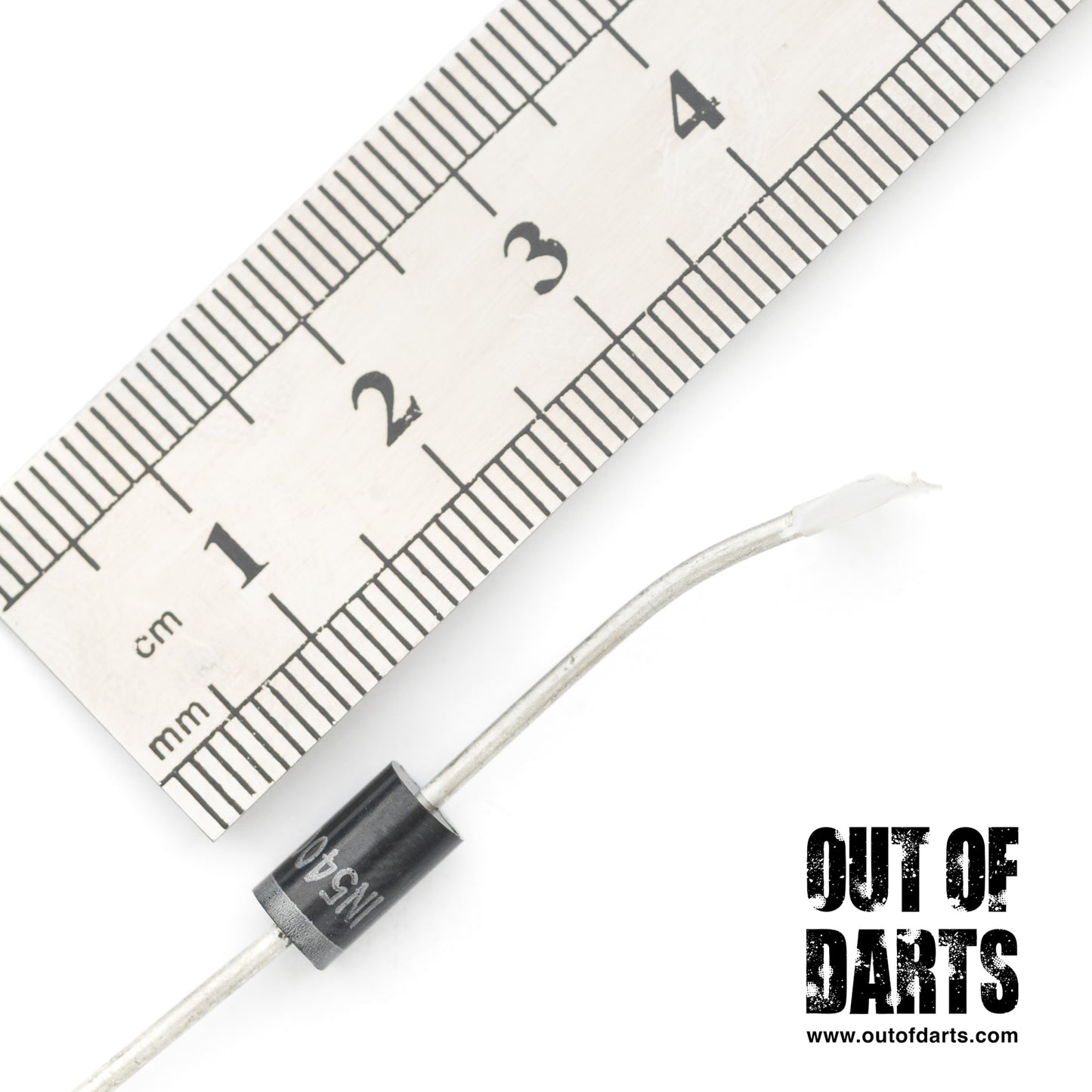

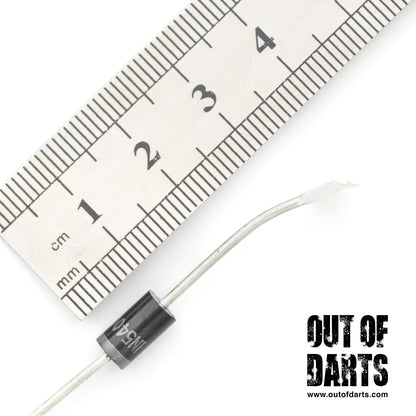

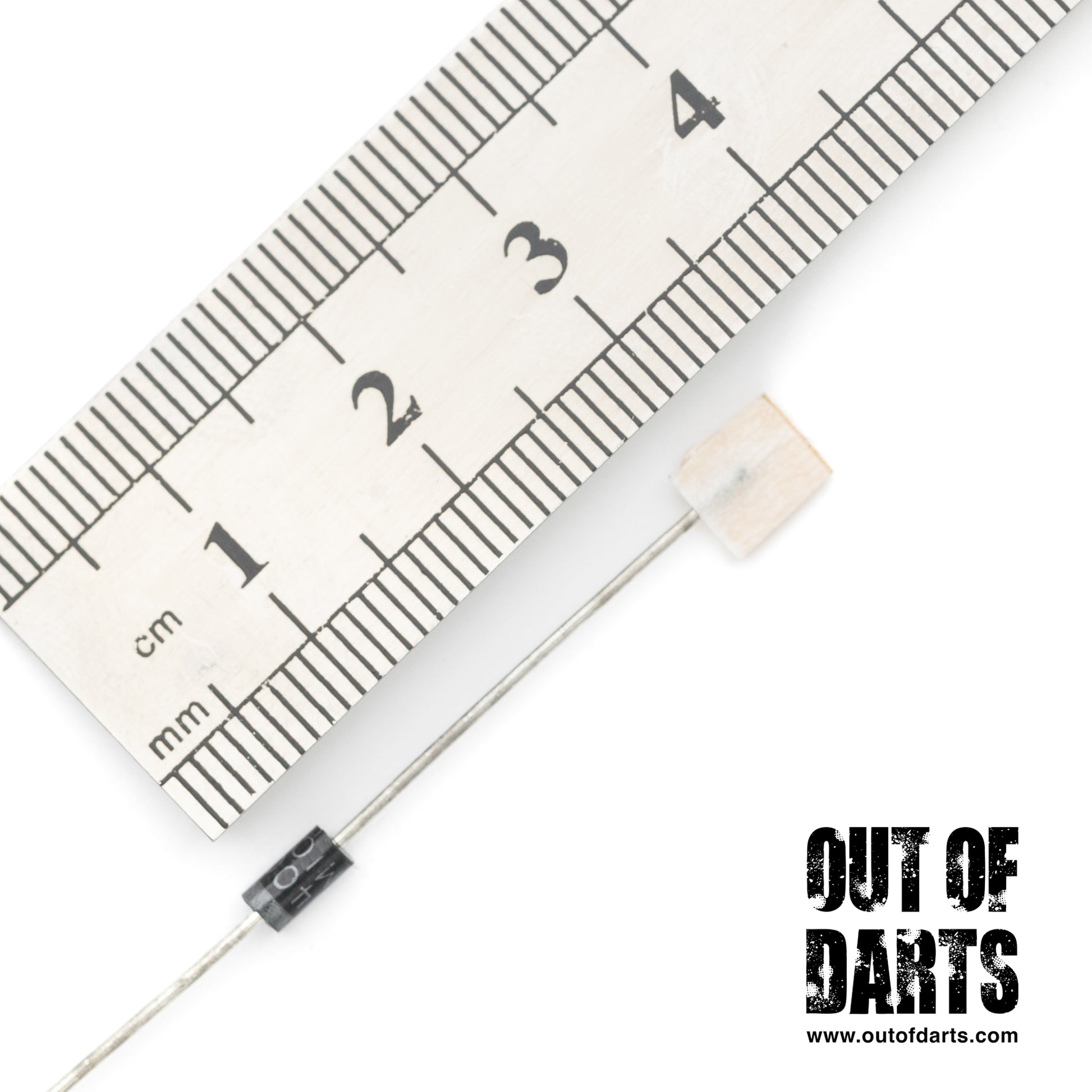

These Rectifier Diodes are basic, general-purpose circuit protection components in electronics. In blasters, they act as a flyback or clamping diodes, safely draining excess voltage that could damage more sensitive circuit components. This is especially important in “smart” brushless flywheelers with solenoid pushers like Momentum, Spirit, and GNK-200.
FEATURES: • Rectifier Diodes • Basic circuit protection • Dissipates excess voltage from the solenoid • Protects sensitive electronics • Compatible with the Neutron Solenoid
INCLUDES: • 1 Rectifier Diode of your choice
SPECS: • Material: Silicon, molded epoxy, matte tin leads (lead-free) • Peak Reverse Voltage (Vrrm): 50V • Average Rectified Current (Io): 1.0-3.0A • Max Reverse Current (Ir): 0.5mA • Max Forward Voltage Drop (Vf): 1.2V • Dimensions: Diameter: 5.3mm Length: 9.5mm • Weight: 0.8g • SKU: E02_2B;DIODE_1N5400
