The Amass XT60 Connector is a DC power terminal commonly used in the nerf-modding hobby. With gold-plated brass conductors and a polarized nylon-insulated sleeve, this durable, low-resistance connector is commonly used to plug in LiPo batteries and select internal modular connections, like swappable flywheel cages. Additionally, its oversized wire cups make it easy to solder and heat-shrink.
Below are all our currently available XT60 connectors, available in a variety of types to purchase for maintenance or repair of select blasters, or for custom mod projects. Having trouble finding what you’re looking for?Email us!
FEATURES: • Amass XT60 Connector • DC Battery Power Terminal • Low-resistance gold-plated conductors • Durable Nylon insulation • Safer Polarized connection • Higher Amp ceiling than XT30
INCLUDES: • 1 XT60 connector in the type of your choice

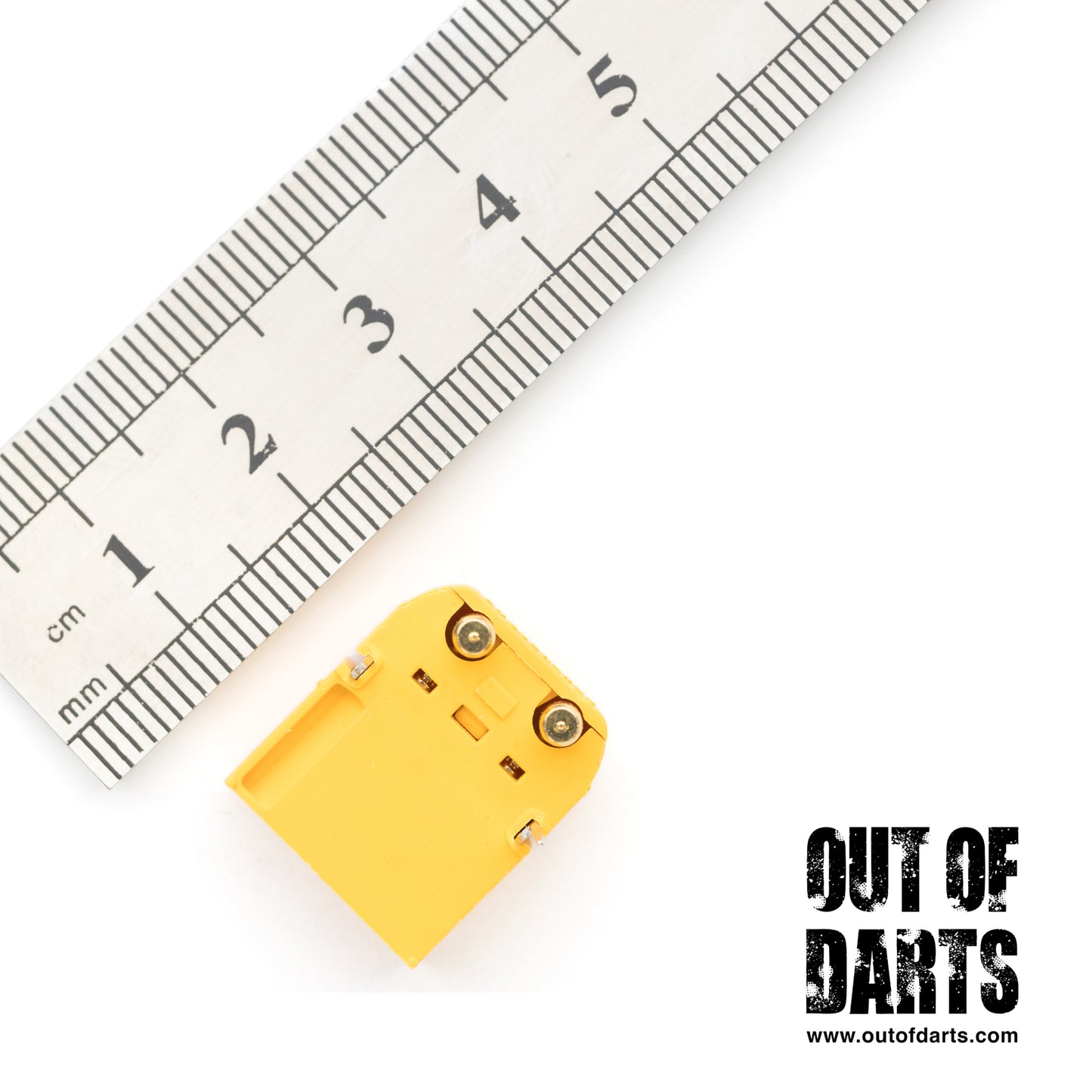

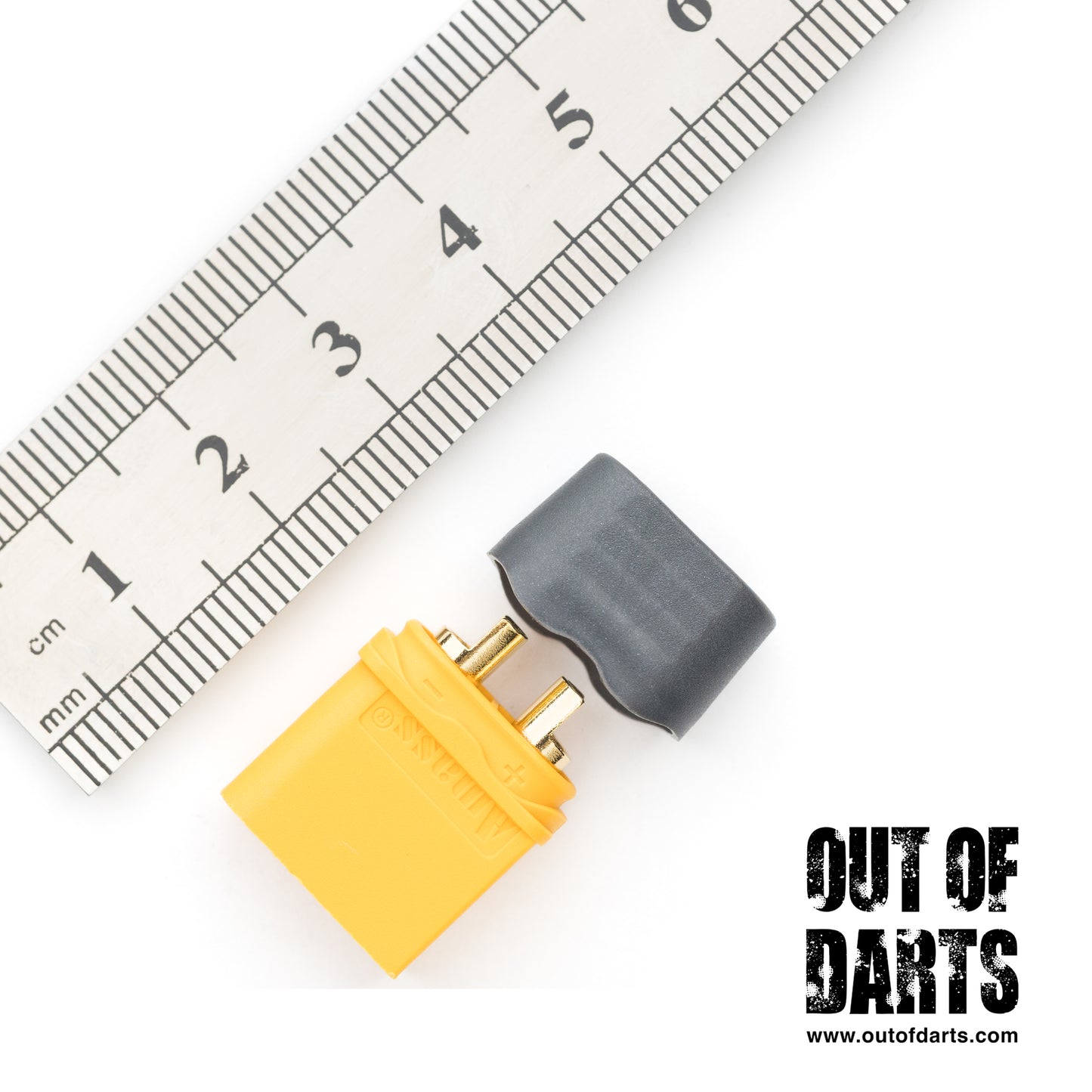

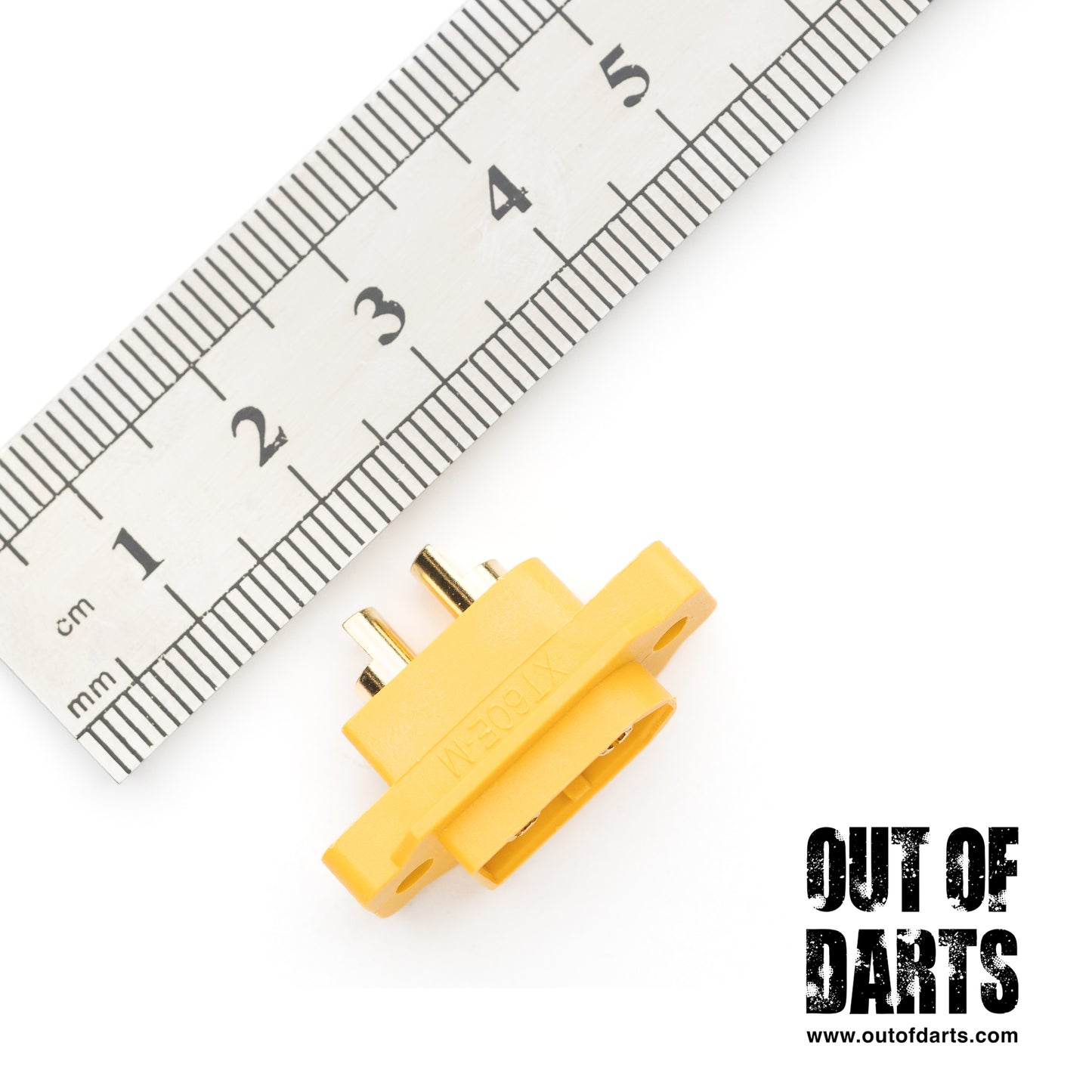

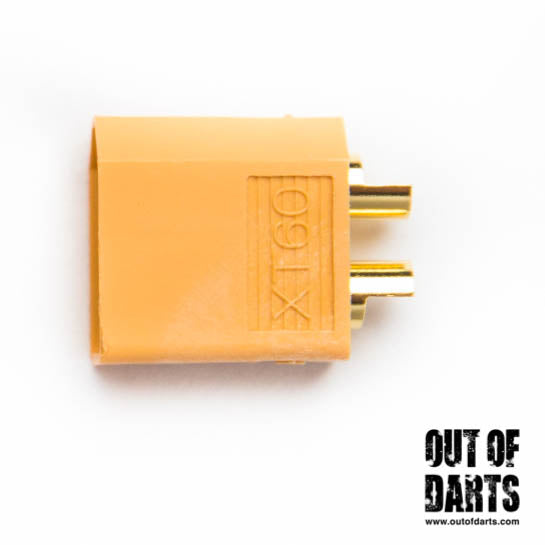

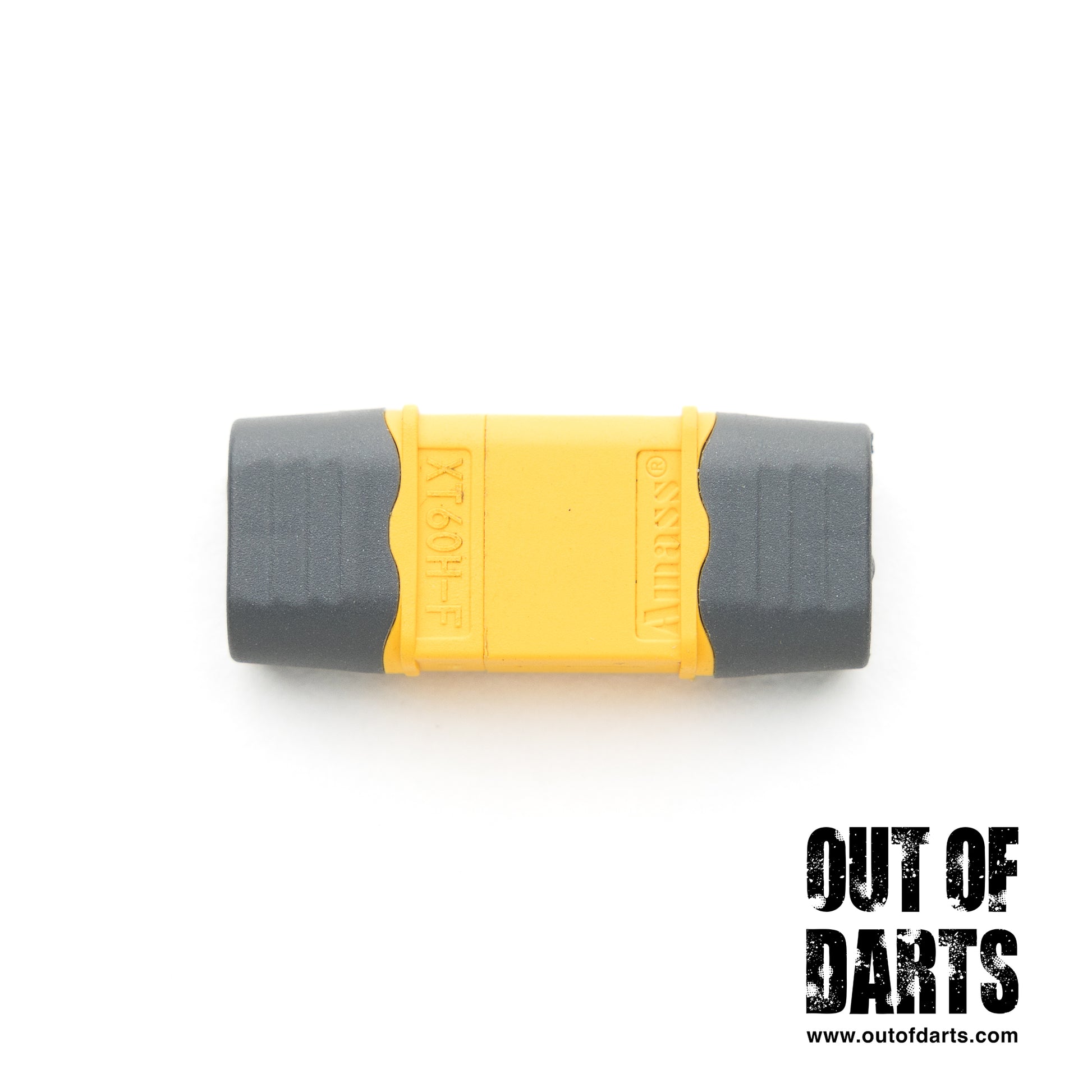

COMPATIBILITY: • XT60: Standard wire terminal • XT60H: Standard wire terminal with strain relief caps • XT60E1: External shell mount • XT60PW: 90-degree PCB mount
SPECS: • Current: Up to 60A • Voltage: Over 4S (16V) • Wiring: up to 12 AWG • Materials: Gold-plated Brass, Nylon • Dimensions: ~23.8 x 16.4 x 9.2 mm • Weight: 1.74g • SKU: CONNECTOR XT60
