Brass Heat-Set Threaded Inserts are the gold standard for assembling and securing plastic parts together. When installed, the serrated outer edges grab the plastic locally melted around them, creating a reliable, repeatable threaded joint to screw into again and again. Available in a variety of the most common sizes for 3D-printed blaster builds (and a few uncommon sizes too). Organized by thread size and length.
Having trouble finding what you’re looking for? Email us!
FEATURES:
• Brass Heat-Set Threaded Inserts
• Melt-in metal screw joint for plastic parts
• Reliable, repeatable connections
• Designed to be installed with a soldering iron
• M16 x 10mm Inserts can be installed with CA glue
• Available in multiple common (and uncommon) sizes
INCLUDES:
• 1 Heat-Set Insert in the size of your choice
COMPATIBILITY:
• M3 x 3mm: Halo M6G
• M3 x 4mm: Blitz + Riot
• M3 x 6.4mm: Breacher, Juno, Flycore
• #8-32 x 0.312in: Breacher
• #10-32 x 0.4375in: SLAB, Excalibur
• M5 x 7mm: Fidlock HOLD-ster
• M16 x 10mm:
3D DESIGN NOTES:
See photos for Fusion 360 dialog example.

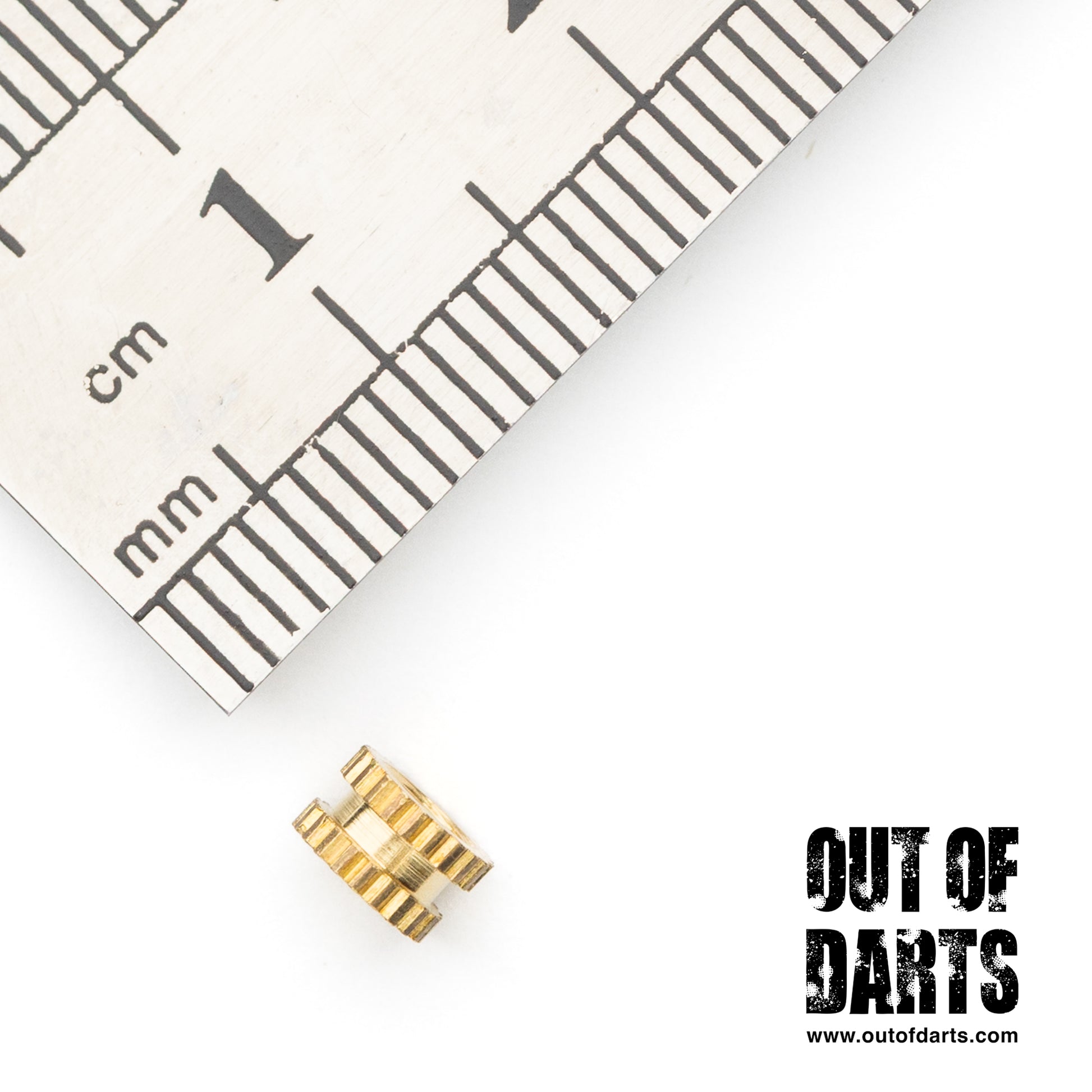

• M3 x 3mm: 4.9mm hole diameter, 0 degree taper

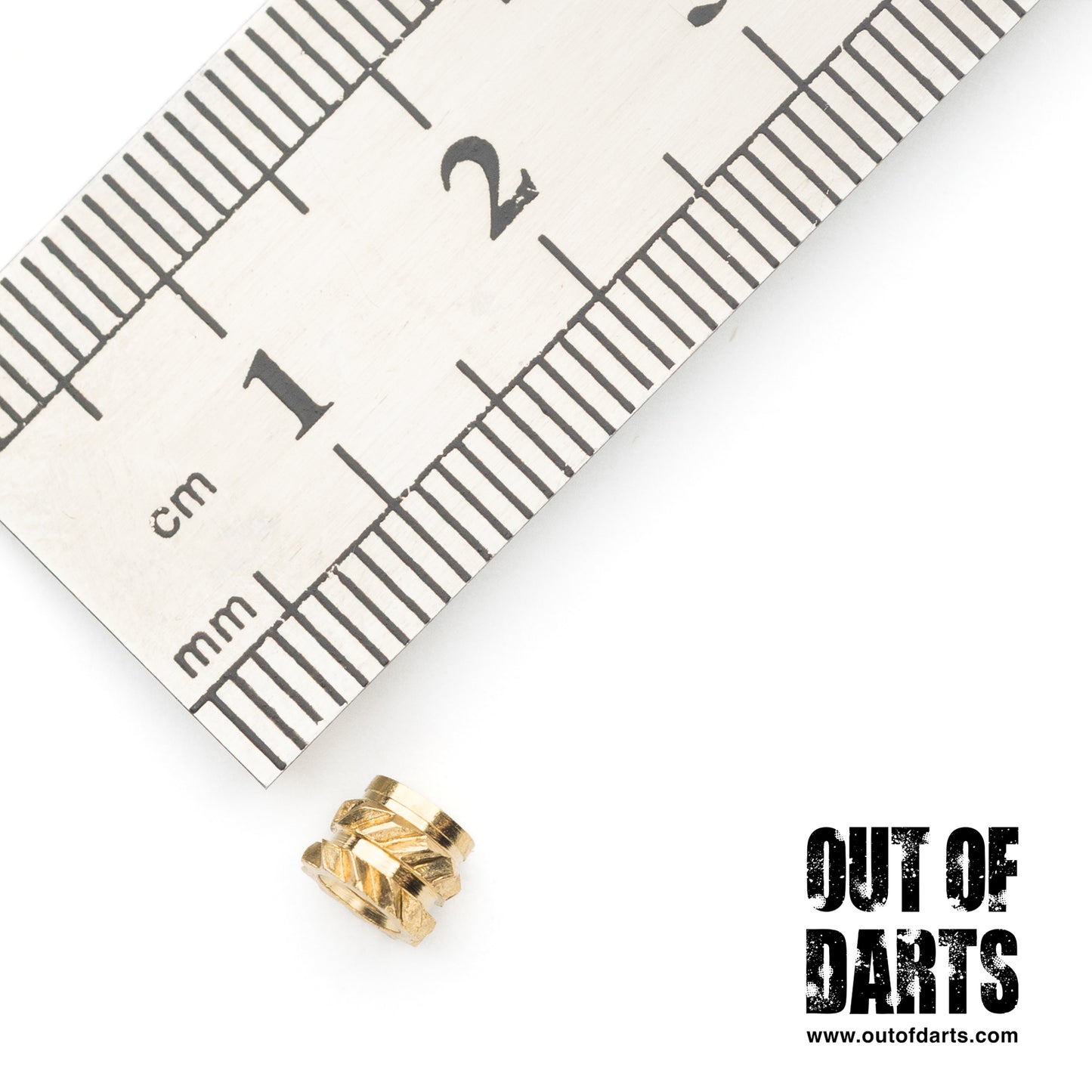

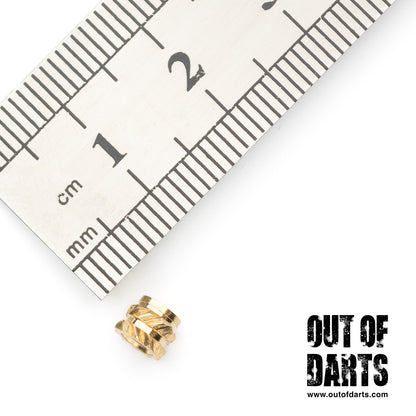

• M3 x 4mm: 4.9mm hole diameter, -4 degree taper

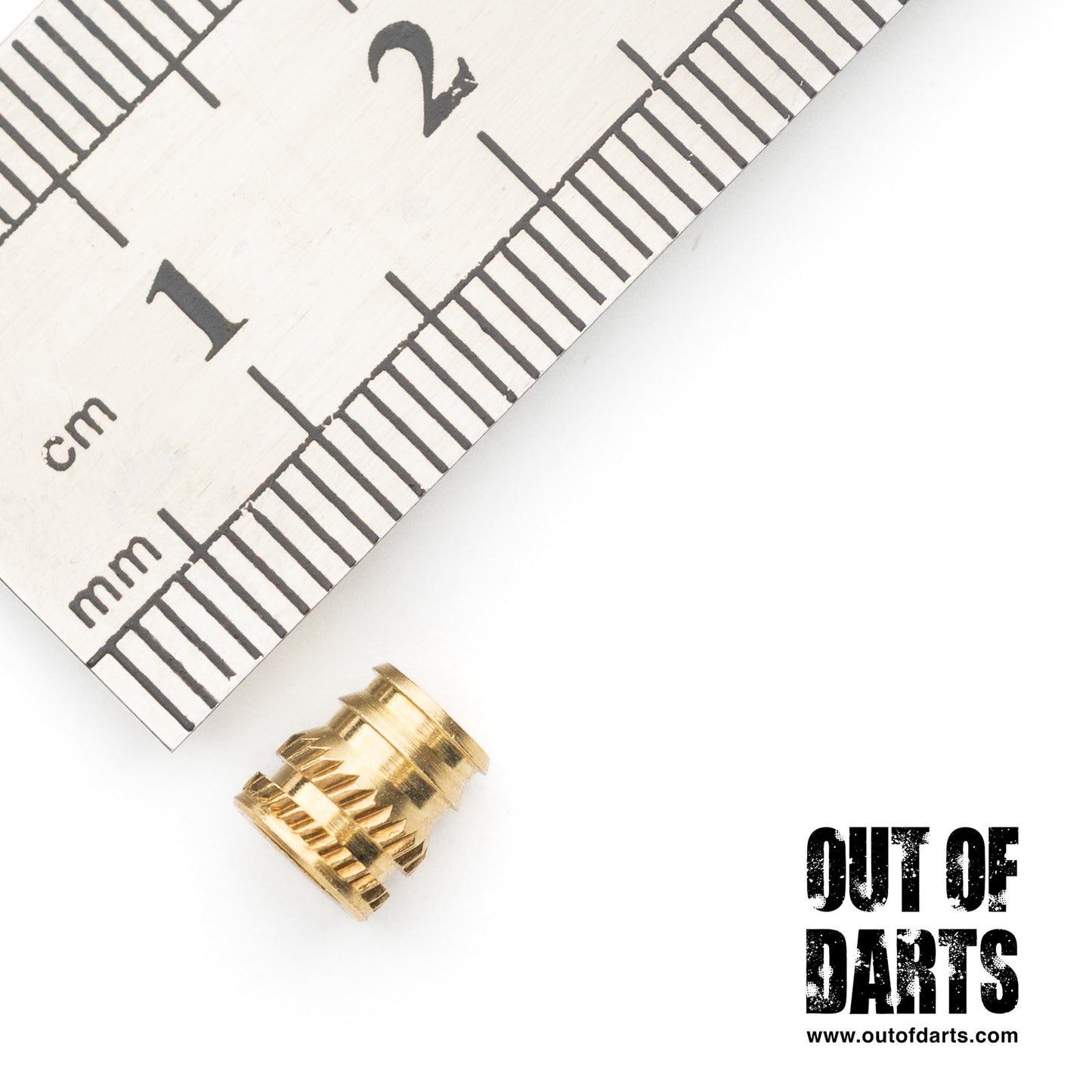

• M3 x 6.4mm: 5.6mm hole diameter, -4 degree taper

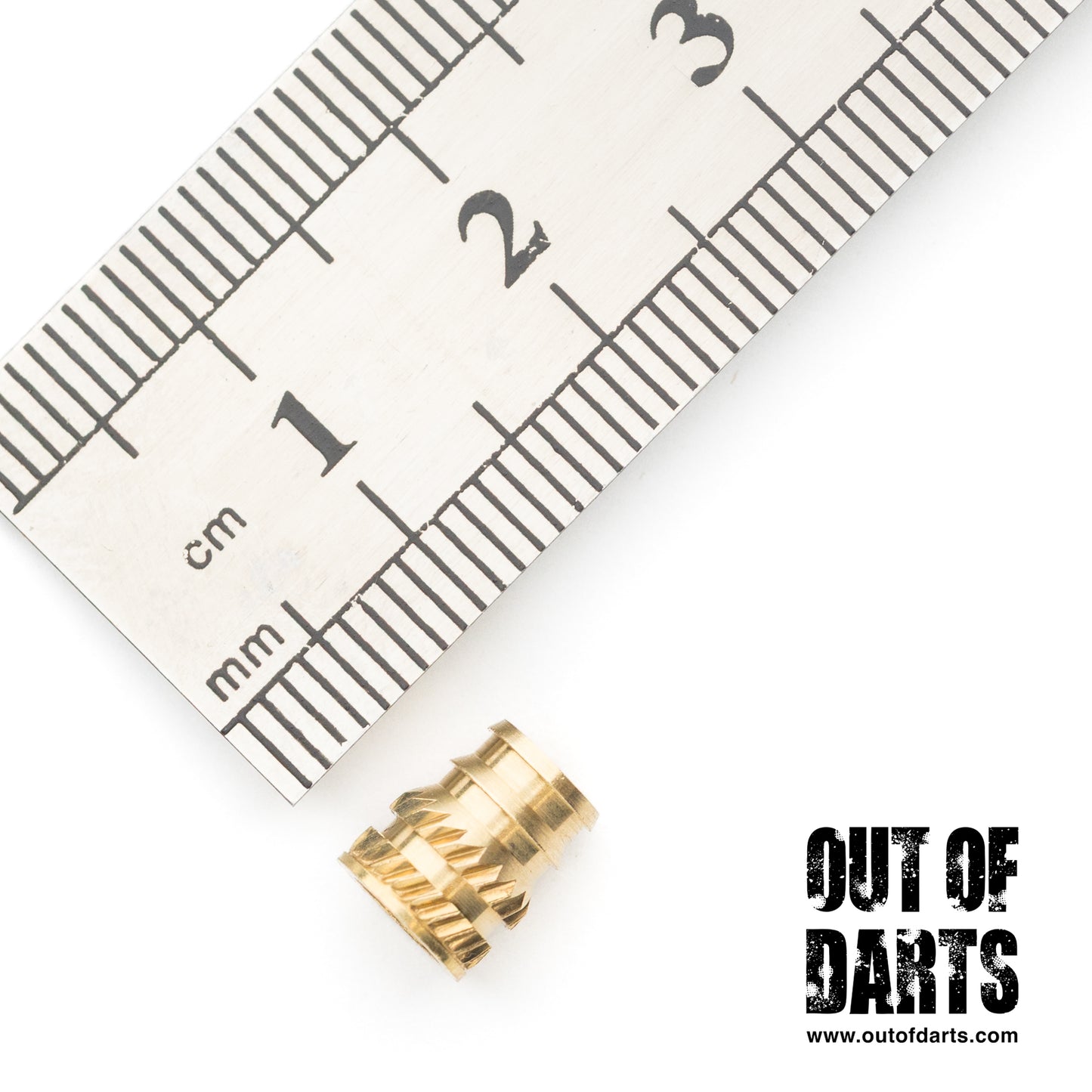

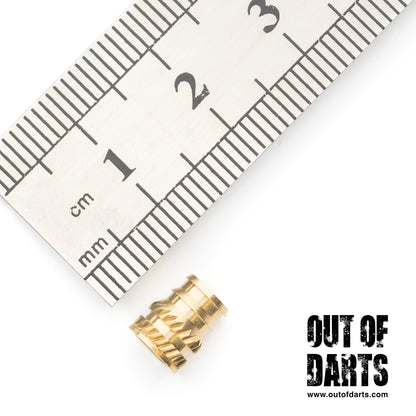

• #8-32 x 0.312in: 6.25mm hole diameter, 7.92mm depth, -8 degree taper

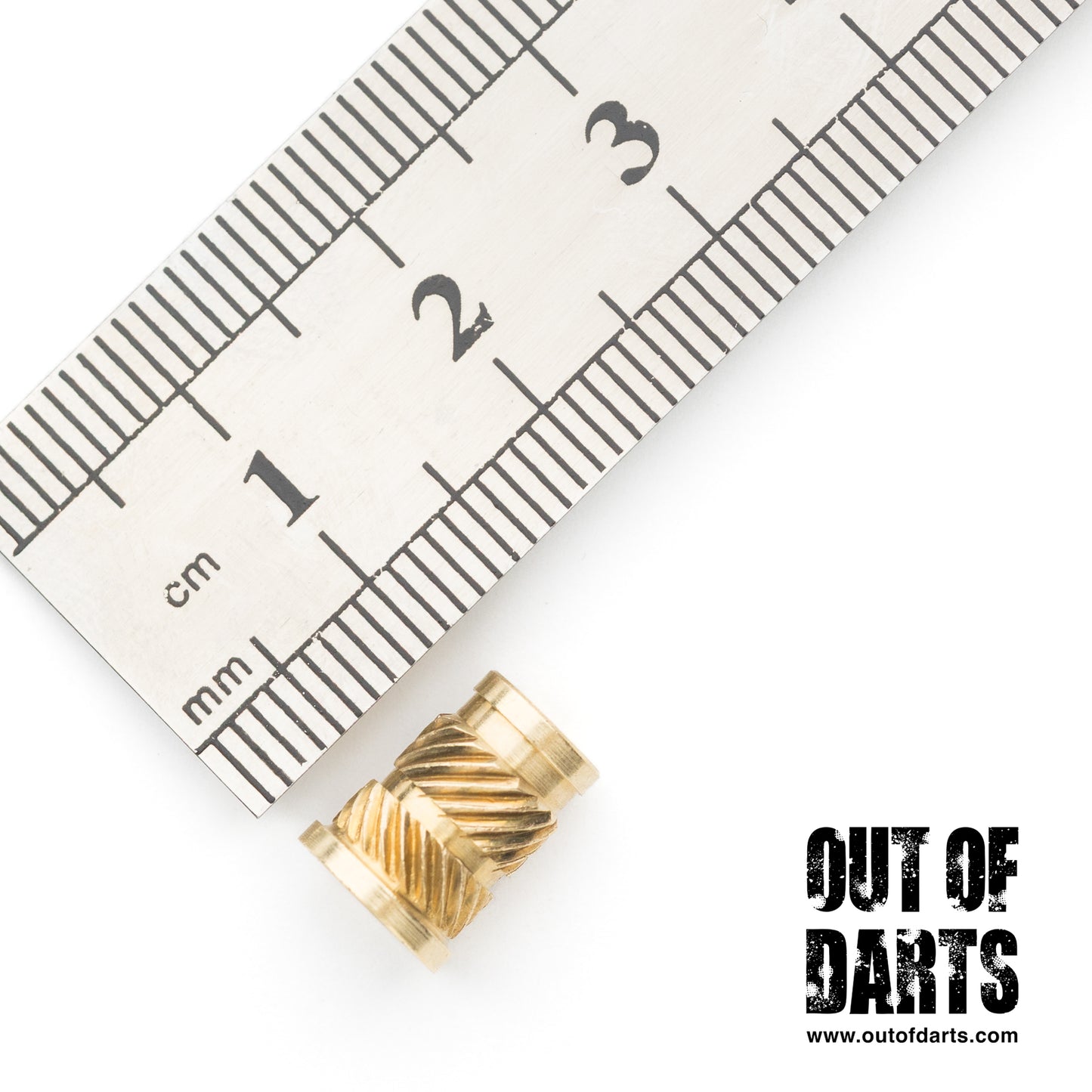

• #10-32 x 0.4375in: 7.3mm hole diameter, 11mm depth, -3 degree taper

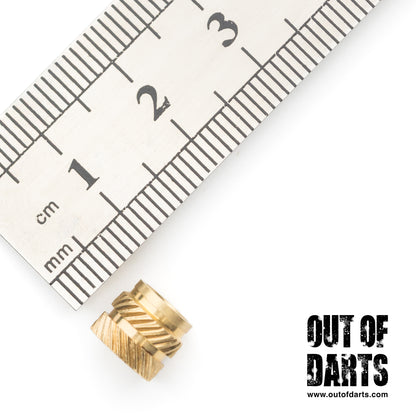

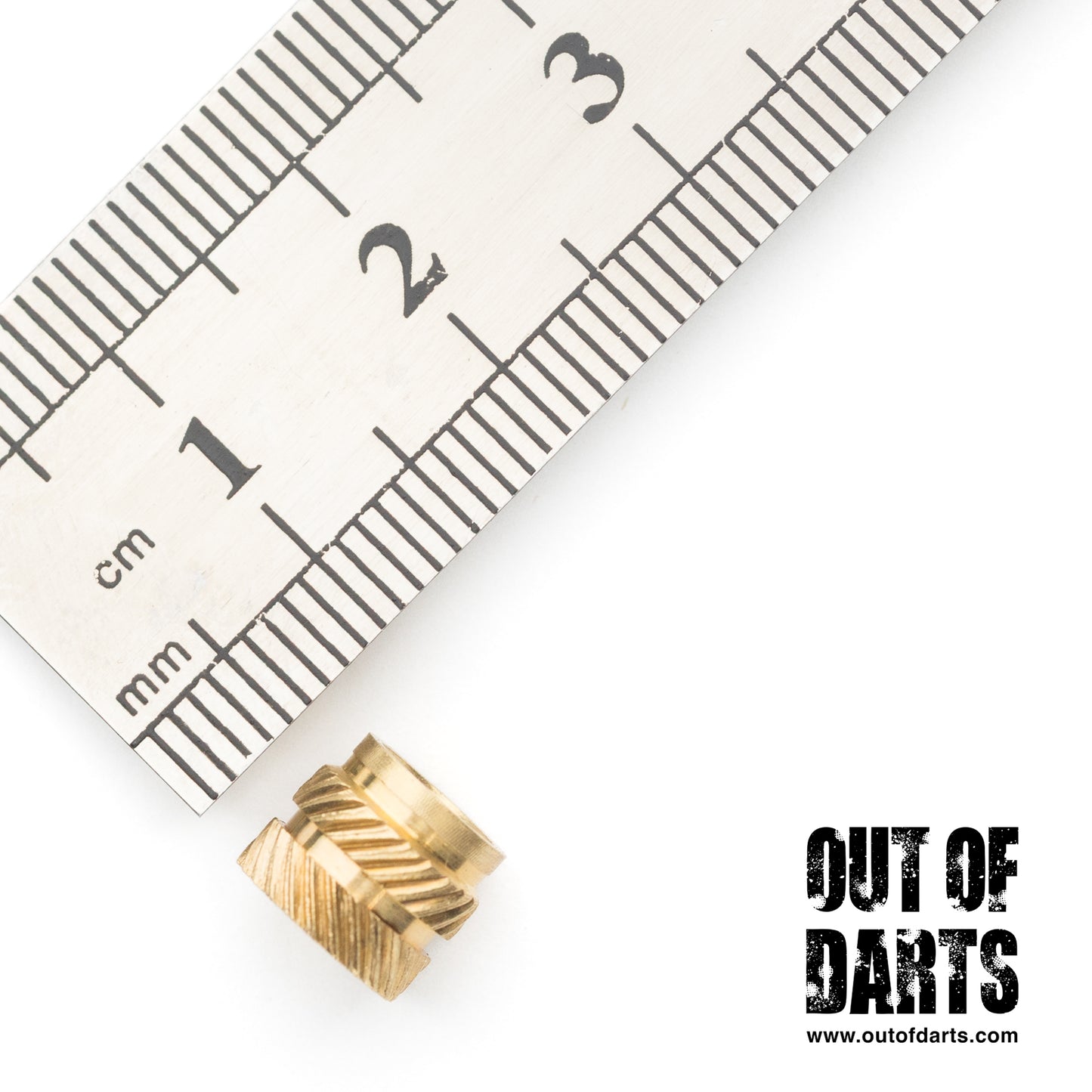

• M5 x 7mm: 7mm hole diameter, -4 degree taper

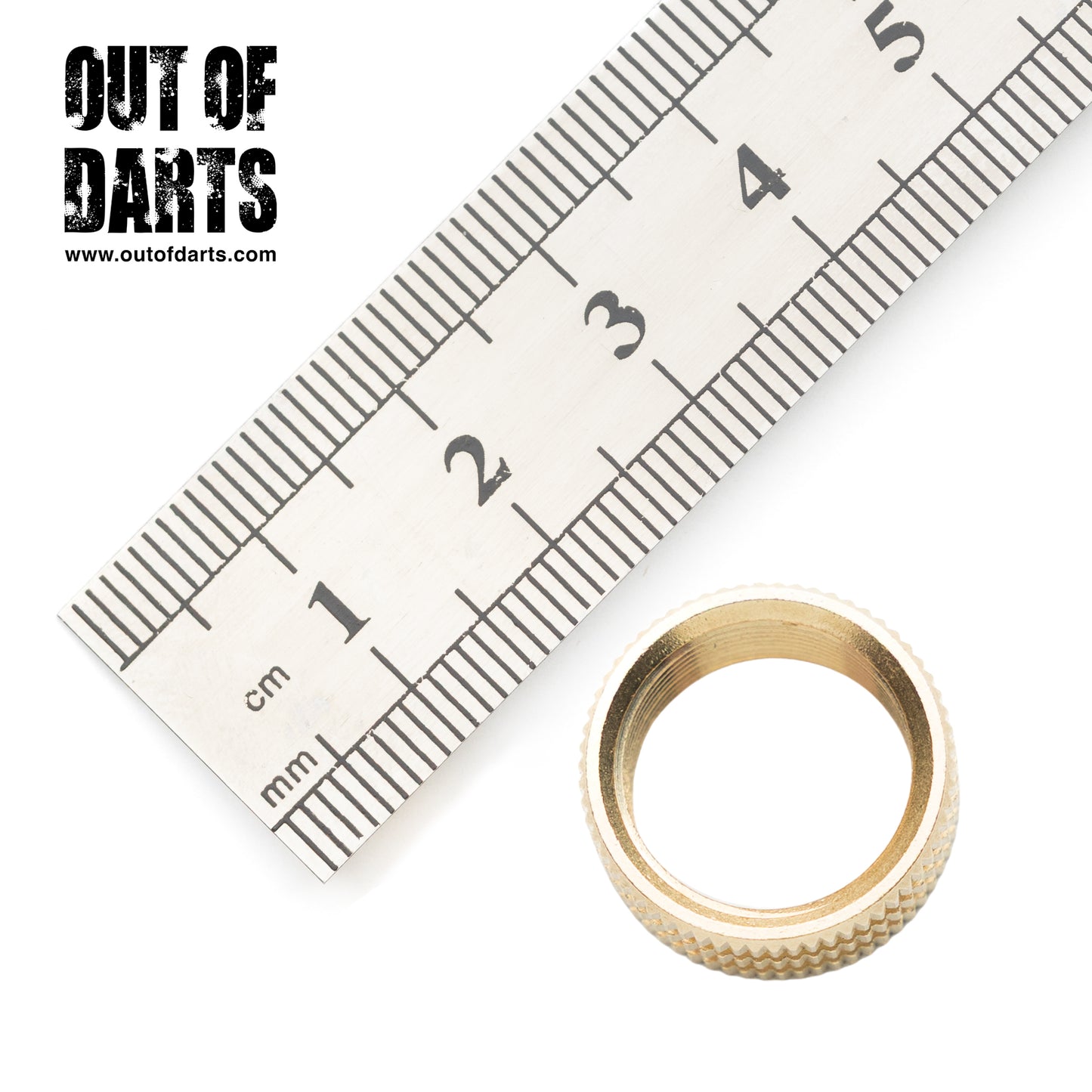

• M16: 20-20.5mm hole diameter, 0 degree taper
SPECS:
• Material: Brass
• Dimensions: Varies
• Weight: Varies
