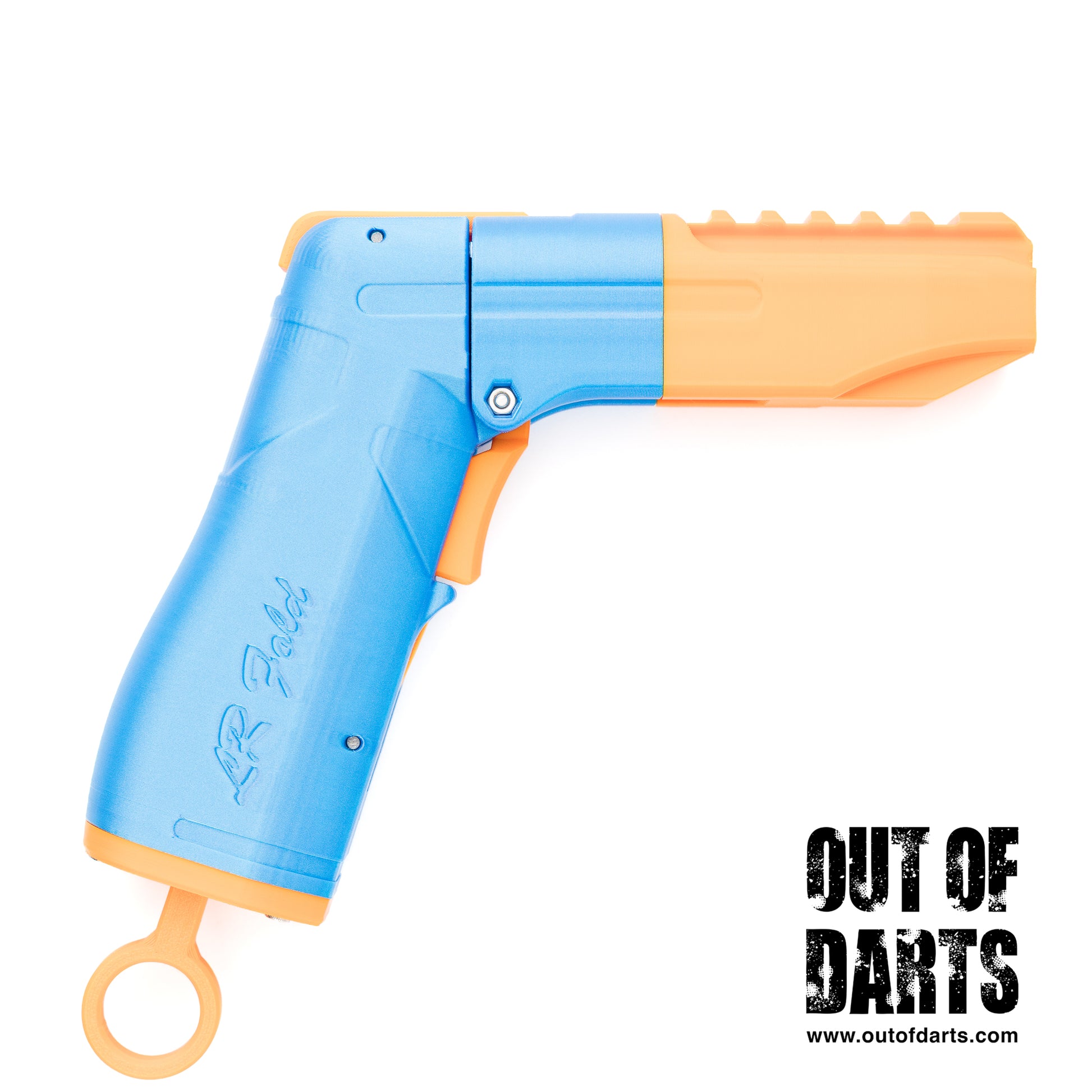

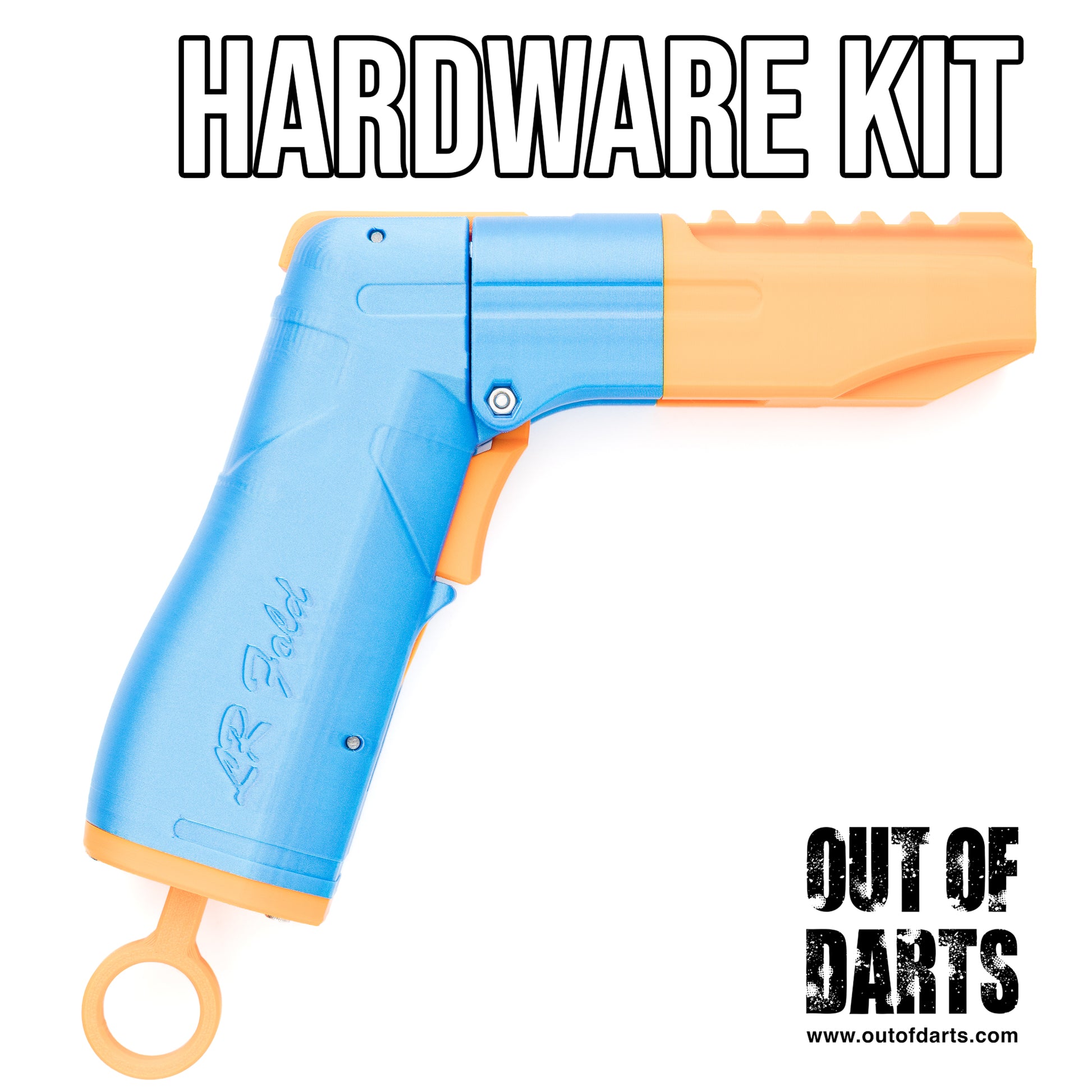

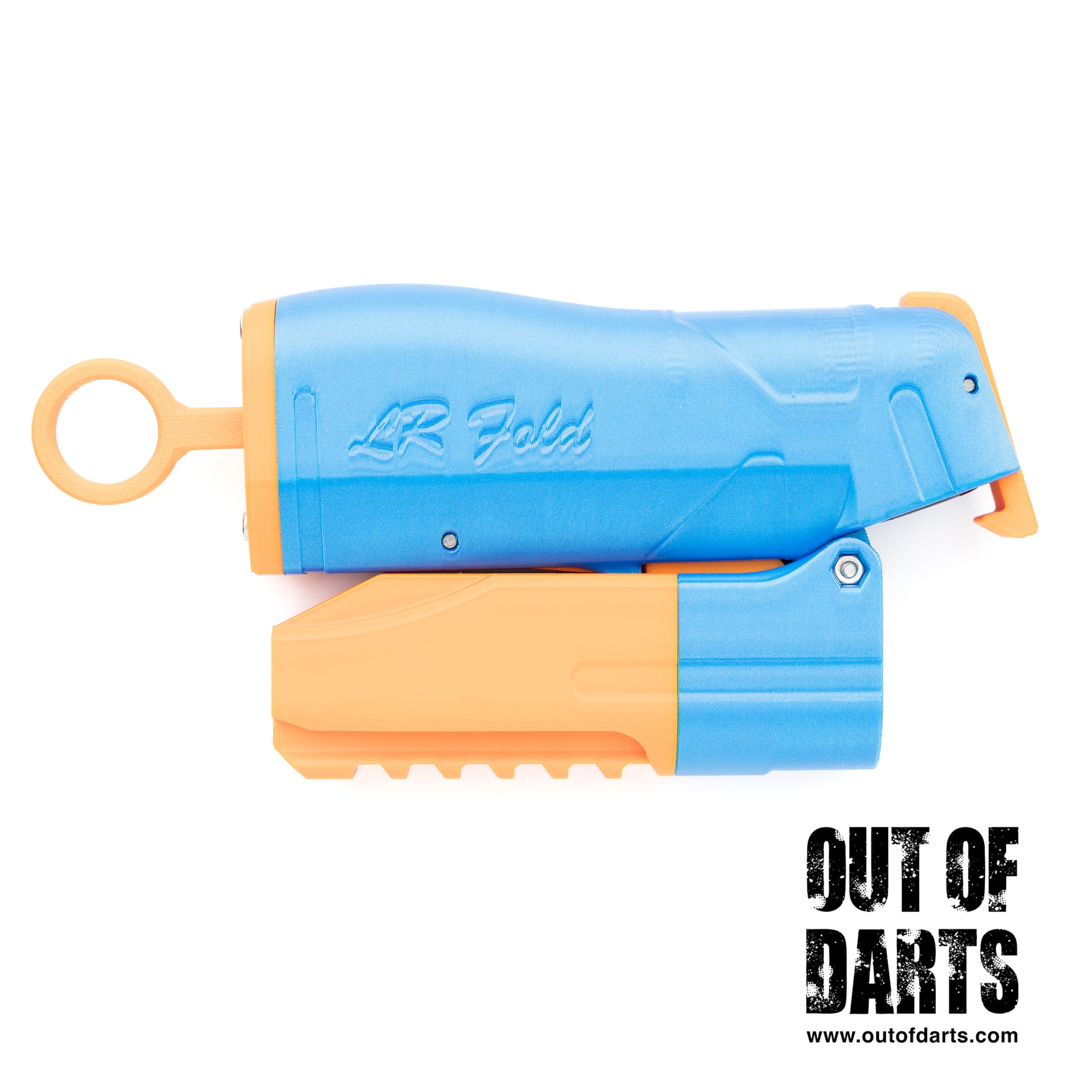

The LR Fold is a foldable, 3D-printed, single-shot, spring-powered blaster in Tarik’s Little Rocket family platform! Featuring a slim oval plunger tube made from semi-flexible material, this blaster delivers surprising performance in a compact, comfortable package. With the same twist-lock breech as other cousins, this blaster can be “hot-swapped” to fire many different ammo types with corresponding Little Rocket Barrels. Additionally, its compact size and stowable nature allow it to be deployed at a moment’s notice or used as a satisfying fidget device.
This hardware kit includes everything you need to print the 3D parts and assemble this blaster yourself (3D files available below).
FEATURES:
• Little Rocket LR Fold Hardware Kit
• Foldable single-shot springer
• Designed and engineered by Tarik
• Slim, comfortable plunger-in-grip design!

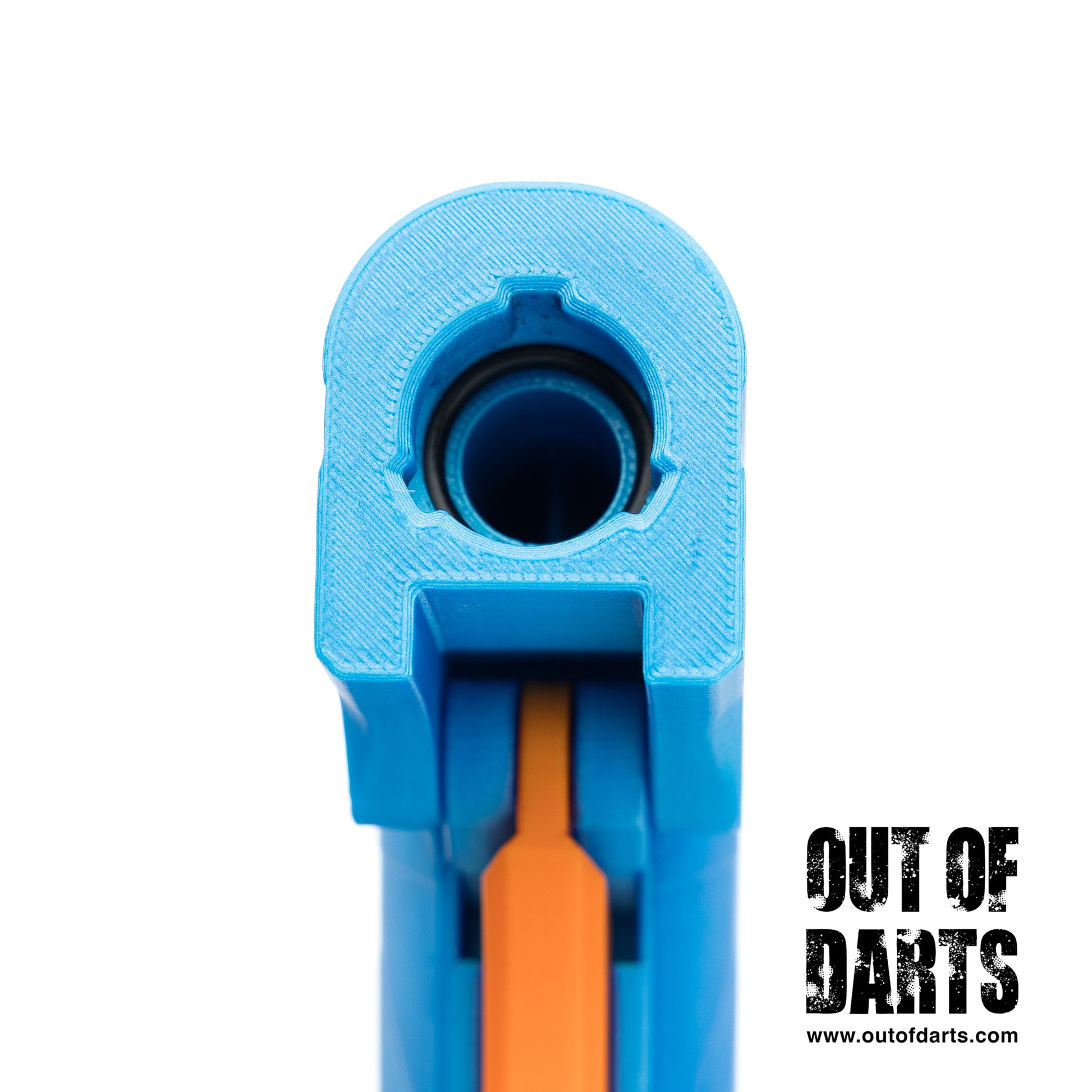

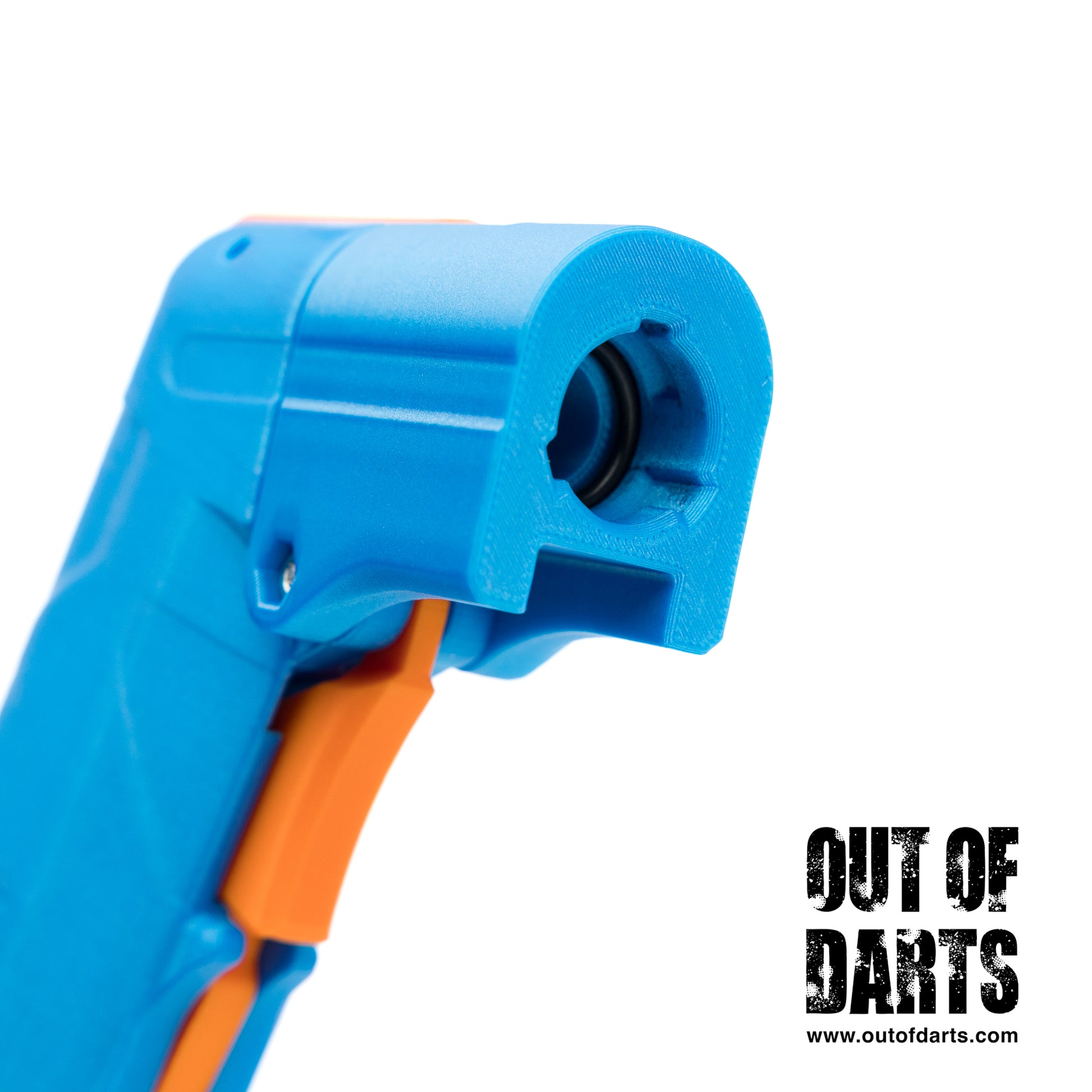

• Signature twist-lock LR lug

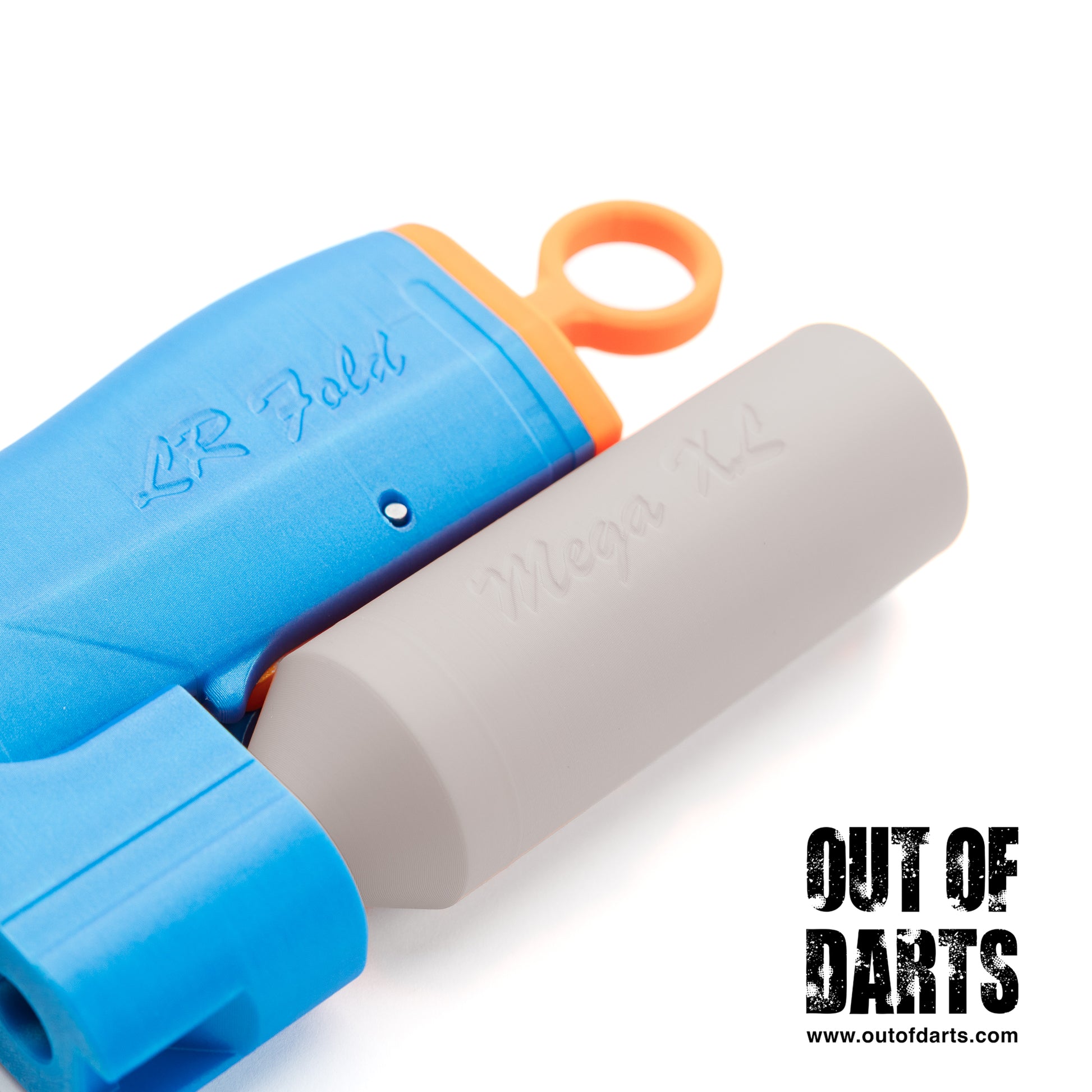

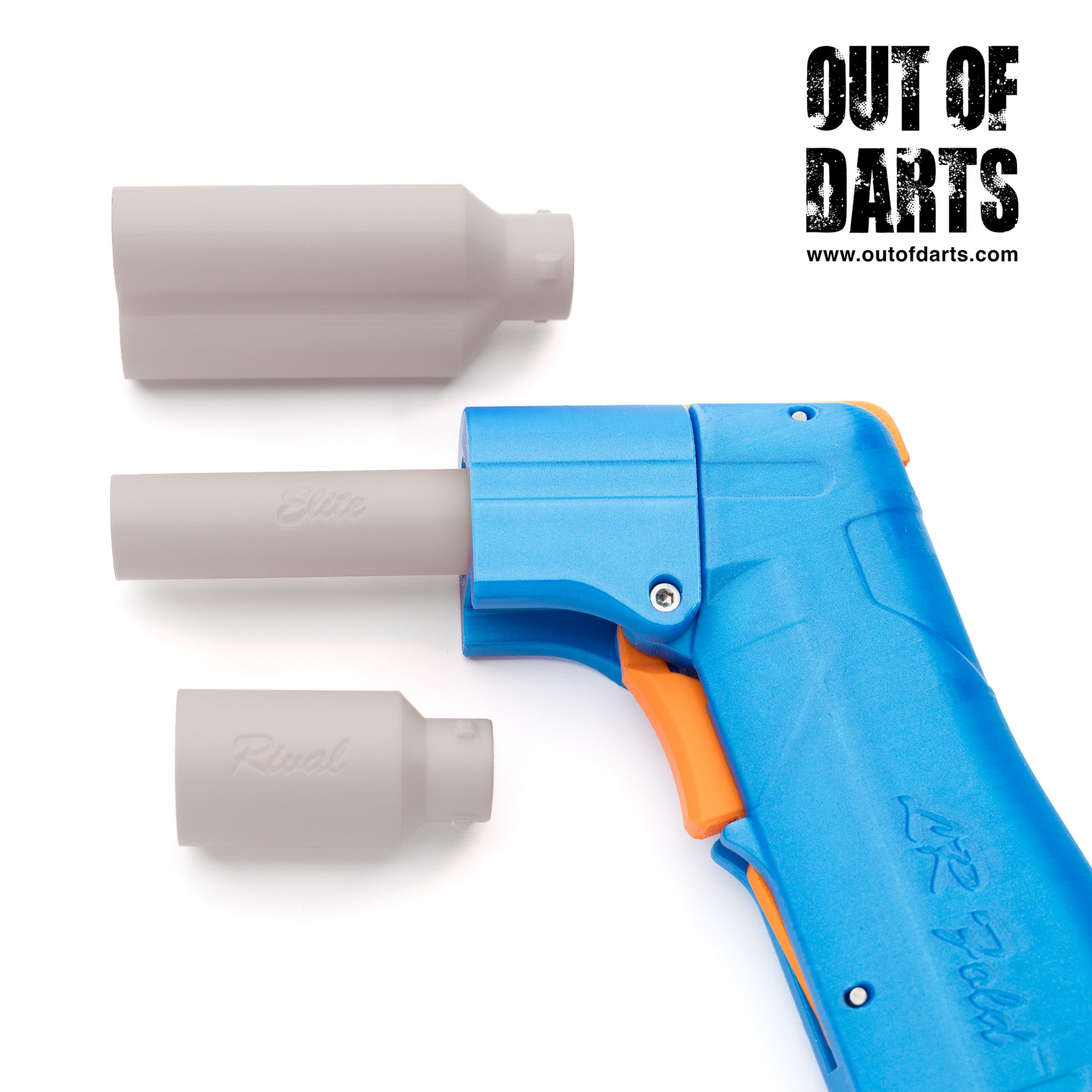

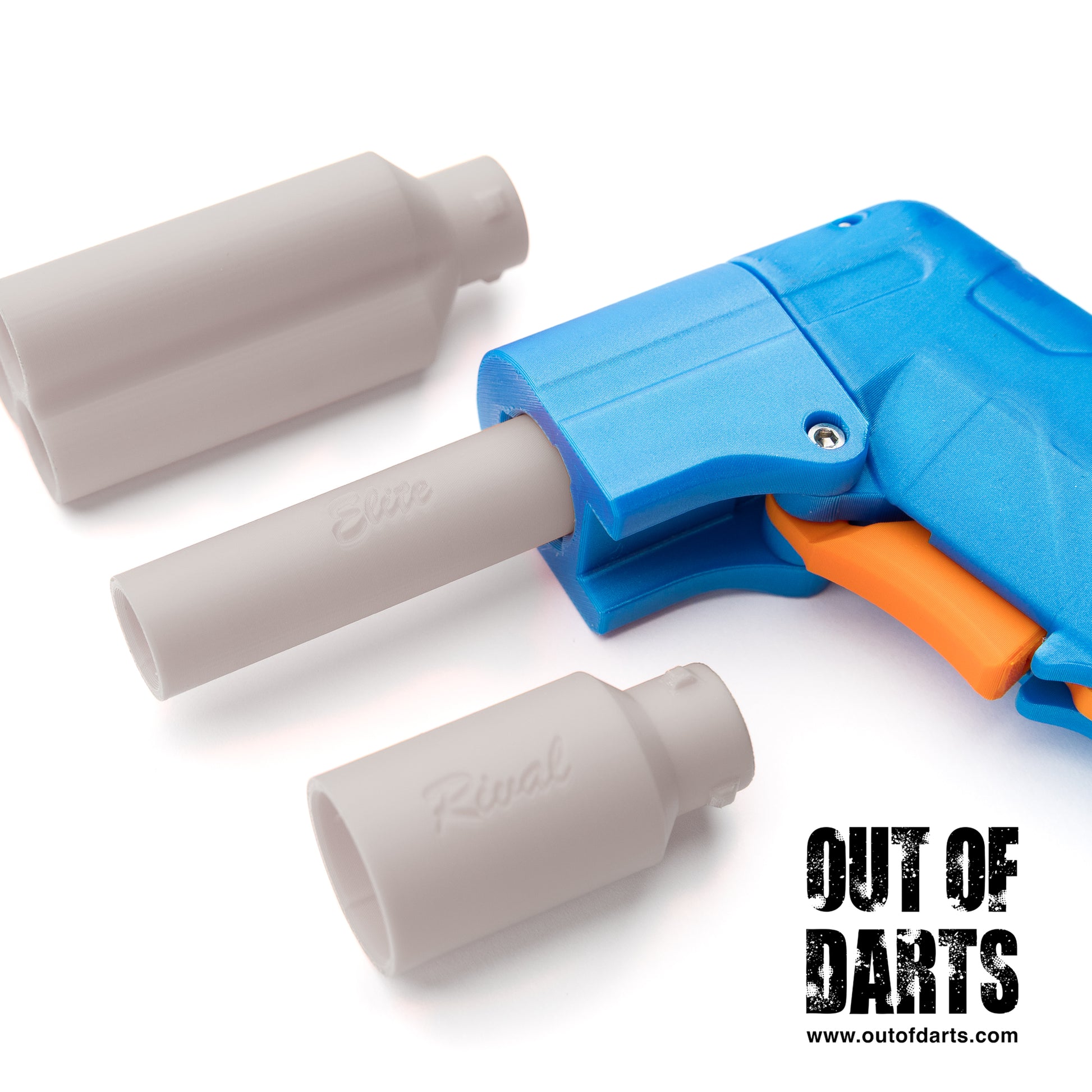

• Hot-swappable barrels can fire most major ammo types
• Customizable to your preferred playstyle
• Decorative barrel compatible with select Picatinny accessories.

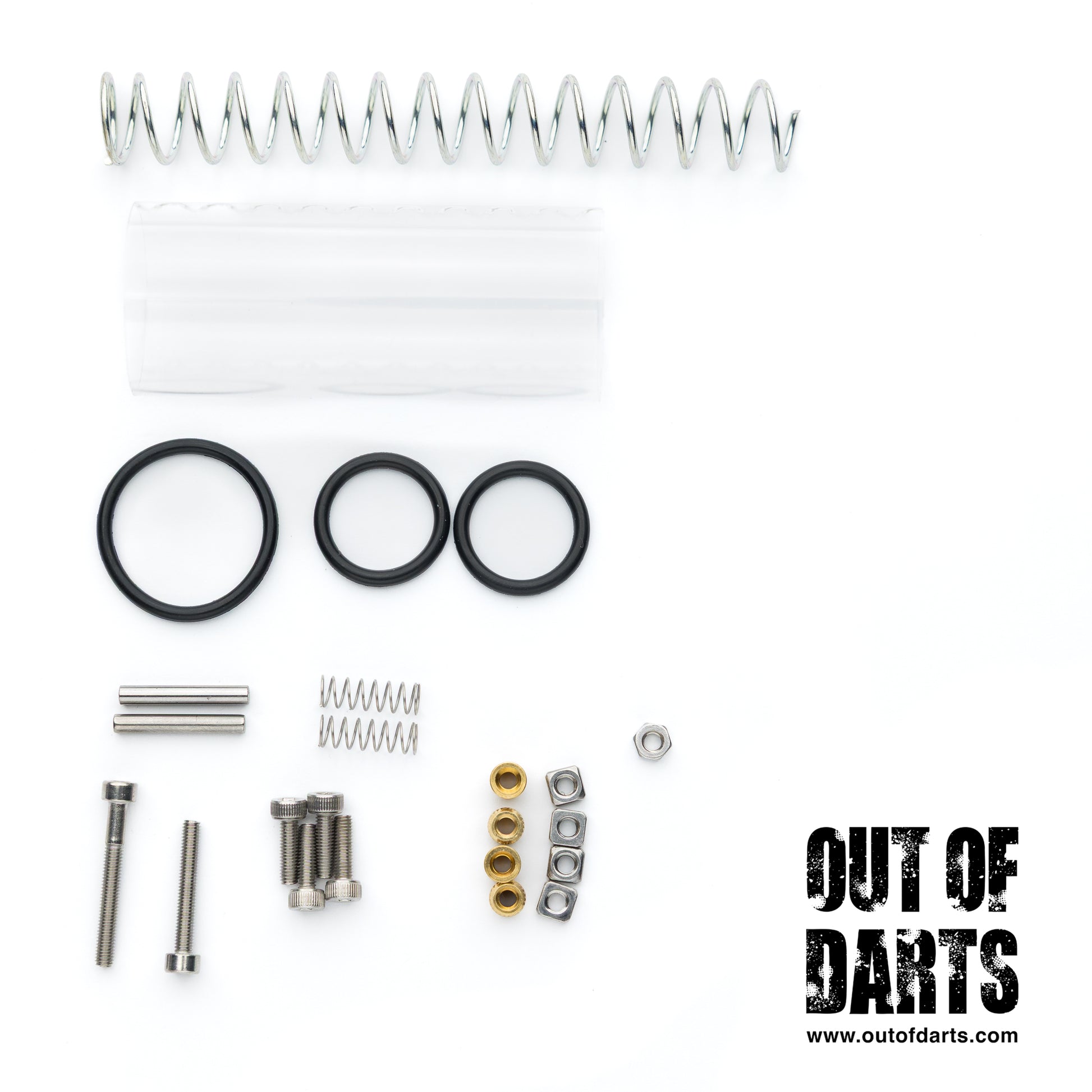

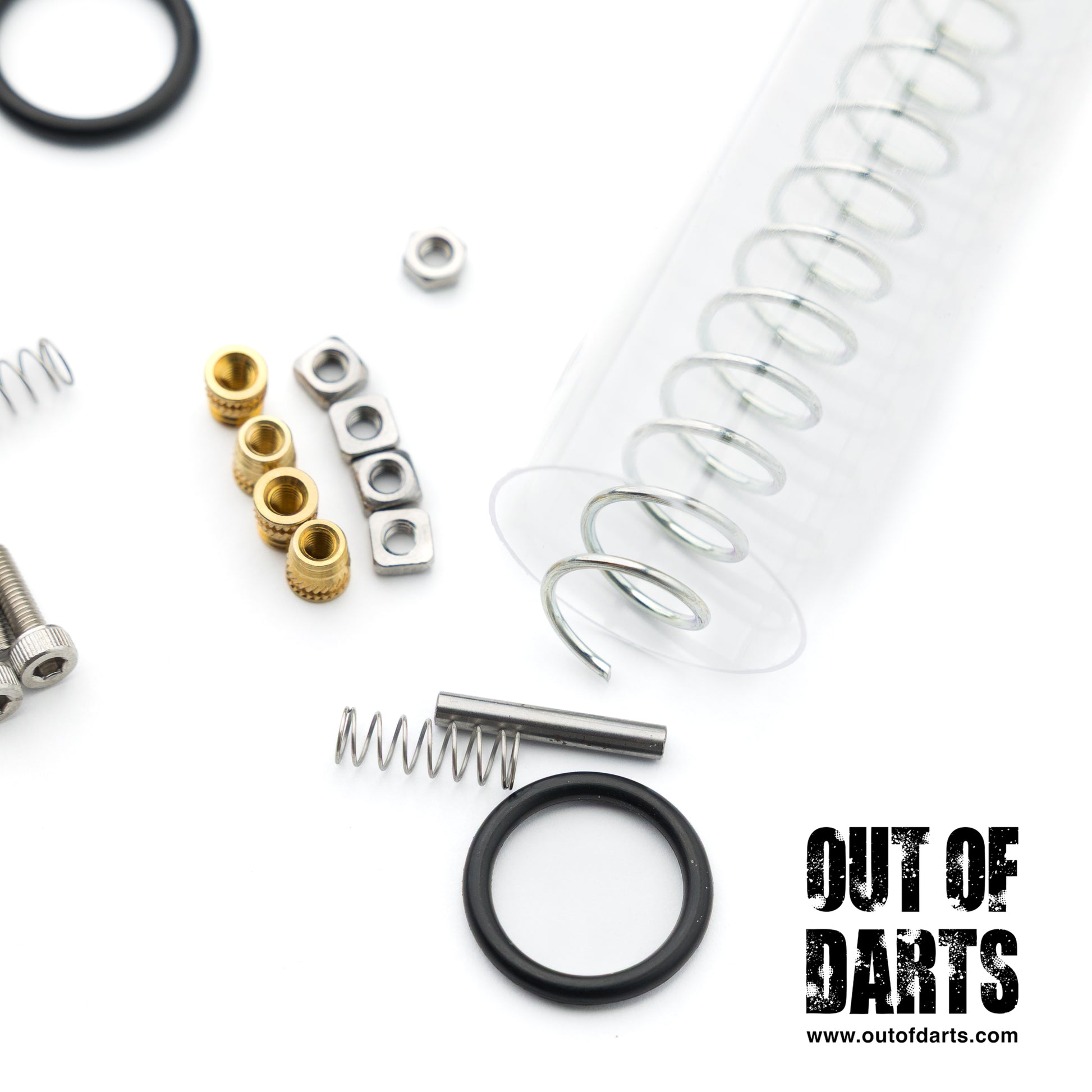

INCLUDES:
• 1 Little Rocket main spring of your choice (LR Small Low-Power or LR Small High-Power)
• 1 28 x 71mm Plunger tube
• 2 M3 x 20mm Dowel pins
• 2 16mm LR barrel lug O-rings
• 1 23mm LR plunger O-ring
• 2 Catch springs (0.4 x 15mm)
• 4 M3 Brass heat-set inserts
• 4 M3 Square nuts
• 1 M3 Hex nut
• 4 M3 x 10mm Socket head screws
• 1 M3 x 20mm Socket head screw
• 1 M3 x 25mm Socket head screw
• 1 3mL Bottle lubricant
PERFORMANCE:
Average FPS (Standard Deviation) using lug-loaded short darts
• 109 (3) FPS with the 1.30 x 110mm spring
• 130 (3) FPS with the 1.65 x 110mm spring

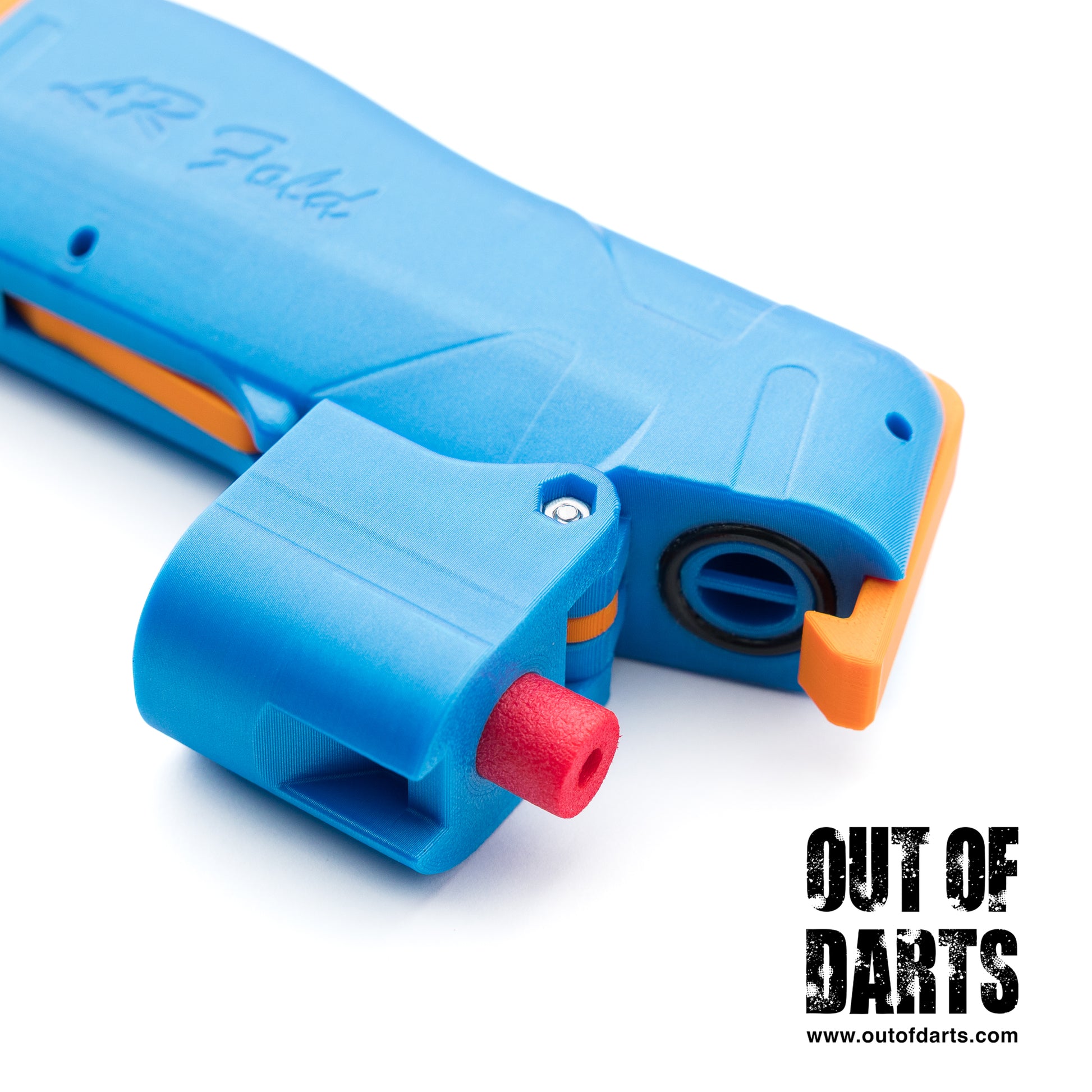

Average FPS (Standard Deviation) using short darts breech-loaded
• 135 (2) FPS with the 1.65 x 110mm spring
SPECS:
• Material: Hardware
• Dimensions: Varies
• Weight: 32.46g
• Recommended Age: 8+
• SKU: HWK TAR LR FOLD
LINKS:
• 3D Files
• Little Rocket Barrels
• Darts + Ammo
• More LR Fold Mods + Accessories
• Little Rocket Platform
