FowlerConcepts Halo M6G Flycore Hardware Kit

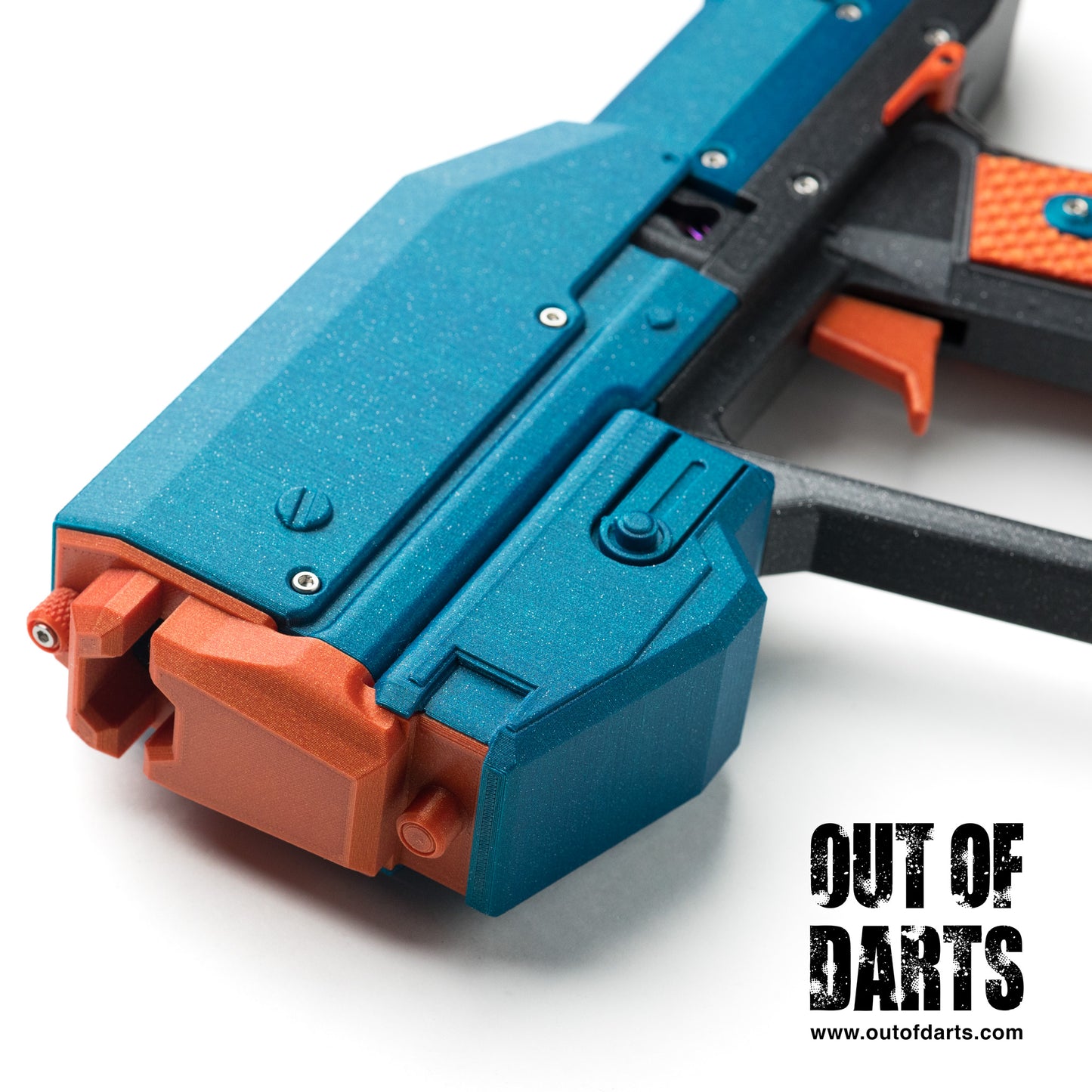

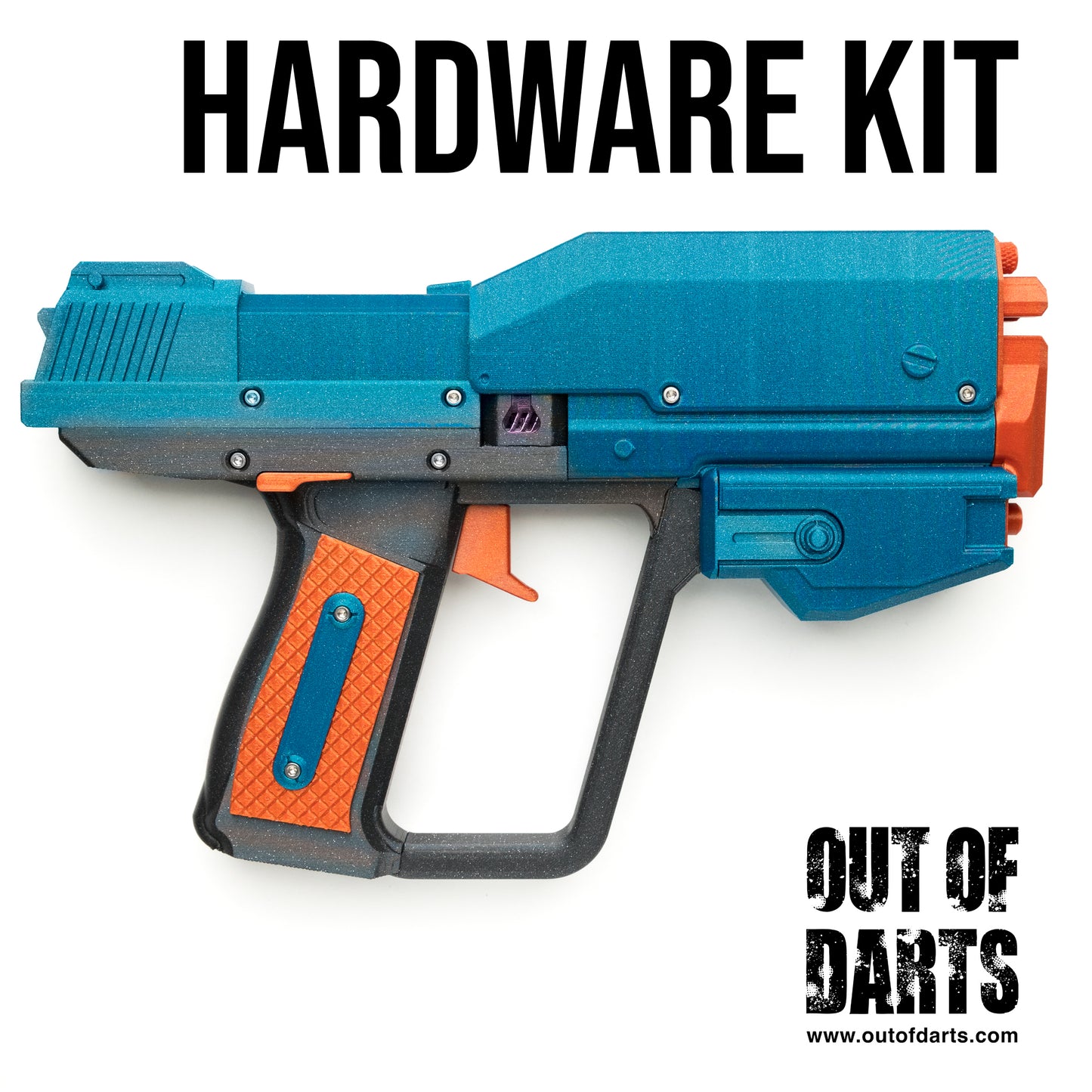

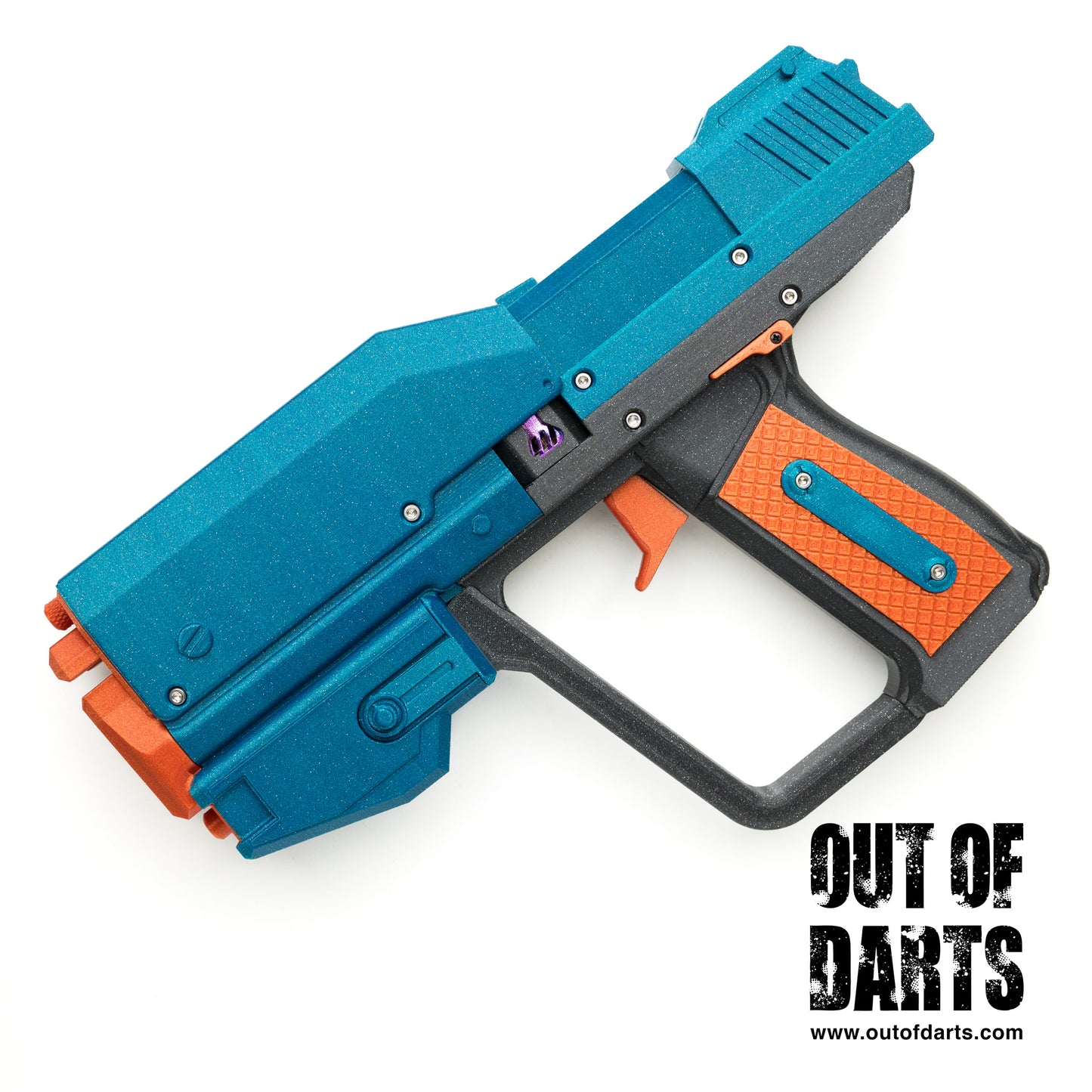

This hardware kit includes all of the parts required to assemble a M6G flycore blaster.  This 3d blaster uses the angled Flycore system as a base for this Halo M6G Magnum themed blaster.  Around the warehouse we have started calling it a Master Chief Scale blaster but everyone agrees that it is a fun blaster to dump mags with.

*No 3d parts are included with this kit

FEATURES:
• All hardware recommended by the designer
• Includes optional hardware
• flywheel and motor selection based off what you want for your blaster
• Just add a LiPo, alarm and charger and you're good to go!

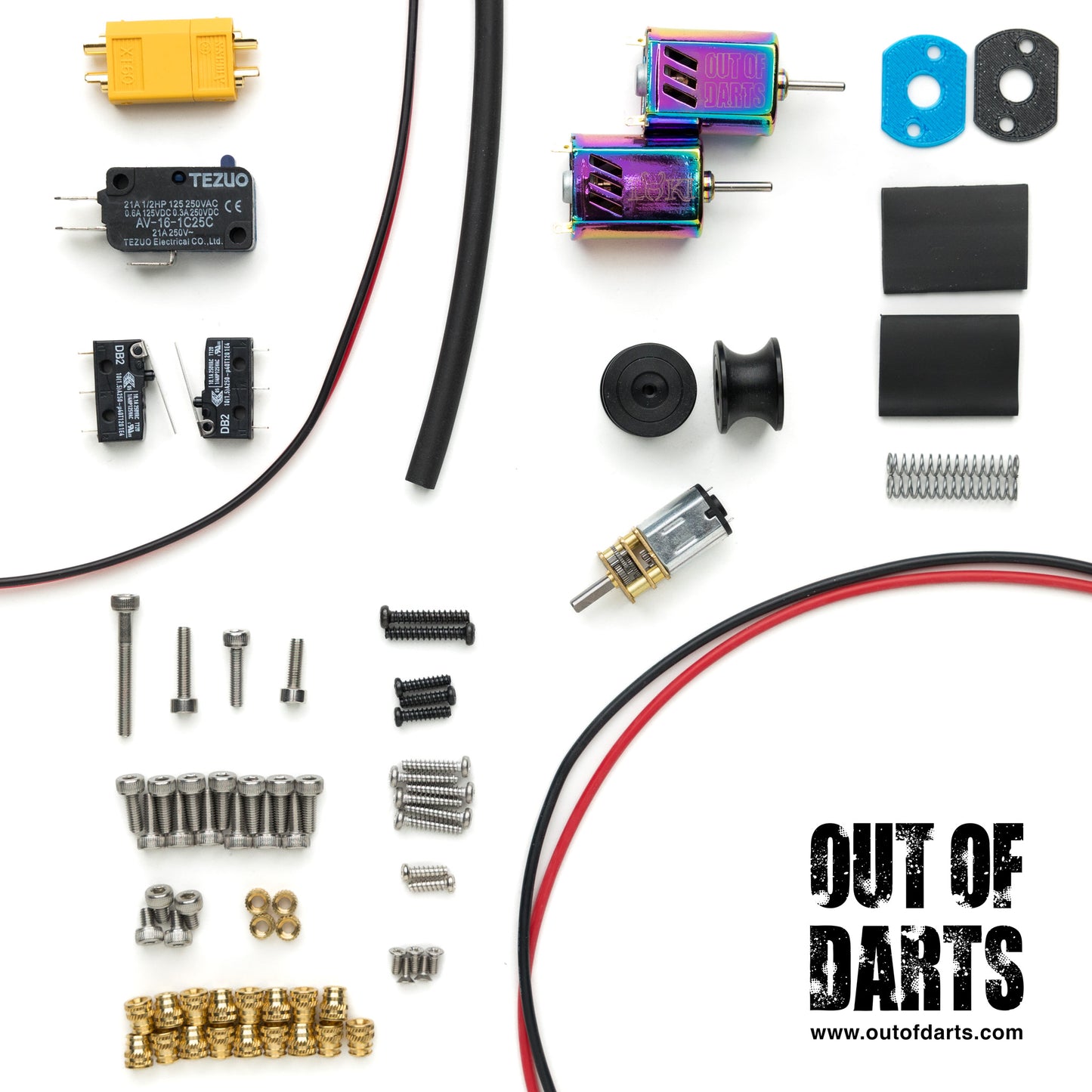

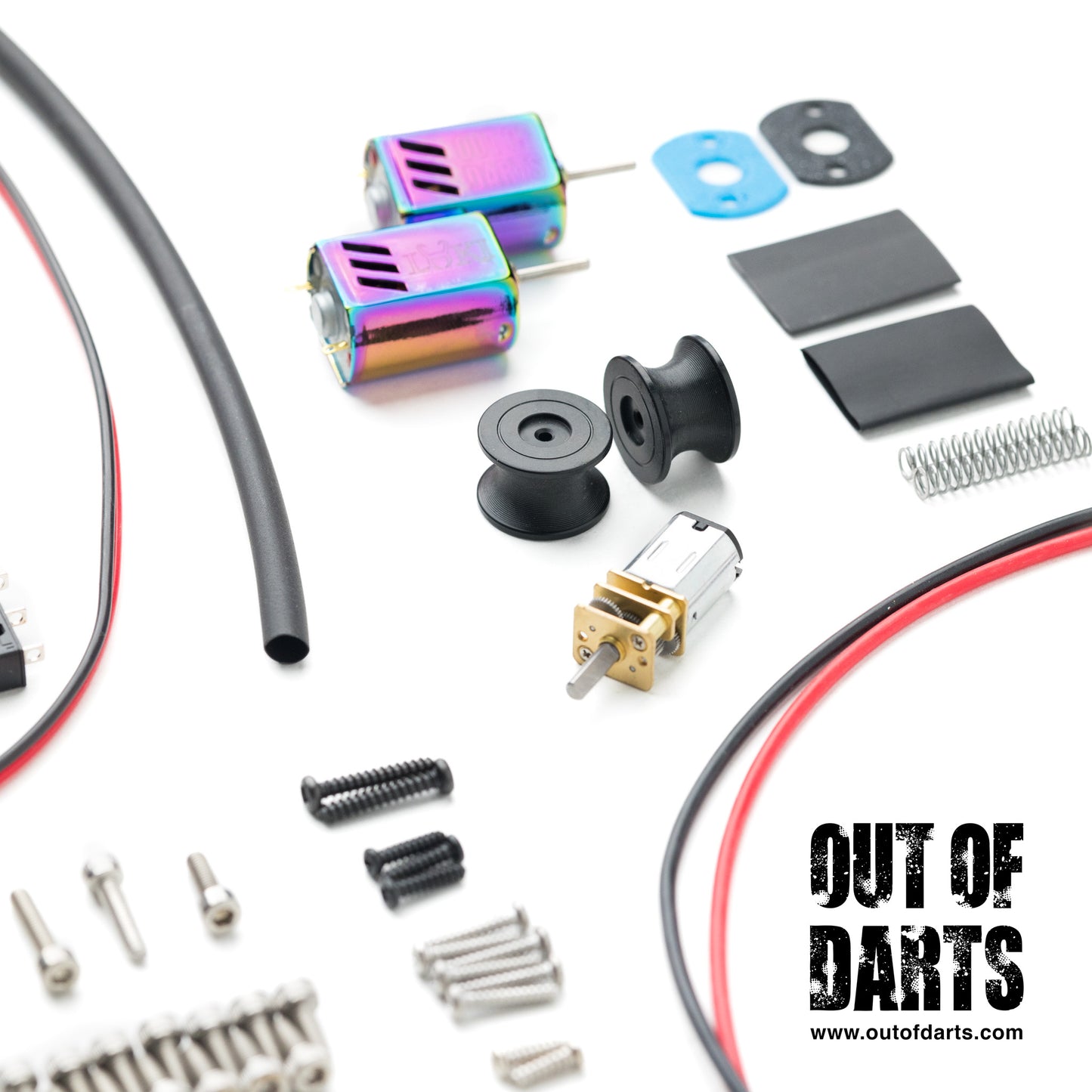

INCLUDES:
   ☐ 1x - FLYWHEEL PAIR
   ☐ 1x- 21A TEZUO BUTTON
   ☐ 1x - XT-60 M/F PAIR
   ☐ 2x - 10A CHERRY DB2 LEVER
   ☐ 2x - LOKI MOTORS
   ☐ 1x - SMALL HEAT SHRINK 6”
   ☐ 2x - LARGE HEAT SHRINK 1”
   ☐ 1x - N20 MOTOR
   ☐ 2x - 3D MOTOR SPACERS
   ☐ 1x - M3 X14MM SOCKET HEAD
   ☐ 1x - M3 X12MM SOCKET HEAD
   ☐ 1x - M3 X10MM SOCKET HEAD
   ☐ 14x - M3 X8MM SOCKET HEAD
   ☐ 6x - M2 X 5MM FLAT HEAD (FLYWHEEL)
   ☐ 1x - M3 X 25MM SOCKET HEAD
   ☐ 2x - M3 X 16MM PHILLIPS TOY SCREW
   ☐ 6x - M2.6 X 12MM PHILLIPS TOY SCREW
   ☐ 3x - M2.6 X 10MM PHILLIPS TOY SCREW
   ☐ 2x - M2.6 x 8MM PHILLIPS TOY SCREW
   ☐ 2x - FLYCORE SPRING
   ☐ 4x - M3 x 4MM SOCKET HEAD
   ☐ 4x - M3 x 3MM BRASS INSERT
   ☐ 17x - M3 BRASS INSERTS
   ☐ 1x - 22AWG WIRE PAIR 10”
   ☐ 1x - 18AWG BLACK WIRE 20”
   ☐ 1x - 18AWG RED WIRE 30”

LINKS:
• Recommended LiPo
• LiPo Alarm
• Charger
• Holdster Magnets
• Angled Talon Magazines

Halo M6G Files
Flycore Angled Files

*Use Flycore 3D files NGALE 19.5-20mm for Worker Nightingale wheels

*Use Flycore Spartan (OFD_FLYCORE_ANGLED_SPARTAN_23.5MM_V2.STL for FTW wheels
