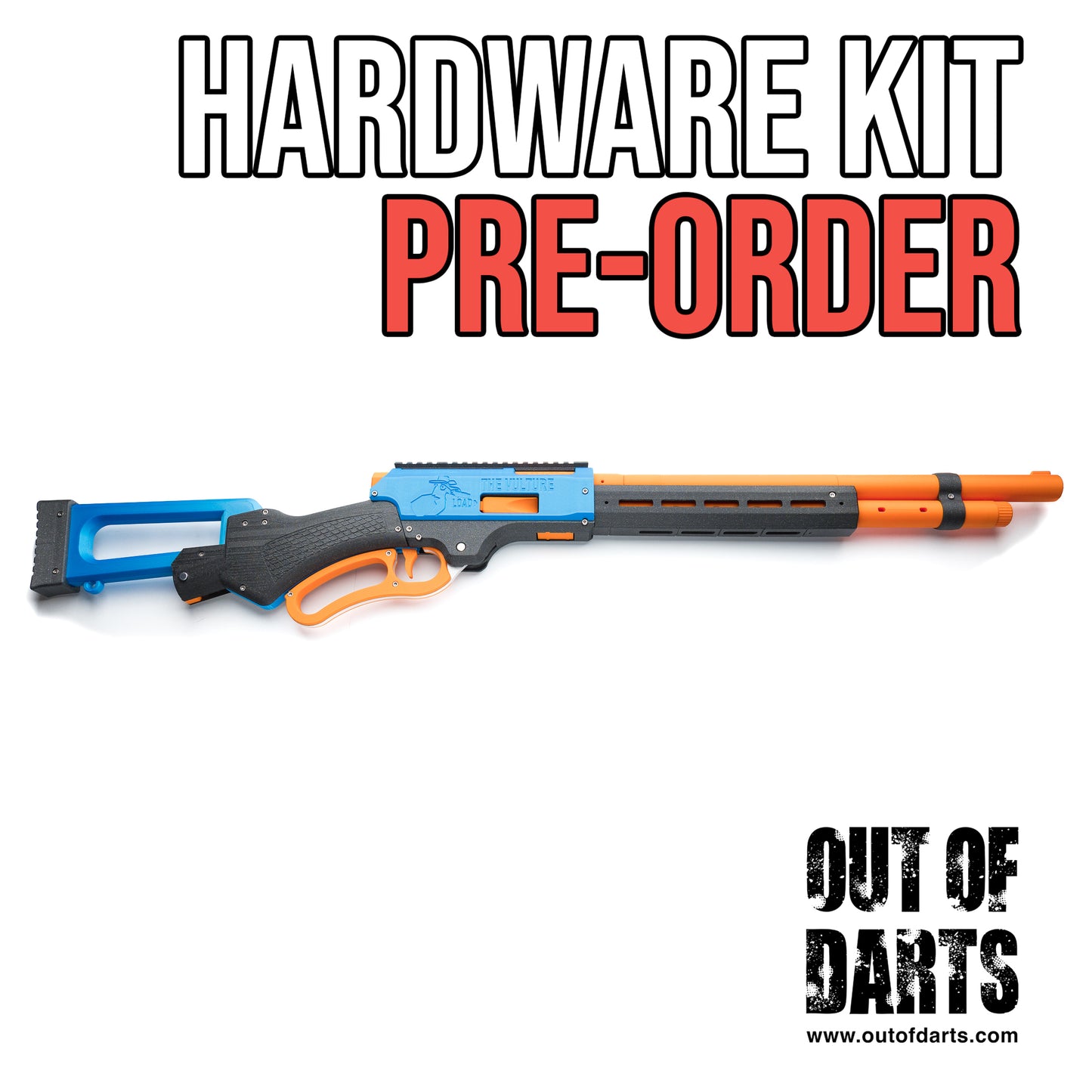

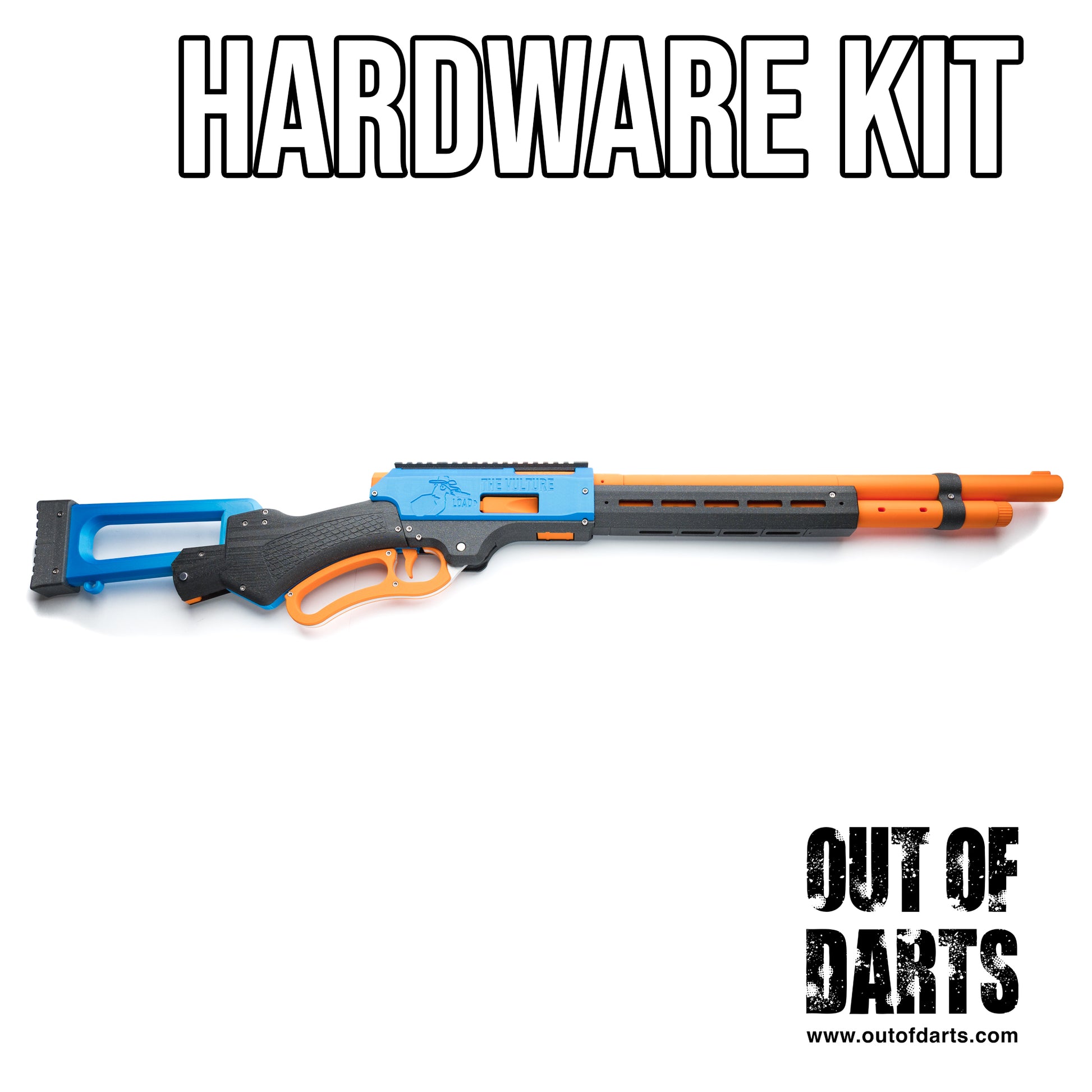

MHP Vulture Hardware Kit

MHP Vulture Hardware Kit

Regular price $104.99 USD
Regular price Sale price $104.99 USD
Sale Sold out
Shipping calculated at checkout.

IN STOCK!

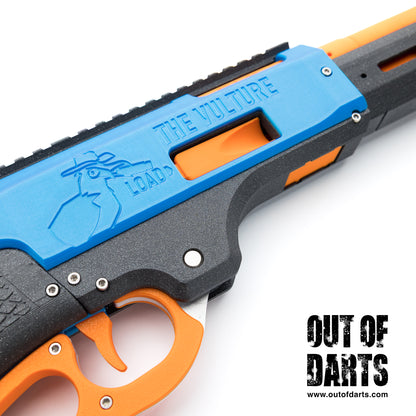

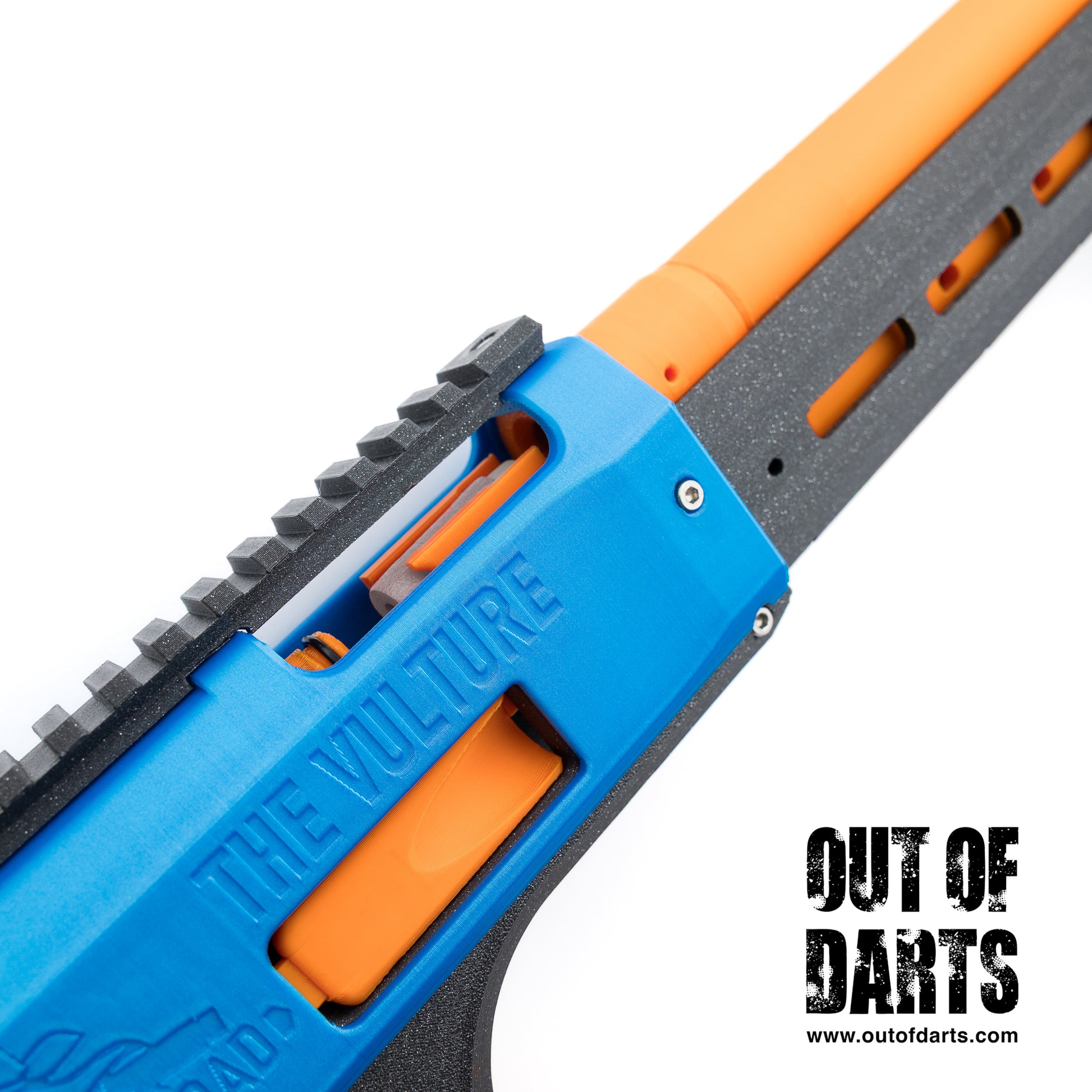

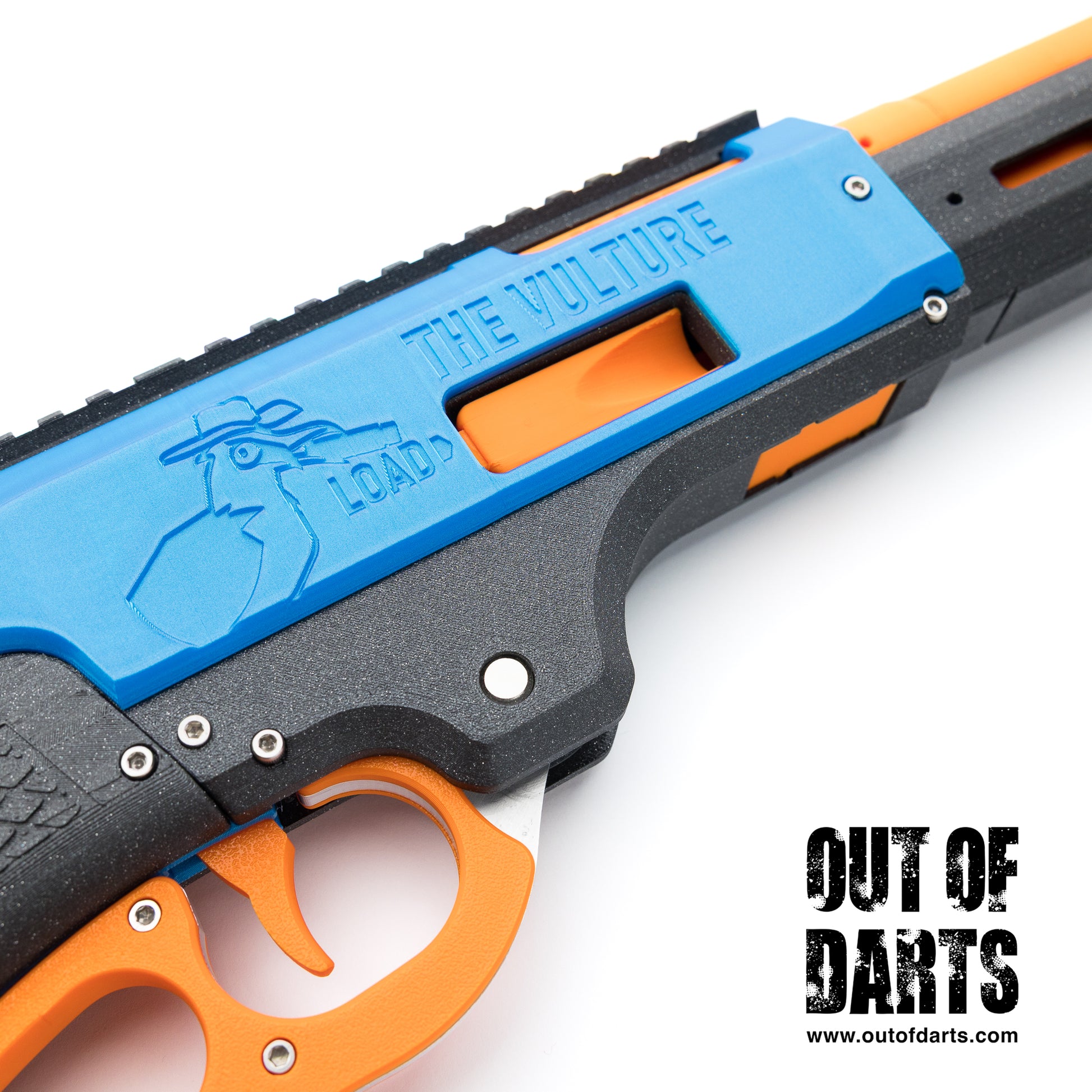

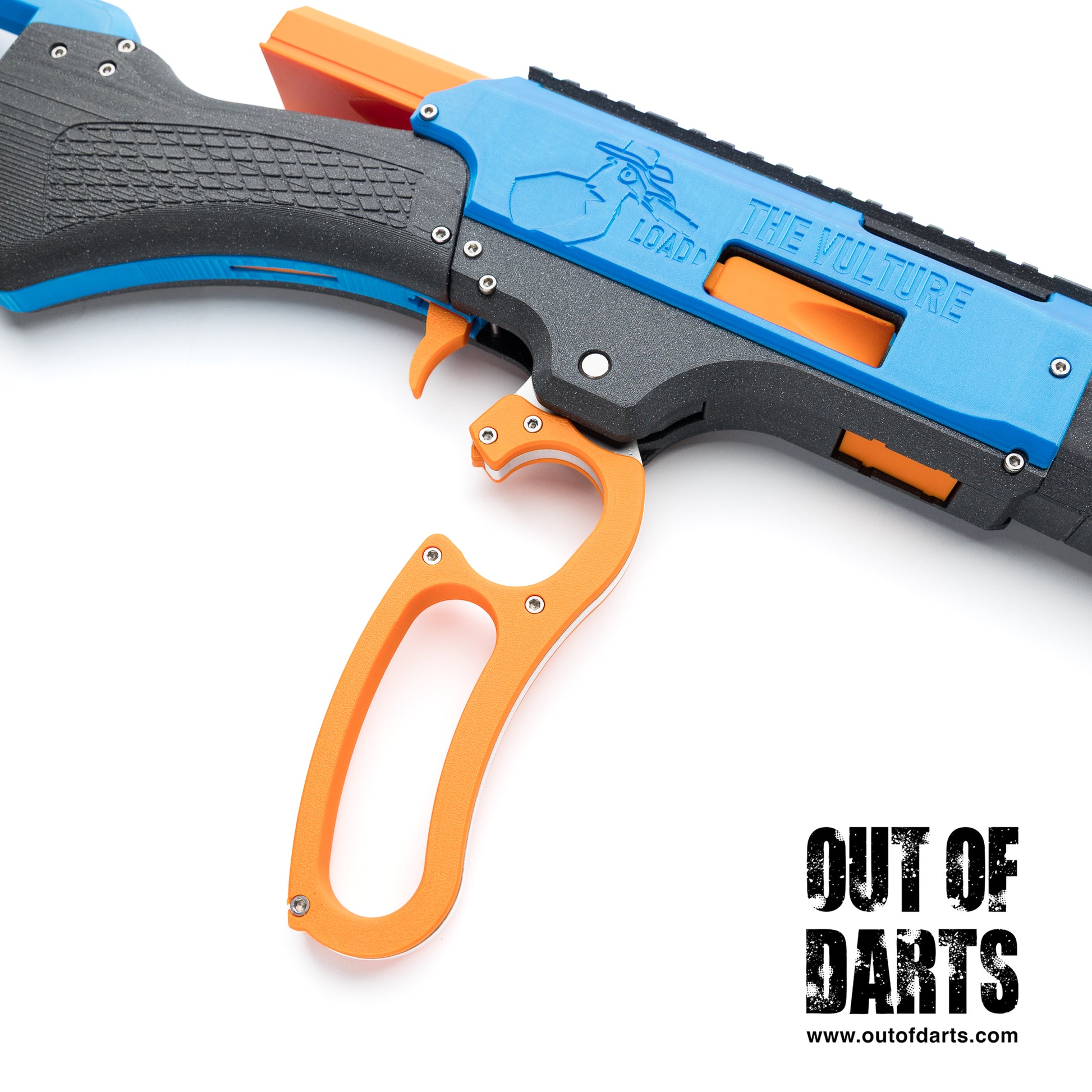

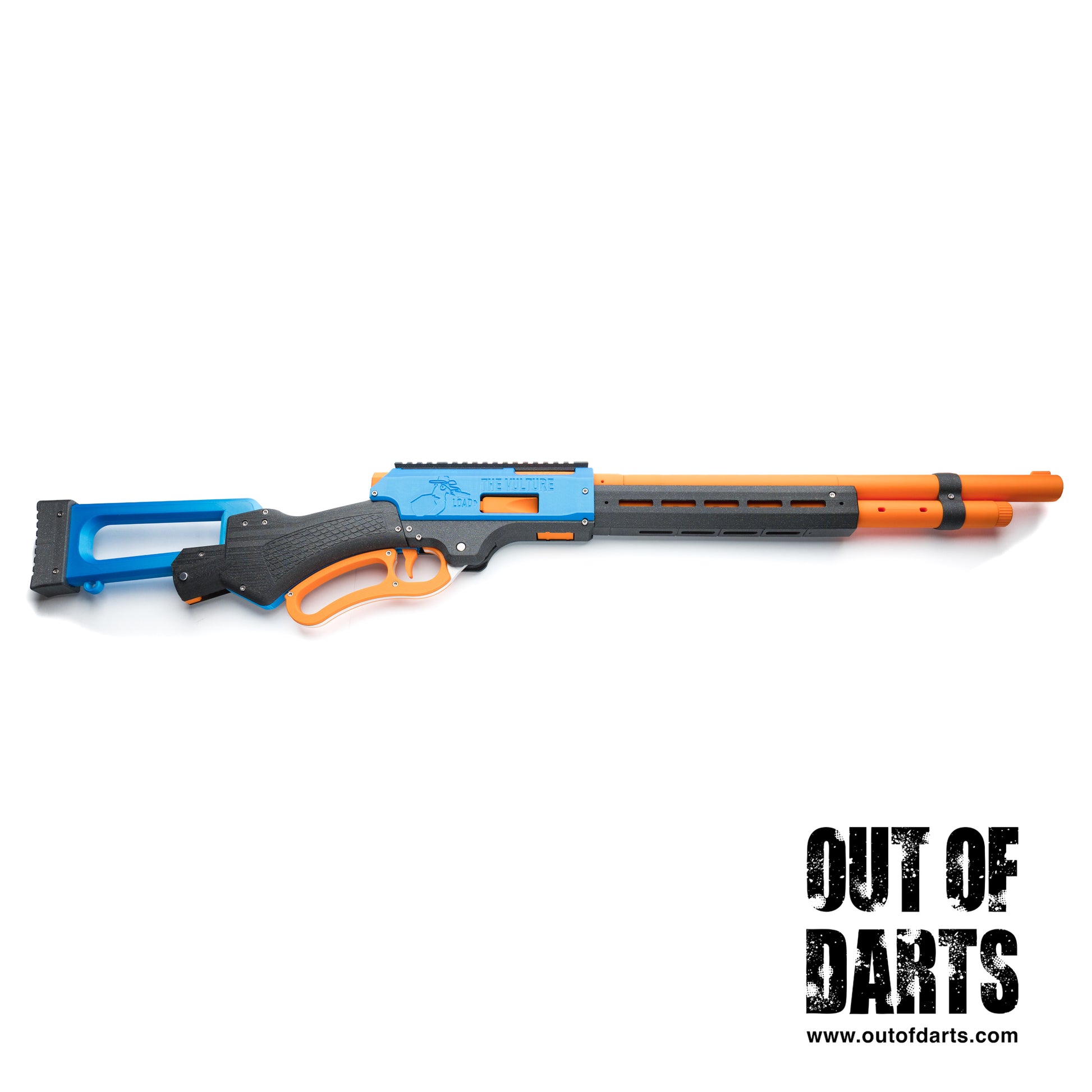

The MHP Vulture is a lever-action short dart spring-powered blaster remixed from MrHeathPants’ own Wrenfield MK-3 blaster design. Featuring a premium CNC-milled, black anodized aluminum lever and priming bars along with a unique shell-less internal tube mag, this springer is the closest the hobby has to a wild-west-style lever-action repeater rifle. Additionally, its plunger-in-grip design packs a lot of performance without sacrificing ergonomics or aesthetics.

This hardware kit includes everything you need to print the 3D parts and assemble this blaster yourself (3D files available below).

FEATURES:
• MHP Vulture Hardware Kit
• Tube-mag lever-action springer

• Designed by MrHeathPants
• Unique plunger-in-grip design

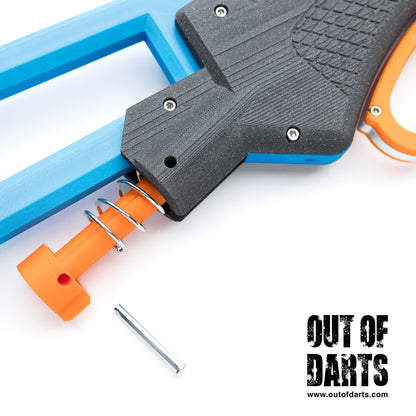

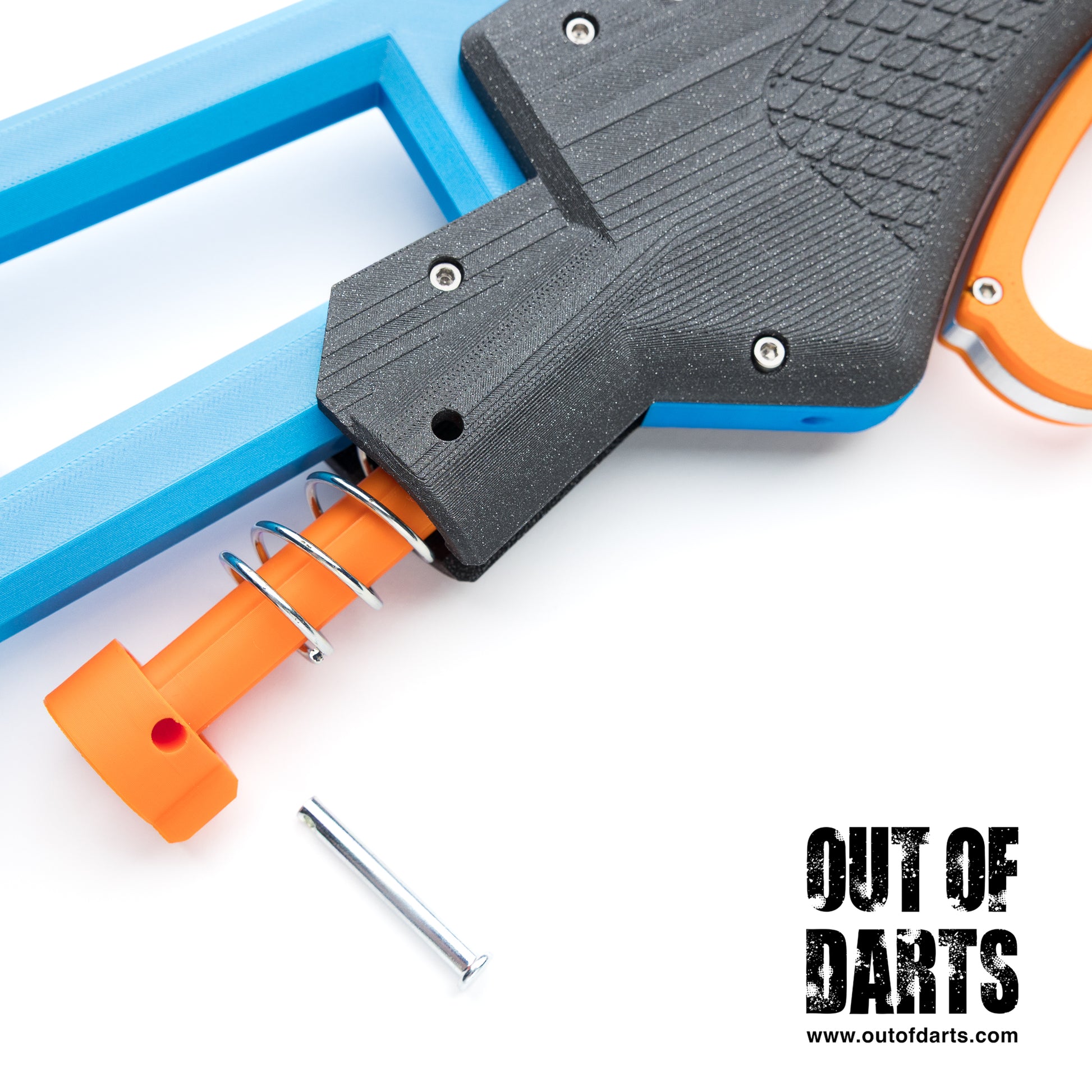

• Swappable spring rest for easy tuning
• Compatible with most short darts (up to 38mm)
• Upgraded anodized CNC parts

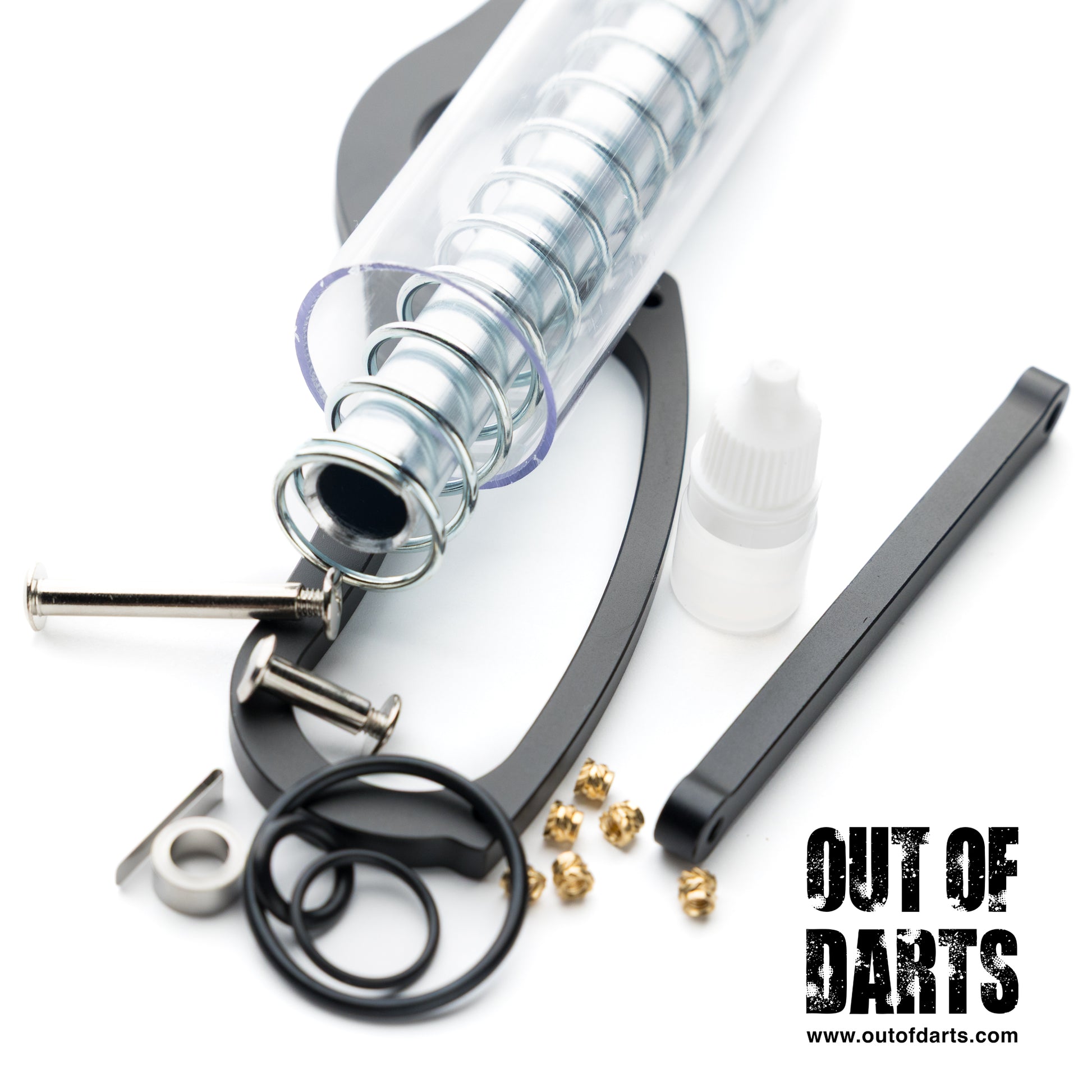

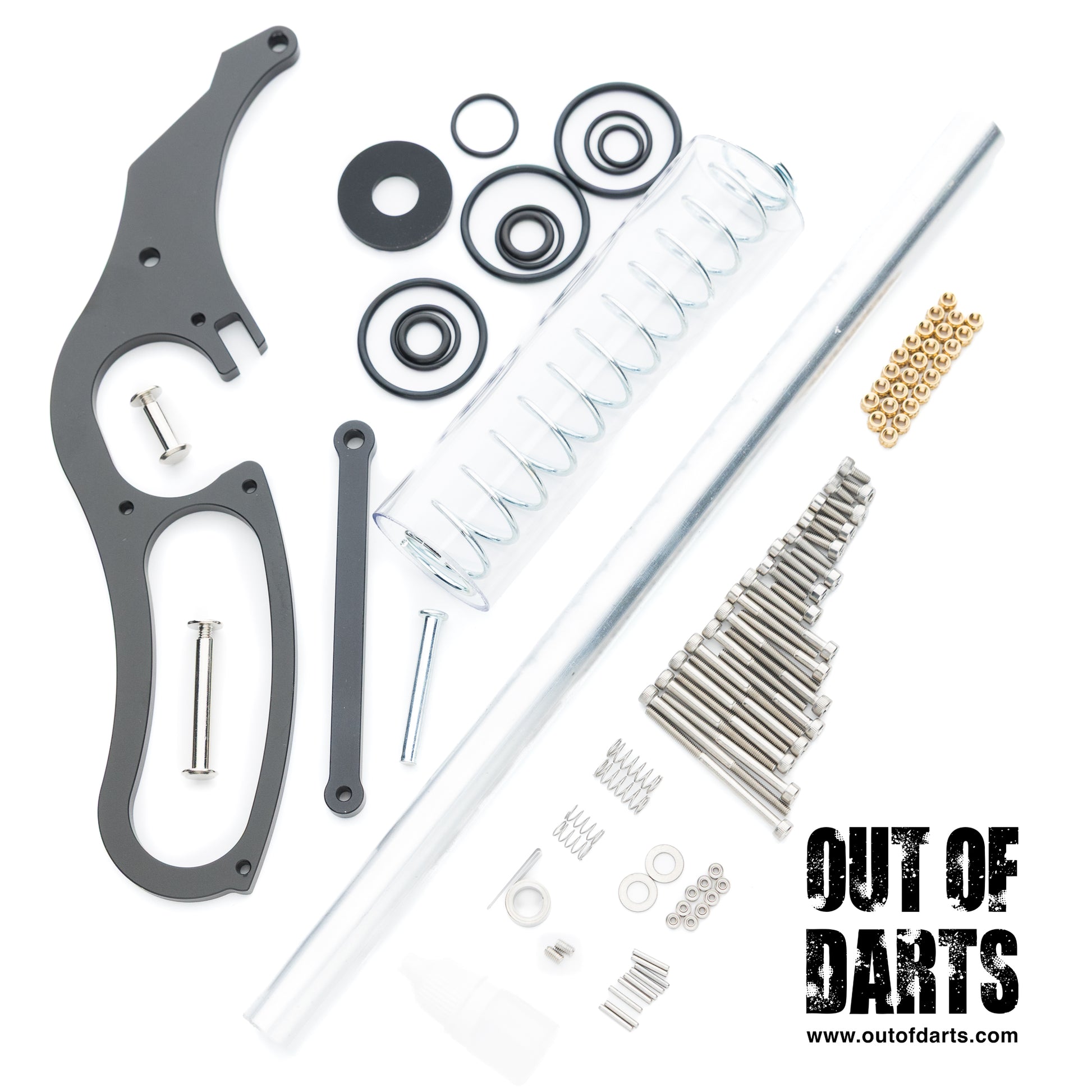

INCLUDES:
Everything you need to print and assemble this blaster, including:
• 1 2.03 x 140mm Spring
• 1 13 x 300mm aluminum barrel

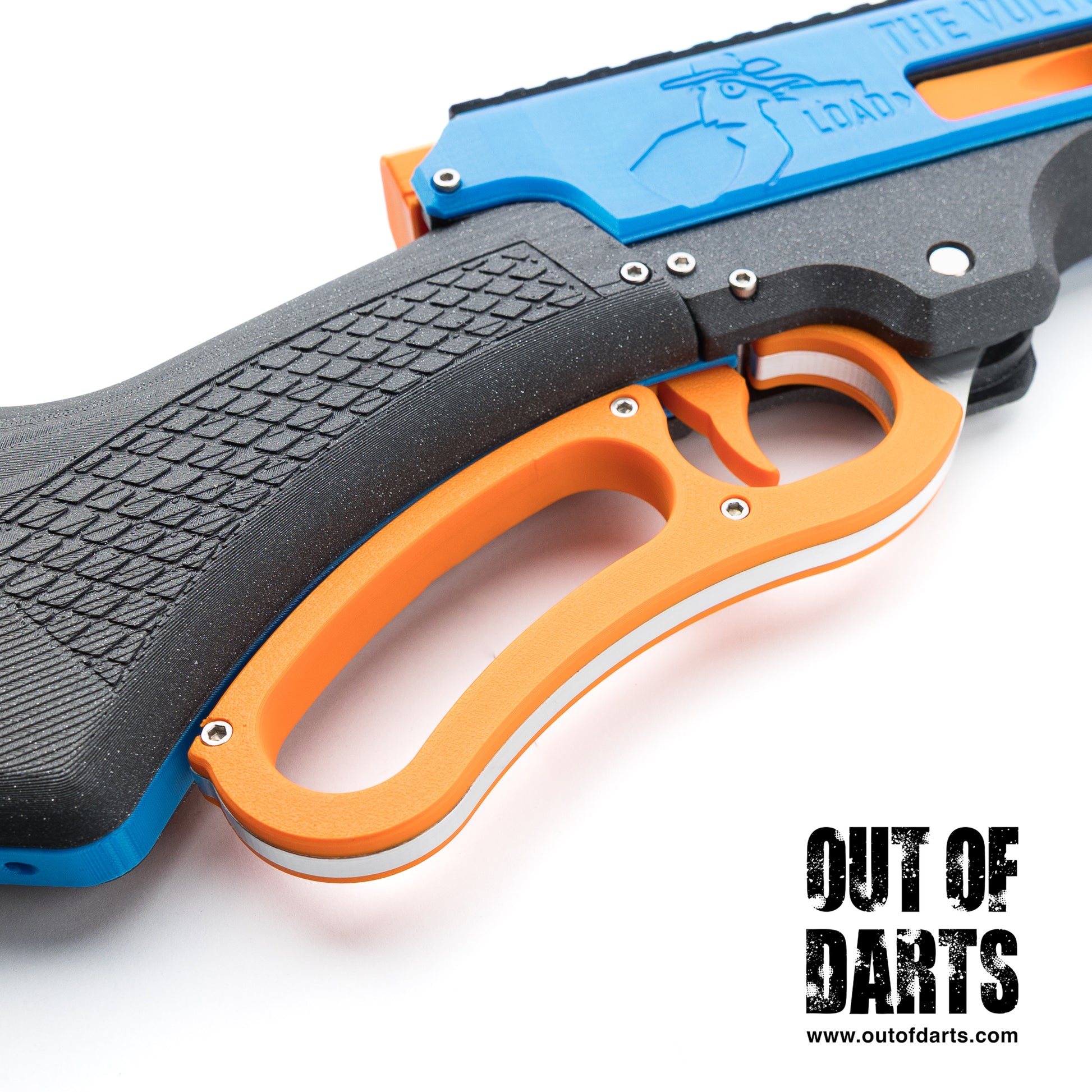

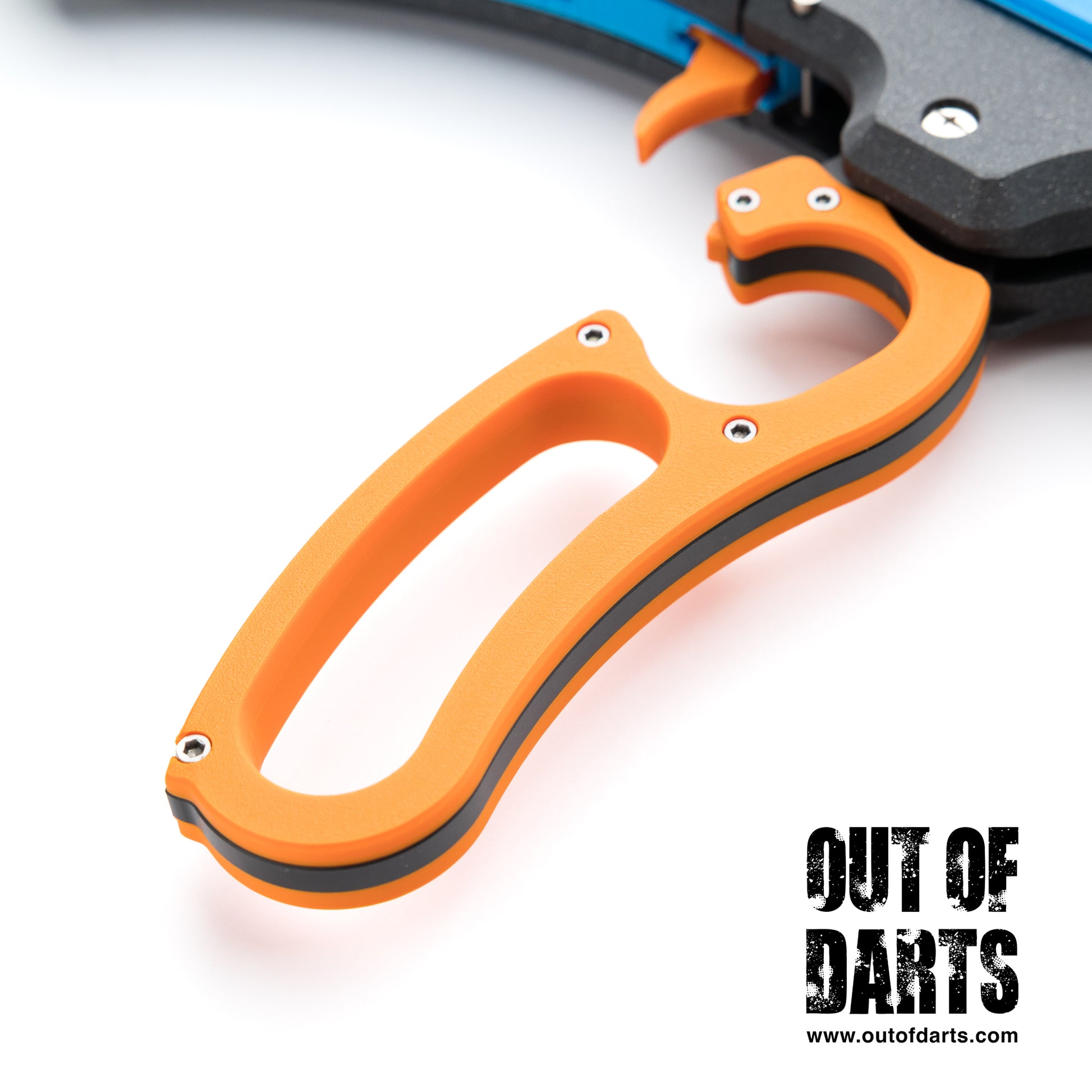

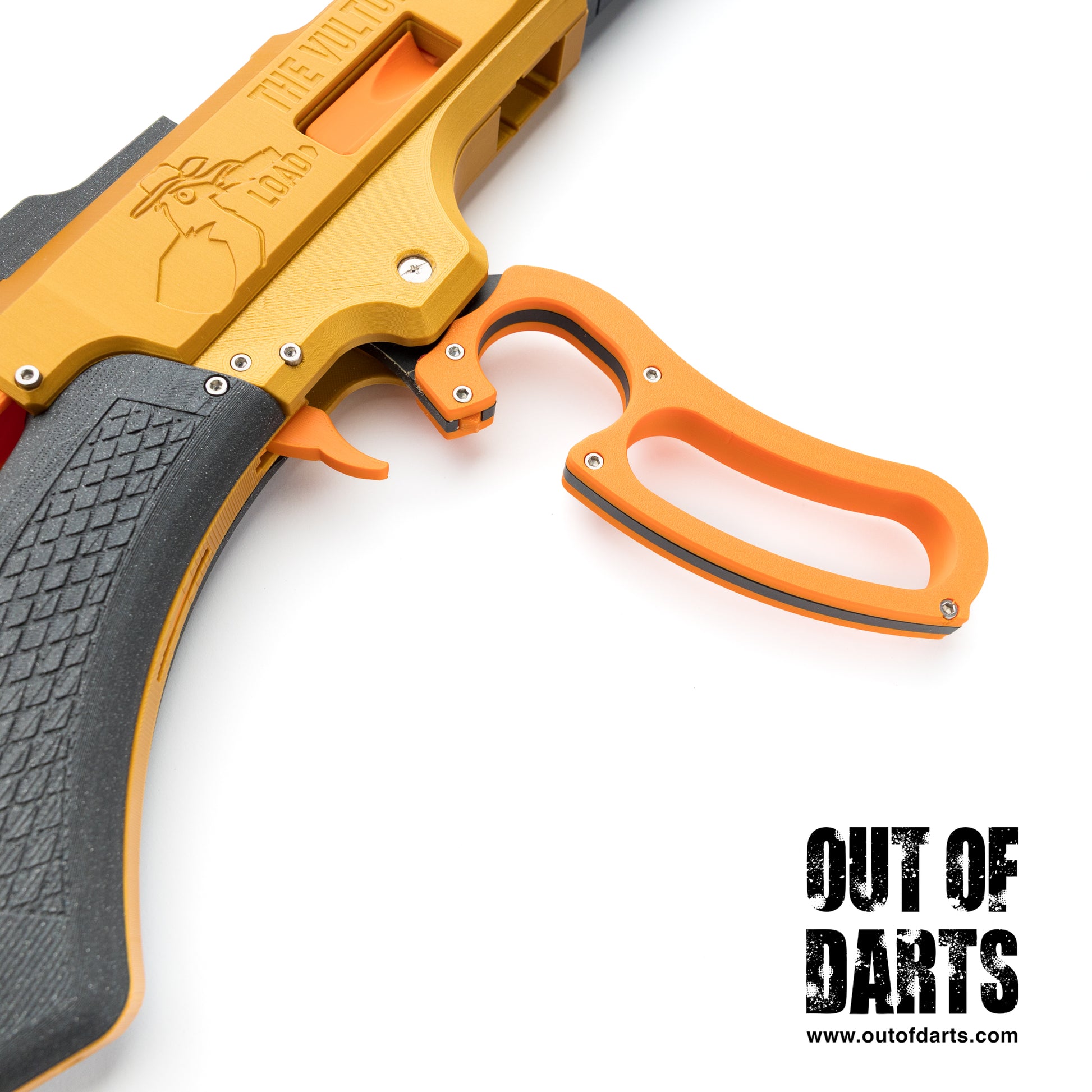

• Black Anodized CNC-milled lever handle and priming bar
• All required build hardware
• 2mL Slug Slym

PERFORMANCE:
Average FPS (Standard Deviation) with a 0.509 x 12in barrel
• 92 (16) FPS with the 1.70 spring + 15mm of spacers
• 119 (8) FPS with the 1.78 spring + 10mm of spacers
• 137 (17) FPS with the 1.83 spring
• 167 (16) FPS with the 1.91 spring
• 196 (10) FPS with the 2.03 spring
• 214 (9) FPS with the 2.16 spring
• 228 (6) FPS with the 2.20 spring + 18mm of spacers

Click here for a complete list of tested performance averages.

SPECS:
• Material: Hardware (Multiple)
• Dimensions: Varies
• Weight: 300g
• Recommended Age: 14+
• SKU: HWK MHP VULTURE

LINKS:
3D Files
• Printables
• MakerWorld

Products
• Recommended Darts
• More Vulture Mods + Accessories
• More By MHP

View full details
  • 5 stars: 10 (83%)
  • 4 stars: 2 (17%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
T
TJ
Awesome!

My first ever build. Came together nicely. Zero issues with he hardware.

J
John V.
Over a nice kit

Cnc parts were nice and clean. Rest of the kit is the standard kit expected from OODs. This is my 5th kit purchased and built from various 3d printed blaster kit. I do believe I was missing or the wrong screws for the sights/ rail were missing. Had m3 kit from my Voron days so no big loss. Video was helpful, just need another second to follow. Lots of back and forth as it was a faster pace than expected.
The only printed parts I had issues getting clean holes was the stock side decorative plates. Tried 3 different prints from two different t brands. Best print was from the U1 with petg interface.

Still a fun build.

R
R.
Fun Build

Kit had all the bits and was well organized. Still working through some feeding and seal issues. Love the way it turned out, will love even more once it's cycling reliabily.

N
Nick P.
Super fun blaster

I loved the idea of this blaster and so ordered the hardware kit. was super easy to assemble and is fun to play with, should be fun to use in battle. I obviously printed my own parts so no fault but my own but I had to smooth out the dart lifter as the darts were not feeding well from the tube into the lifter, but worked great after. Ordered the 2.16 spring and it is hard to prime one handed but not imposible, not feasible to do for long periods of time. Ordered the 1.78 as the 1.83 was out and it is super easy to prime but lack luster on FPS, will have to try a spacer of get one in the middle.

P
Philippe B.
Absolute beaut!

I'm happy OOD built this for me.

Prototyping the brown filament was interesting and it looks AMAZING!

P
Projects i.D.G.
One of the coolest blasters ever!

I loved the build of this blaster and the wide range of FPS make it useable in just about any class. If you are going with the highest FPS be aware that the prime is going to be stiff but not unmanageable. One of my favorite features is the ability to top up the tube mag as you play with darts you pick up.

As a guy who watched maybe a bit too much of the show "The Rifleman" this tickles just the right itch.

A
Albert L.
Good Kit. Small Issues

After following the instructions from Dr. Flux, the build went smoothly except couple of issues. The Heat Set insert for the Left side of the grip, specifically the end where it meets the receiver, its difficult to keep the heat set insert aligned. To resolve this, I added more walls to the part so the heat set insert has less chances of misaligning. Another small issue is the trigger sometimes doesnt reset after its pressed. I reprinted the trigger and the trigger linkage with a smooth PEI plate and iron the top layer to not have rough layers when it rubs against the trigger group. I also lube those areas as well as a good measure.

J
Jeff
Good Stuff

Kit came with everything needed to build the blaster, the anodized aluminum parts were good quality too. The plunger tube was a little rough on the edges so I had to deburr it myself with sandpaper but otherwise nothing to complain about.

As for the blaster itself, I wish there was a better foregrip but that's something that can be remixed. Fun to shoot! I'd recommend the 1.78 spring for indoor play.

C
Cannon H.
great customer service

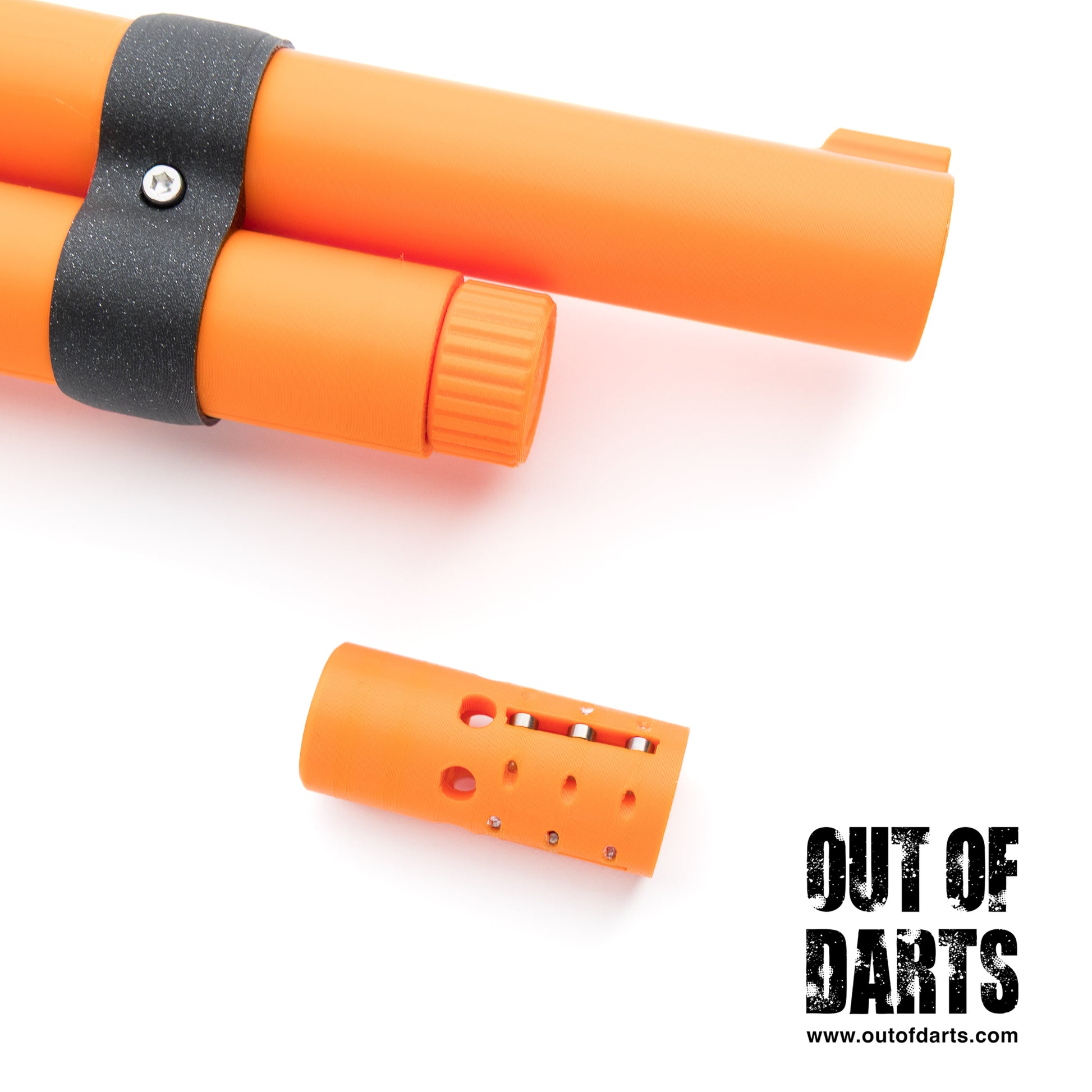

Hardware kit was well organized and packaged. The build video made assembly easy. The BCAR pins were too large, and when I contacted them they quickly sent replacement pins. The vulture has quickly become the favorite in the house.

J
Joshua

This was definitely a worthwhile purchase! Highly recommend, familiar or not, inexperienced or experienced

T
Tony

Shipment was fast and items were organized.

C
Chase

I really like that I got all the parts for the gun. I've 3d printed my own parts so that's a plus. Though I wish there was instructions that could help me out with the build. The out of darts video did help a little but DrLux used many different tools to make it easier to build. But other then that I am quite pleased.
