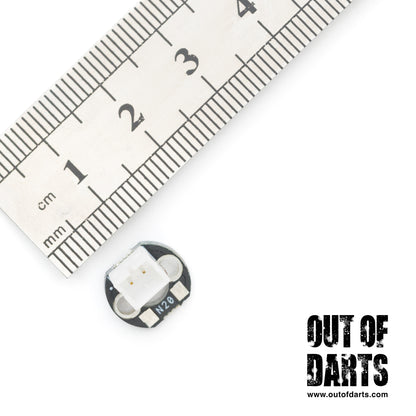

N20 Motor Soldering Board

N20 Motor Soldering Board

Regular price $1.79 USD
Regular price Sale price $1.79 USD
Sale Sold out
Shipping calculated at checkout.

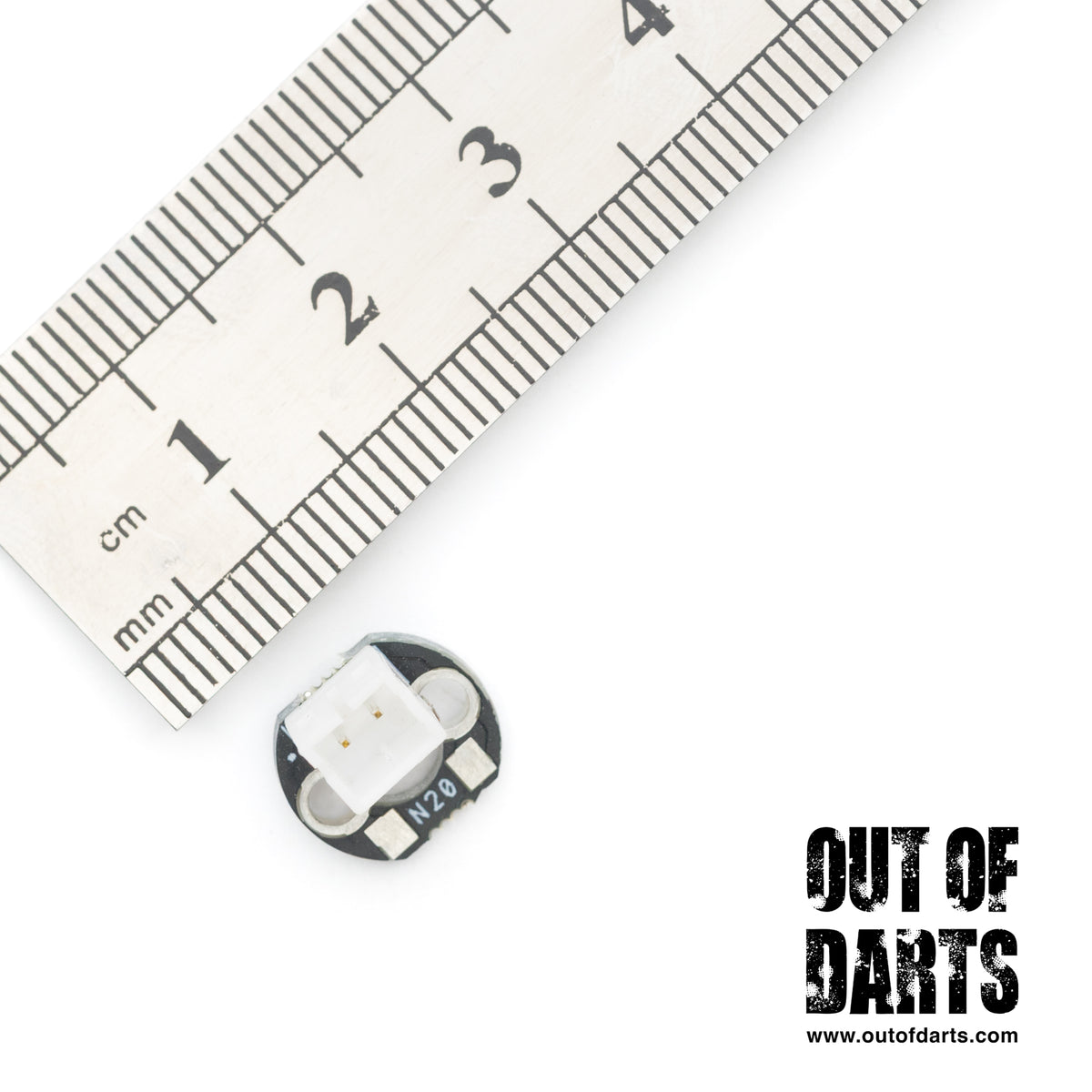

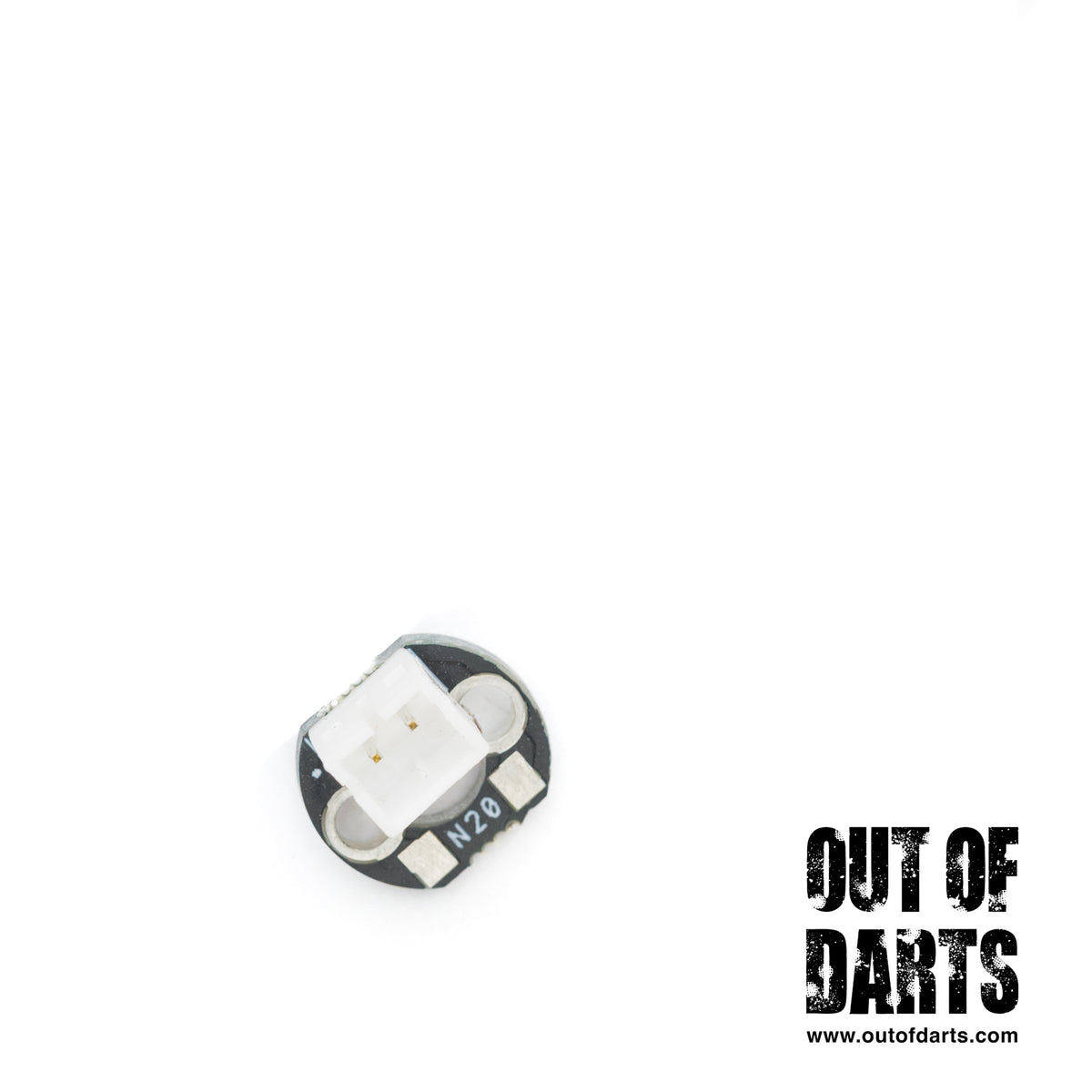

The N20 Motor Soldering Board is a custom printed circuit board originally designed for the OOD Jupiter flywheel blaster. Featuring large pads and a JST PH-M 2.0mm 2-Pin connector, this solder-on adapter makes swapping out N20 gear motors easier for rate-of-fire customization or repair. Compatible with OOD Juno, the Flycore full-auto platform, and select other 3D-printed blasters + mods.

Having trouble finding what you’re looking for? Email us!

FEATURES:
• N20 Motor Soldering Board
• Swappable gear motor PCB
• Customizable full-auto fire rate
• Easy-solder through-hole pads for N20 gear motor.
• Low-profile JST PH-M Connector
• Designed for OOD Jupiter + Juno
• Compatible with OFD Flycore (full-auto)

*Note: Polarity often does not matter with low-voltage switching components, but double-check before installing!

INCLUDES:
• 1 N20 Motor Soldering Board*

* 1 JST PH-F jumper wire is required for full functionality.

SPECS:
• Current: Up to 2A
• Voltage: Up to 3S (~12V)
• JST Pitch: JST PH 2.0mm
• Materials: PCB, Brass, Nylon
• Dimensions: ~7.6 x 5.9 x 4.6 mm
• Weight: 0.13g
• SKU: CONNECTOR JST PH 2.0

LINKS:
• N20 Gear Motors
• JST PH + Jumper Wire

• All Hardware

View full details
  • 5 stars: 5 (71%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 1 (14%)
  • 1 star: 1 (14%)
T
Taylor C.C.
Works like a charm

Makes life easier to install a replacement.

D
Derek W.
Saves the motor, solder like a pro

Let me start by saying I am terrible at soldering. Shockingly bad in fact. I have tremors which makes any type of detail soldering a blasted nightmare and I will likely destroy just about any and all electronics I am working on. Thankfully this board saved my butt repeatedly. I keep spares handy now whenever I'm working on the smaller motors because I love them. I have assembled my own Jupiter's and I plan on doing some other upgrades involving these types of little motors and these boards are crucial. A great little investment to save your work and keep you from pulling out your hair. Bees and some of the other little fiddly creative bits that out of darts has put together have really helped me mod dart guns as well as build the customs. I wouldn't be without them. A small investment that can change your experience from night to day!

R
R.M.
Very useful but I need more and the JST connector link just comes back here.

I love the idea of having several geared N20 motors at various speeds with this little board and JST connector on the back so I can just swap them out with ease. Perfect solution to different ROF on the Jupiter and P-Pack (which I love more than my children JK) BUT... I can't get these anywhere but here and they're out of stock. Also, the link to the JST connector up there under the description, just sends me back to this board, which is out of stock... did I mention that? :D
Yeah, so ...it's a great idea, be nice if the gear was here to make it a reality.
Thanks for making great things, but please please please, if you can, make the parts for the proton pack and Jupiter more available. Thanks again. Great little PCB, does the job 100%

C
Cooper M.
Worked great, until THIS happened....

so it came with my Jupiter, and worked for 3 days, and it made it WAY easier to solder which was great. I don't knownif it was the MOTOR that burned out, or if it was the PCB, soim replacing both. I emailed OOD about this, Luke was very nice and mailed me a new PCB, but a few weeks later, our home workshop was moved around, and the PCB got lost in the moving, because it is so small. It has been 9 months of waiting for this to come back in stock. Fingers crossed!

R
Robert C.
Great

The thing is great works perfectly and great

Recommend to every one

A
Andy H.
Works Great

Huge help haveing this board. Makes soldering wire to the pusher motor it's made for so much easier considering the motor is small with motor leads being so small as well.

C
Customer
Nooo good!

It burned up and melted the blaster and fried the board within 30 seconds of use. Waste of almost $200

Hi, Please e-mail me as I'd love to hear what happened with your order, as I don't see an order under your e-mail or name.

R
Richard M.

Where can I get the JST connector that solders to this? The links in the product description for the "compatible JST" send you back to this page. Searching for the JST plug comes up with no results.

Out of Darts

The image is the old version of the board, the new version has the JST connector already installed.
