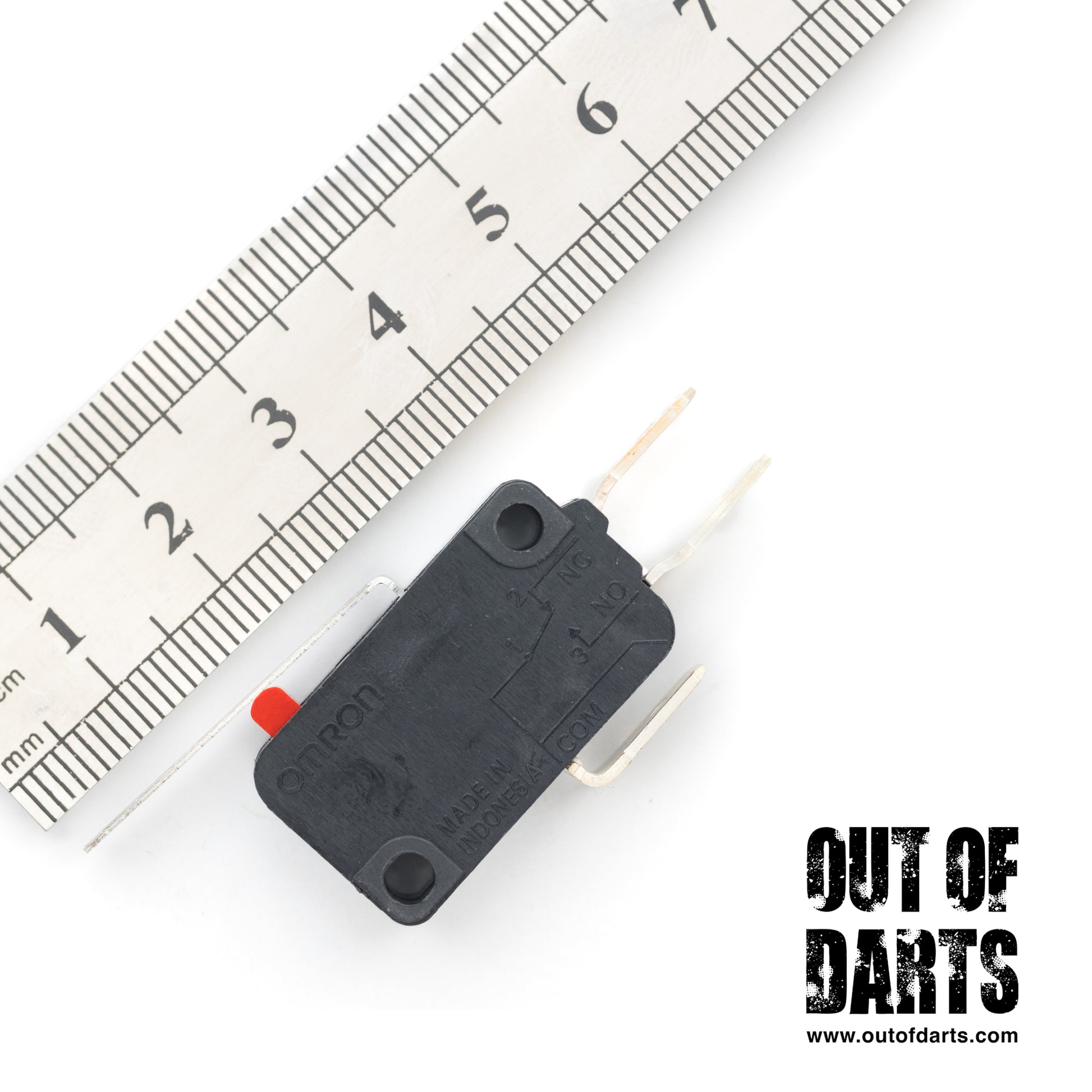

Omron V-Series 21A Lever Microswitch

The Omron V-Series 21A Lever Microswitch is a premium miniature momentary switch designed for high-current use. Featuring a Single-Pole Double-Throw action and oversized solder terminals, this is the easiest component to solder into most electric blaster circuits -- with or without a MOSFET. Additionally, this genuine Omron switch also has a stronger, more tactile click compared to budget switches. Available in a long lever actuator variety that can be modified or removed to suit your modding needs.

Having trouble finding what you’re looking for? Email us!

FEATURES:
• Genuine Omron V-Series 21A Microswitch
• Premium miniature snap action switch
• Single-Pole Double-Throw
• Stronger tactile click
• 3.9N operating force!
• Easiest to solder
• No MOSFETs required!
• Customizable / removable long lever
• Compatible with all hobby motors

INCLUDES:
• 1 Genuine Omron 21A Switch

SPECS:
• Type: Miniature Snap Action
• Terminals: SPDT
• Current: Up to 21A continuous
• Voltage: Over 4S (16V)
• Wiring: up to 14 AWG
• Cycles: 100,000
• Materials: Silver-plated copper-zinc, PET/PBT
• Dimensions: 37.8 x 21.9 x 10.3 mm
• Weight: 7.35g
• SKU: SWITCH 21A OMRON_V-212-1C6
