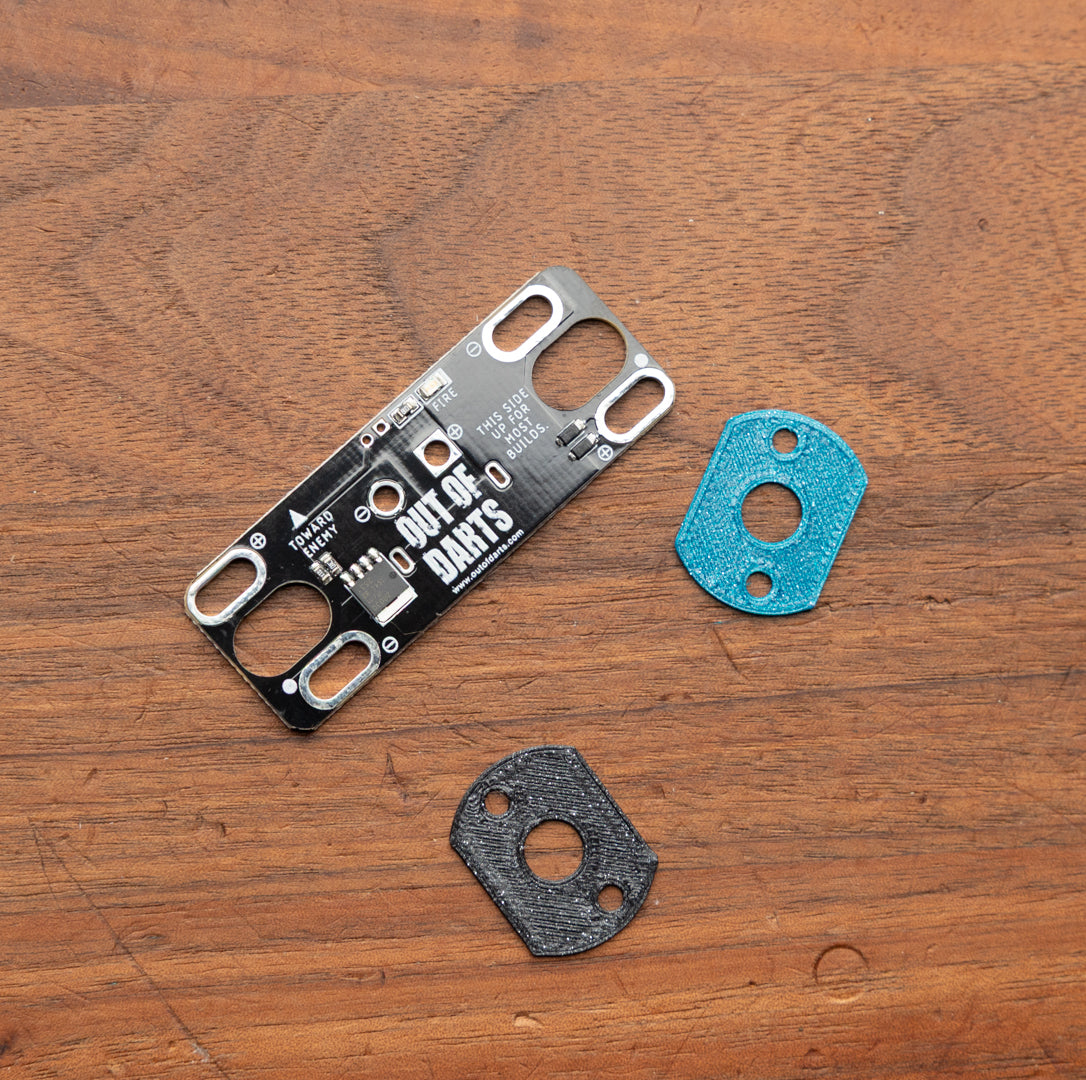

OOD MOSFET Span Board v3.0

The OOD MOSFET motor spanning board is the old v3.0 span board PCB that's built to make stock flywheel blasters as easy to mod as possible! There’s no need to replace your rev switch; the MOSFET isolates it from the higher voltage components! The board features an optional XT-60U board connector and standard solder terminals, allowing greater flexibility when rewiring your blaster.

This used product is an unused customer return and is in like-new condition.

FEATURES:
• MOSFET Span Board
• Designed for Out of Darts
• Solder to motors directly, then to stock switch and battery terminal
• Trigger by connecting a switch to the two smaller terminals
• For use in most flywheel dart blasters
• Includes 3D-printed spacers to prevent shorts
• Optional XT60U makes cage swapping and maintenance easier
• Compatible with all standard flywheel cages
• Not compatible with canted/tilted cages
• Not compatible with PWM boards

Note: When installing, match red dots on your motors to the dots on the board.

INCLUDES:
• 1 MOSFET Span Board*
• 2 3D-printed motor spacers

SPECS:
• Condition: Used - like-new
• Material: Printed Circuit Board
• Rating: 1 pair (2) 130-sized brushed motors*
• Compatible Crush: 37-44mm (shaft-to-shaft)
