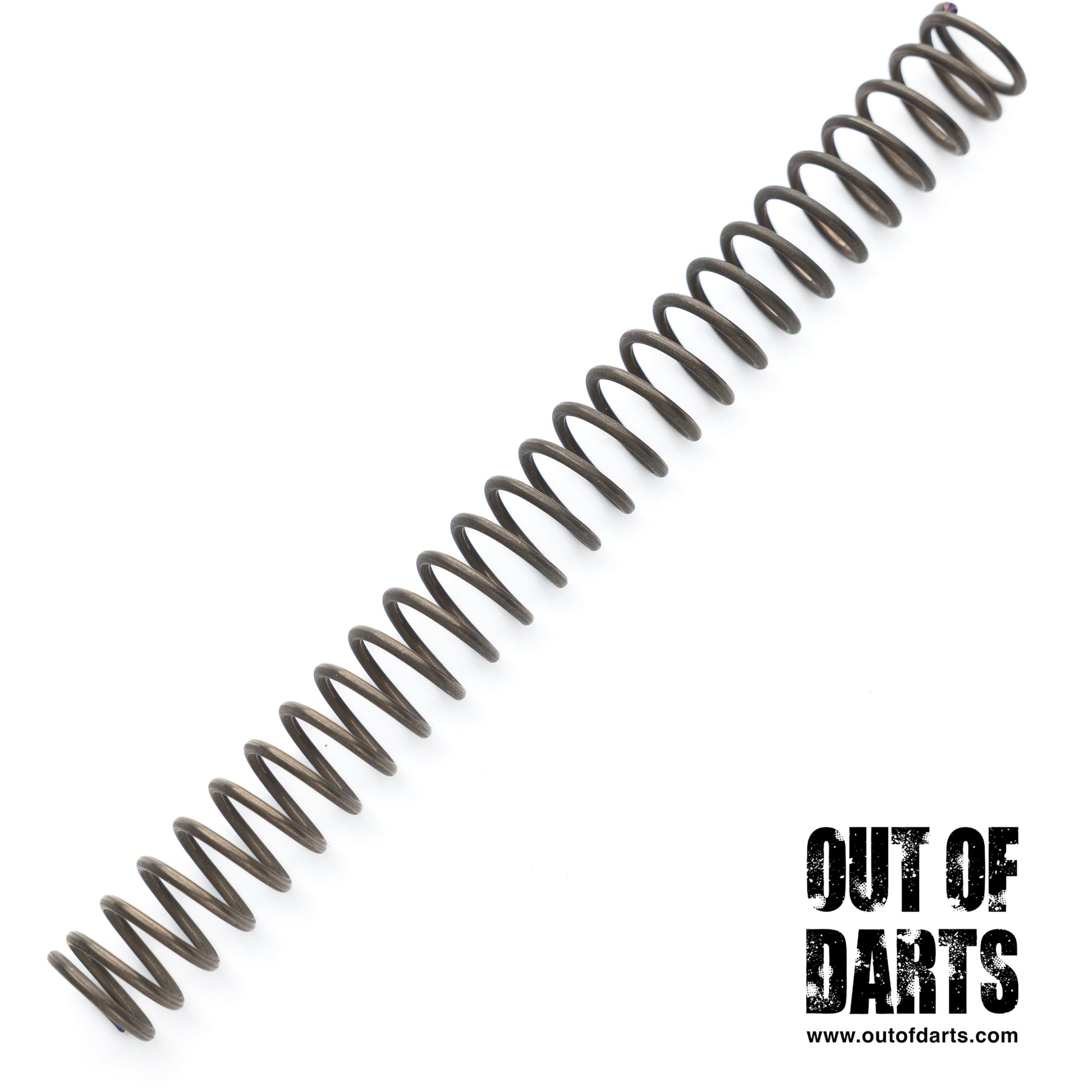

Piston Pump Springs
Piston Pump Springs
These springs are all the current compatible springs available to tune the performance of the X Shot Pro-Series Motorized Piston Pump AEB. This selection of springs offers a broad range of options, allowing you to fine-tune your blaster for various game types. While the stock blaster achieves upward of 160 FPS, these springs can be easily swapped out to fine-tune your blaster's velocity.
FEATURES:
• Piston Pump Springs
• Fine-tune the performance of your AEB
• Full spring tuning sets available!
• Lower the FPS of your Piston Pump
• More spring options on the way!
INCLUDES:
• 1 Spring of your choice
or
• 1 set of 4 springs for a discount!
PERFORMANCE:
Average FPS (Standard Deviation) with the 12.9 x 225mm barrel
• 53 (20) FPS with a 1.40 x 160mm spring
• 80 (17) FPS with a 1.50 x 160mm spring
• 118 (10) FPS with a 1.57 x 160mm spring
• 141 (8) FPS with a 1.65 x 160mm spring
• 164 (4) FPS with the stock 1.7 x 160mm spring
Check our full spreadsheet of chronograph statistics!
SPECS:
• Material: USA-made spring-tempered steel
• Type: Compression Spring
• Dimensions:
Spring Gauge: 1.40-1.83mm
Length: 160mm
Outer Diameter: 16mm
Coils: 27
• Squared: at least one end
• Weight: Varies
• SKU: Varies
LINKS:
• Aluminum Barrels
• More X-Shot AEB Mods + Accessories
• More Springs
Share

Useless for me
You purchased a downgrade spring intended for very low FPS games.
Works well.
Bought the 183 (3) FPS - 1.78 x 160mm spring, and while it did meet the 180-ish FPS at the start, after only a couple weeks, it was down to shooting just as hard as the stock spring that came with the blaster (159 FPS). I don't know if the other springs will have this problem, but I was certainly hoping it would keep its power a little longer.
Hello Grant,
We are sorry you had a negative experience with our Piston Pump 183 Spring. By chance, do you deprime your blaster in between play sessions? If this spring is left primed for an extended period, its performance will degrade. You can always email orders@outofdarts.com for a refund or a new spring.
easy install. crony says it does just as advertised
Works great
- 5 stars: 6 (35%)
- 4 stars: 1 (6%)
- 3 stars: 2 (12%)
- 2 stars: 1 (6%)
- 1 star: 7 (41%)
The 203 spring was perfect... The performance beats my expectation, can't wait for a restock to get a few more for my other builds
Don’t buy the 213fps … it will just kill your blaster…… wonder did OOD even test the spring…… really disappointed
Hello Bryan,
Thank you for reaching out. We are sorry you had a bad experience with our piston pump upgrade springs. We did all of our testing with our review models sent to us from X-Shot and had no issues. We have removed this item from the site while we do more testing. If you haven't already, please contact orders@outofdarts.com so that we can process a refund for you.
Useless for me
You purchased a downgrade spring intended for very low FPS games.
Works well.
Bought the 183 (3) FPS - 1.78 x 160mm spring, and while it did meet the 180-ish FPS at the start, after only a couple weeks, it was down to shooting just as hard as the stock spring that came with the blaster (159 FPS). I don't know if the other springs will have this problem, but I was certainly hoping it would keep its power a little longer.
Hello Grant,
We are sorry you had a negative experience with our Piston Pump 183 Spring. By chance, do you deprime your blaster in between play sessions? If this spring is left primed for an extended period, its performance will degrade. You can always email orders@outofdarts.com for a refund or a new spring.
easy install. crony says it does just as advertised
Works great
My friend told me there used to be a 203 fps spring but it seems to not be here
Hi, We've discontinued this spring as it was causing damage to some blasters.
After firing one mag I could hear the spring was too strong for the blaster, then I took out the spring to see that it bent at a 45 degree angle. Put the original spring back and it worked fine.
Hello,
I'm sorry to hear one of our Springs caused you issues. Please send us an email at orders@outofdarts.com so that we can resolve this.
Piston Pump Springs
Was a little skeptical after reading some of the reviews for the 213 springs. But after using the 203 spring at two different events I can say that it works great! A little rate of fire dropoff, but that is to be expected. Mine hits at around 195-198 with the classic long EX BCAR 2.
I purchased the 80fps spring which IMO powers down the blaster too much to the point of old nerf days. I highly recommend stick to stock and whenever they come out with a 120FPS or 130FPS to get those. Do not bother with high FPS springs. The blasters internals are not designed with that in mind and will be putting extra wear on the gearbox.
Thanks for the feedback! We have opted to pull the high FPS versions and instead only offer lower powered springs. This will ensure that nobody breaks their blaster in the upgrade.
Dont buy the 213 spring I shot it once and knew something was wrong. Out of darts usually has 10/10 products but this one is an epic failure
Thank you for reaching out. We are sorry you had a bad experience with our piston pump upgrade springs. We did all of our testing with our review models sent to us from X-Shot and had no issues.
We have removed this item from the site while we do more testing. If you haven't already, please contact orders@outofdarts.com so that we can process a refund for you.
From my own personal experience, I purchased the 203 fps spring, and it has not destroyed my blaster so far. I have not checked to see if the spring has deformed, but I've been firing it a decent amount with no issues spring-wise. The only thing I will say about it is that it was extremely difficult to fully insert into the blaster because of the tension. I personally have not had any blaster-breaking problems with the 203 fps spring, but I may have gotten lucky based on other reviews. All of the bad reviews I have seen have been for the 213 fps spring though, so I will be holding off on that one entirely. Use at your own risk.
Thanks for the feedback. We've since pulled the listing for the high-FPS springs and only reommend downgrading springs for various FPS goals.
I've been a customer of OOD for over a year, some of their products have slight problems or quality of life issues that are easily looked over or rectifiable. This is NOT one of them. I purchased the cut 213 fps spring and it is extremely unsafe, trying to put the spring in the blaster under optimal conditions nearly took out one of my eyes, once I finally managed to safely apply it into the blaster (cut side down), a single shot put the entire blaster into battery and jammed it.
I had to take my entire blaster apart to unjam the spring, which resulted in pieces flying everywhere. The battery is also seemingly inert now, working on fixes for that.
If you're trying to improve the FPS of your blaster, use a longer barrel or (maybe) spacers? But do NOT under any circumstance purchase this item. Extremely disappointing and HAZARDOUS.
Hello Steven,
Thank you for your feedback. We are sorry you had a bad experience with our spring upgrades. We have removed this item from the site and are looking to refund customers. Please contact orders@outofdarts.com so that we can process a refund for you.
I love what OOD does for the hobby, but after I pulled the trigger once with the 213 fps spring, it from what I’ve been informed by others, killed the battery as a safety feature. Just doesn’t make any sense. Would love to get high performance out of the MPP. Hope this gets fixed for future users.
Hello Eli,
Thank you for your review. We are sorry you had a bad experience with one of our products. We have removed this item from the site while we do more testing. Please contact orders@outofdarts.com so that we can process a refund for you.
I ordered the set of 5 springs to install in my piston pump. The two springs that are stronger than stock came with cut ends instead of flat and immediately destroyed themselves on first prime in the blaster.
The only spring that has some use was the 80 fps spring but required a much smaller barrel (45mm) for the darts to not flop out the end like an obese male into a swimming pool.
I had hoped that someone had test fit these onto the blaster at the very least, but that doesn't seem to be the case and I feel like a guinea pig.
Overall, do not recommend any of the 5 springs, better off sticking with stock and shortening the barrel if you want lower fps..
We're sorry you've had a bad experience with these springs. We'd be happy to offer a full refund or replacement as needed. All of the springs have been tested by us here at the shop.
